Chapter 2 - Installing the Yamaha CRW4260t Drive

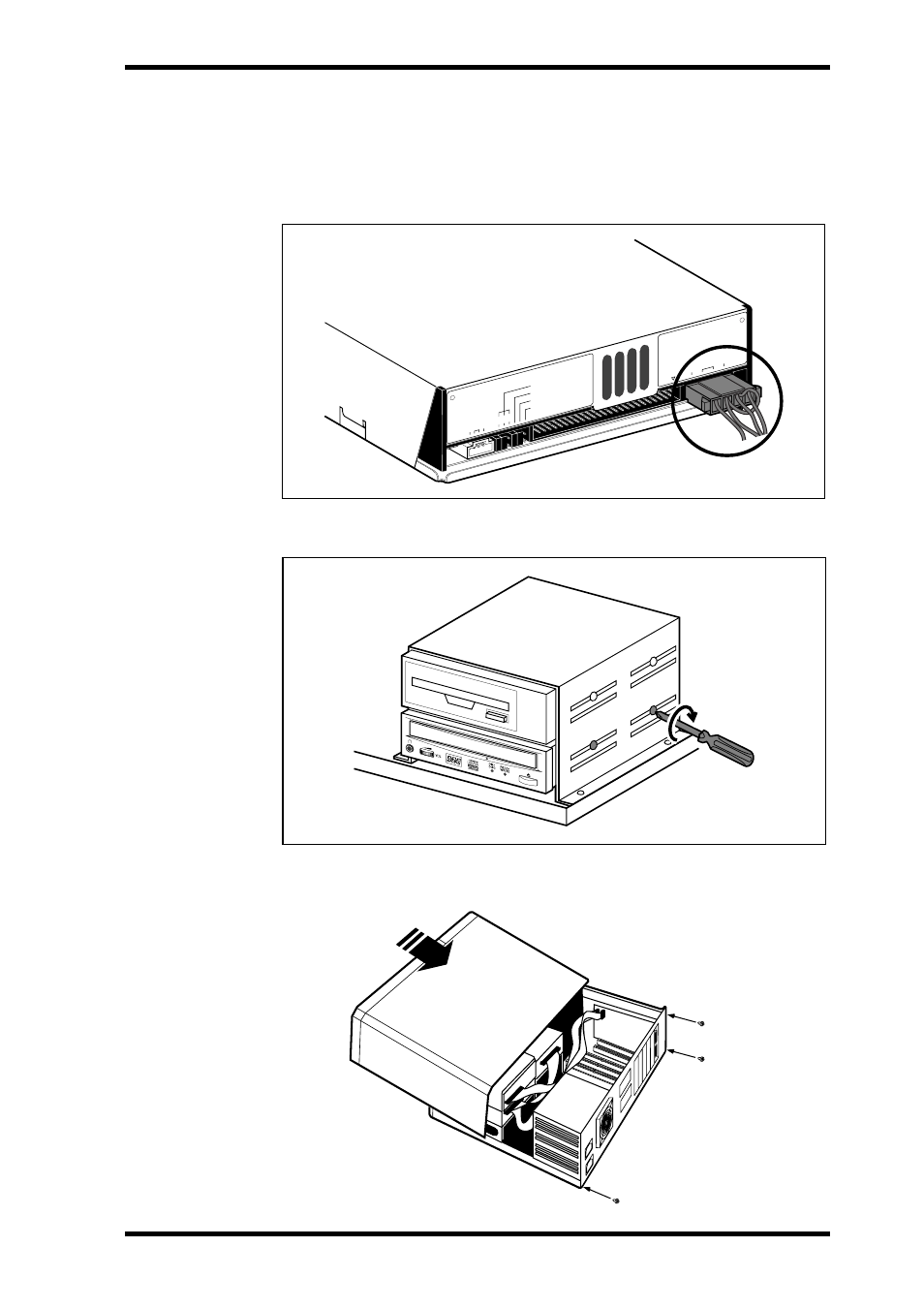

9. Connect the power supply cable.

Connect the +12V and +5V 4-pin power cable to the power supply
interface located on the rear panel of the CRW4260t drive.
The shape of the connector makes it impossible to reverse the connections.

10. Tighten the four fastening screws securely.

11. Attach the cover of your computer.
