GB-4
HB2302 / HBZ2602
2. Specification

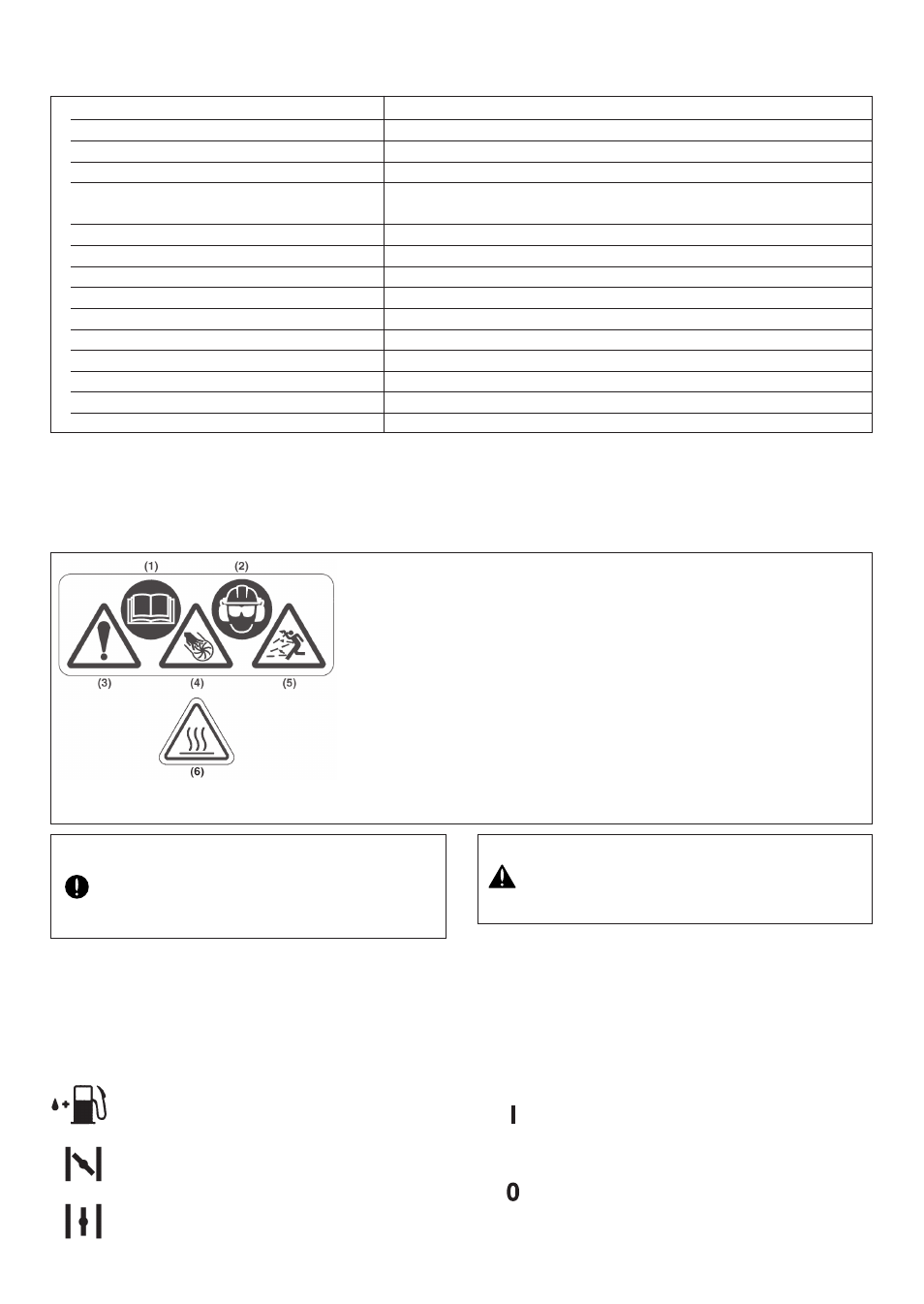

3. Warning labels on the machine
For safe operation and maintenance, symbols are carved
in relief on the machine. According to these indications,
please be careful not to make a mistake.
Never modify your machine.
We won’t warrant the machine, if you use the
remodeled blower or if you don’t observe the
proper usage written in the manual. If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the required
location(s).
(1) Read owner's manual before operating this machine.
(2) Wear head, eye and ear protection.
(3) Handling this machine improperly could result in accidents caus-
ingserious injury or death. Read this manual carefully and prac-
tice using the blower until you are fully acquainted with all op-
erations and have learned to use it correctly.
(4) Severing of fingers or hand by fan blade
Do not open or remove safety guards or nets while engine is
running.
(5) Thrown or blown object
Stay a safe distance from the machine.
(6) Hot surface
Avoid contact the hot surface during and immediately operation.
4. Symbols on the machine
The port to refuel the “MIX GASOLINE”
Position: FUEL TANK CAP
The direction to close the choke
Position: AIR CLEANER
The direction to open the choke
Position: AIR CLEANER
The direction to the start of ignition switch
Position: IGNITION SWITCH ON THE CON-
TROL HANDLE
The direction to stop the engine
Position: IGNITION SWITCH ON THE CON-
TROL HANDLE
Model HB2302 HBZ2602
Dimesion (L x W x H) ** 327 x 225 x 360 327 x 269 x 360
Dry weight* kg 3.9 4.2
Fuel tank capacity liter 0.75 0.65
Engine Type
Air cooled Strato-charged air cooled
2-cycle gasoline engine 2-cycle gasoline engine
Displacement cm 3 22.5 25.4
Air filter Dry polyurethane foam
Carburetor Diaphragm, rotary valve type
Ignition system T.C.I. C.D.I.
Spark plug Champion RCJ6Y (Noise-proof) NGK CMR7H (Noise-proof)
Muffler Spark arrester equipped
Operating Engine Speed rpm 2300 to 7600 2800 to 7600
Fuel consumption liter/h 0.80 0.58
Air Volume* cu.m/min. 10 10
Max. Air Velocity* m/sec. 55 55
* with standard pipe ** without pipe
Specifications are subject to change without notice.
Keep all children, bystanders and help-
ers 15meters away from the machine.
