Yard Machines 769-00872A - Manual (Page 62)

E22

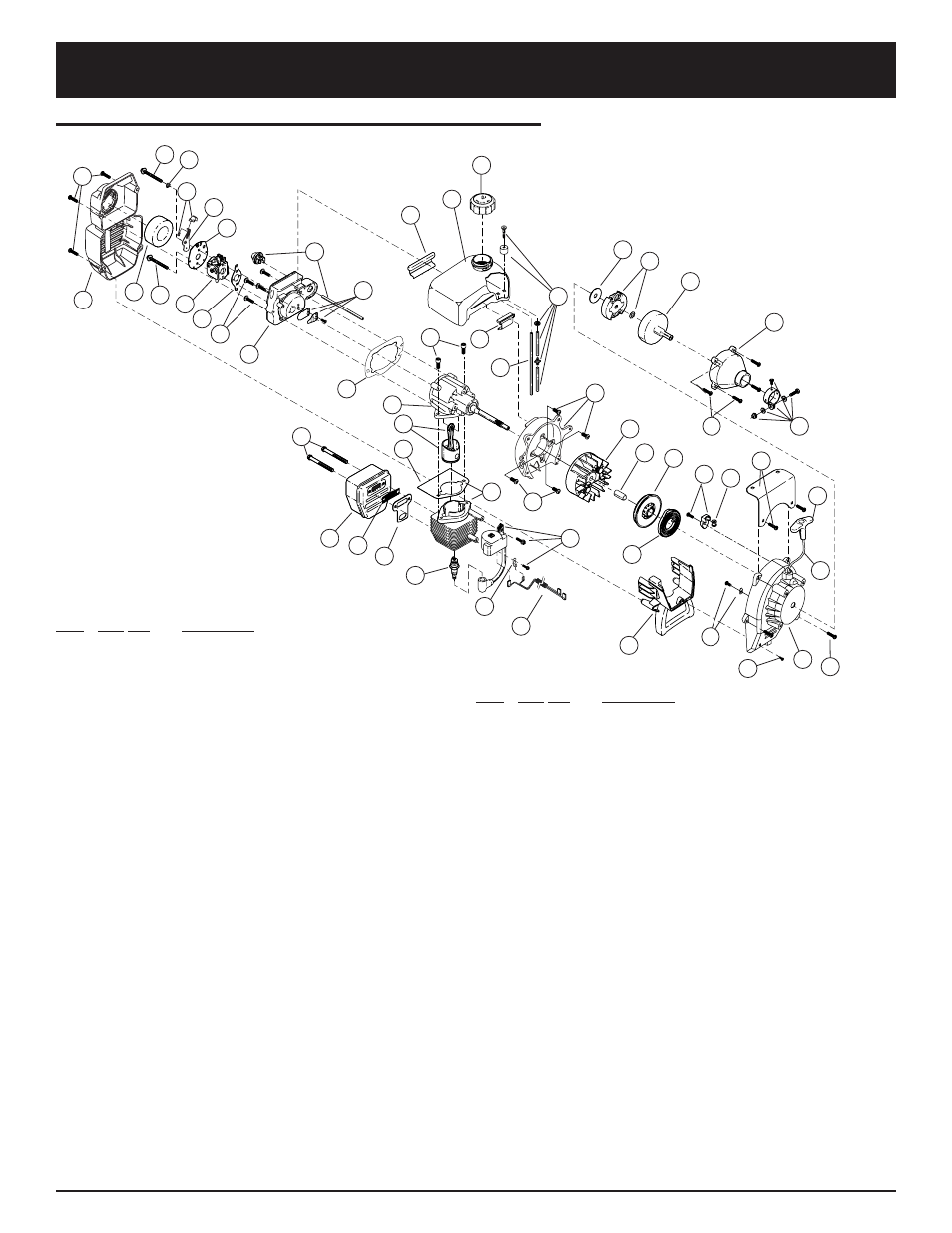

PARTS LIST
Item Part No. Description
1 791-182059 Air Cleaner/Muffler Cover Assembly
(includes 2 & 41)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw Assembly
4 791-180226 Wavey Washer
5 791-182161 Choke Knob & Screw
6 753-04418 Choke Lever Assembly (includes 5)
7 753-04419 Choke Lever & Plate (includes 6)
8 753-04333 Carburetor Assembly (includes 9 & 20)
9 791-610675 Carburetor Gasket
10 791-181860 Carb Mount Screw
11 791-683974B Primer and Hose Assembly
12 753-1196 Carb Mount Assembly (includes 10 & 13)
13 791-684451 Reed Assembly
14 753-1208 Carburetor Mount Gasket
15 753-04369 Crank Case Service Assembly
(includes 10 & 23)
16 791-612134 Rear Mounting Pad
17 753-04306 Fuel Tank Assembly (includes 18-20)
18 791-182438 Fuel Cap Assembly
19 791-181086 Fuel Return Line
20 791-682039 Fuel Line Assembly
21 791-145308 Front Mounting Pad
22 791-683065 Shroud Assembly
23 791-181861 Shroud Screw
24 791-182064 Shroud Extension and Stand (includes 40)
25 791-182736 Flywheel Assembly
26 791-181065 Spacer
27 753-04232 Recoil Pulley Assembly
28 791-613102 Recoil Spring
29 791-180930 Pulley Retainer Assembly
30 791-611061 Rope Guide
31 791-180317 Fuel Tank Guard Assembly
32 791-181079 Pull Handle
33 791-613103 Rope
34 791-181912 Housing Screw
Item Part No. Description
35 791-181900 Starter Housing Assembly
(includes items 27-30, 32-34 & 40)
36 791-182368 Clutch Washer
37 791-182369 Clutch Rotor Assembly
38 791-153592 Clutch Drum Assembly
39 791-180098 Clutch Cover Assembly (includes 40)
40 791-181345 Clutch Cover Screw
41 791-153597 Upper Clamp Assembly
42 753-04337 Module Assembly (includes 52)
43 791-182880 Wire Lead
44 791-610311B Spark Plug
45 791-182174 Muffler Assembly (includes item 46-48)
46 753-04159 Exhaust Gasket
47 791-182747 Spark Arrestor
48 791-147575 Muffler Mounting Bolt Assembly
49 753-04323 Cylinder Assembly (includes items 51 & 52)
50 753-04367 Piston & Rod Assembly
51 753-1197 Cylinder Gasket
52 791-182723 Cylinder Bolt
53 791-611063 Ground Tab
* 753-04134 Engine Gasket Kit
* 791-180090 O.E.M. Carburetor Repair Kit (Zama)
* 791-180091 Gasket-Diaphragm Repair Kit (Zama)
* 753-1209 Piston Ring
* 753-04359 Short Block Assembly
(items 10, 15, 23, 44, 48-51)
* 791-181599 Clutch Springs (Qty. 2)
* not shown
41
1
2 3
8
10
12
3
4
5
7
6
11
13
14
15
50
51
19
52 21
16
17
18
20
36
37
38
39
41 40
31
32
25
26
27
29
40
33
35
34
29
24
43
28
42
49
44
46
45
48
24
30
22
9
47
53
ENGINE PARTS - YM CULT
2-CYCLE GAS CULTIVATOR
