14

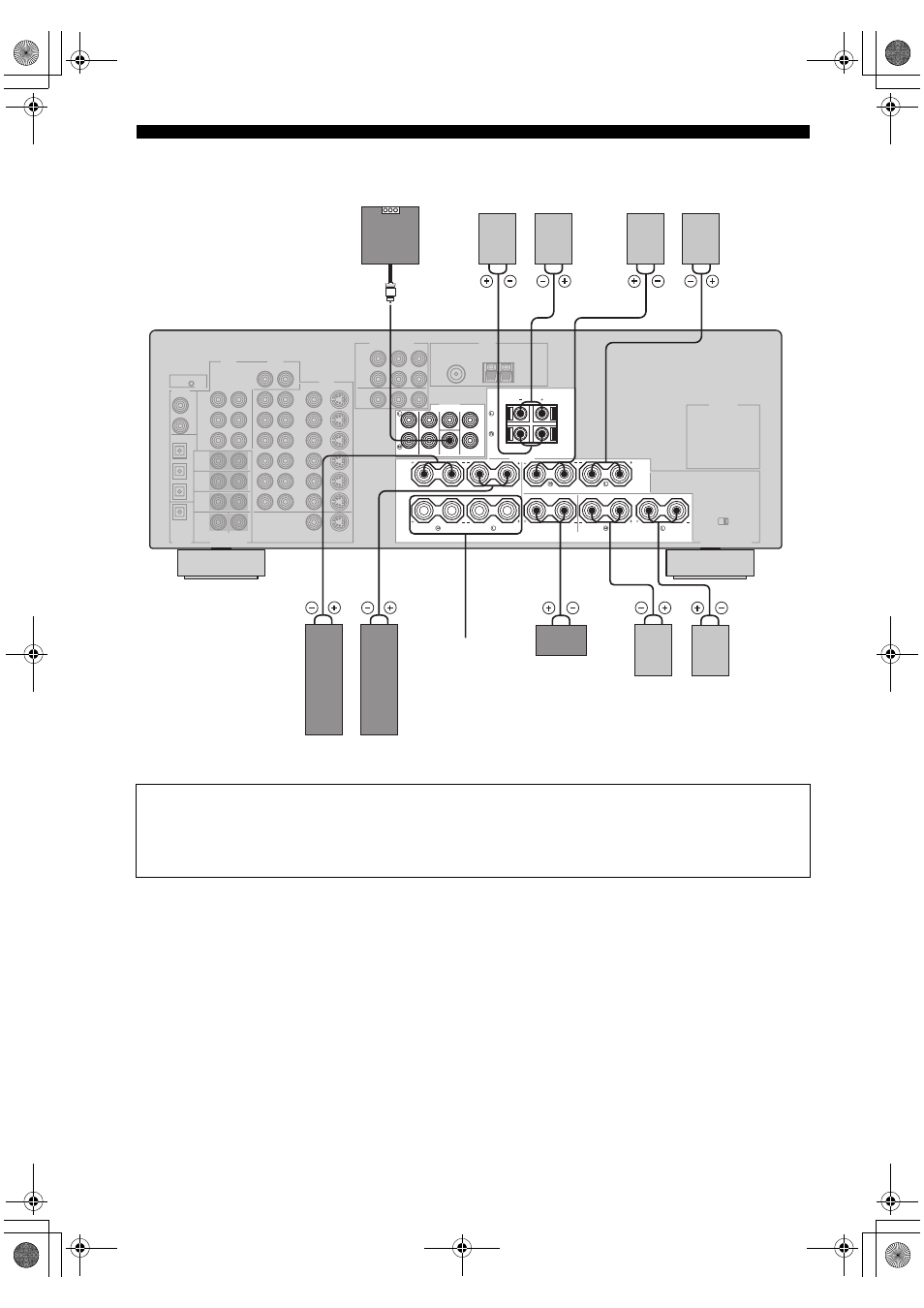

SPEAKER SETUP
FRONT
SUB
WOOFER
FRONT
A
B
CENTER
PRE OUT
SURROUND SURROUND BACK
PRESENCE
/ZONE 2
SPEAKERS
SURROUND
CENTER SURROUND BACK
2 3 1
6 7 1 0 9 8
4 5
Subwoofer
system
Center
speaker
Front speakers (A)
Surround back
speakers
Left Right
Left Right
Surround speakers
Front
speakers
(B)
(RX-V750)
Left Right
Left Right
Presence speakers
You can connect both surround back and presence speakers to this unit, but they do not output sound simultaneously.
• The surround back speakers output the surround back channel included in Dolby Digital EX and DTS-ES software and only
operate when the Dolby Digital EX or DTS-ES decoder is turned on.
• The presence speakers output ambient effects created by the DSP sound fields. They do not output sound when other sound fields
are selected.
