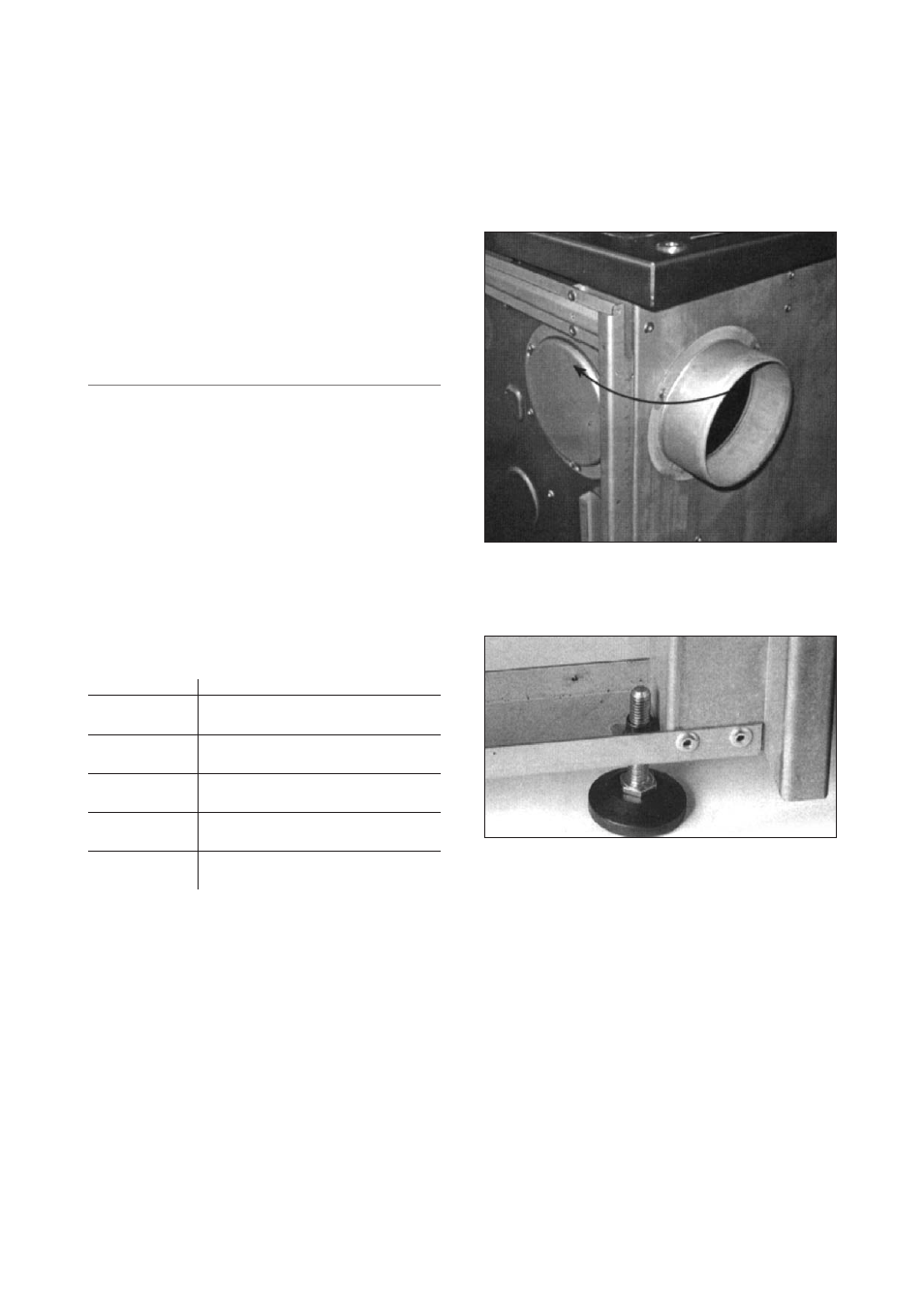

1.5 Decide it the installation is to be top, rear or side flue
exit, and fit and seal, with fire cement, the flue collar
and blanking plate to suit. The flue collar attaches to
the cooker backplate or top plate with fixings supplied.
The blanking plates are fixed to the unused flue outlets
with fixings supplied.
1.6 Lift the cooker into position on the prepared hearth
area, taking care not to damage the hearth finish.
1.7 Level cooker using adjustable feet.
1.8 Connect the cooker to the chimney system, using
Stovax enamelled flue pipe and seal the connecting
joints. Typical top, rear or side flue connections are
shown.
1.9 Provision must be made to clean the flue/chimney after
the cooker is installed, as it is not possible to clean
through the cooker when it is installed.
1.10 Provision should be made for flue debris collection and
cleaning when the cooker is installed.
INSTALLATION INSTRUCTIONS
Because each installation is unique to the property, it is not
possible to give full details to suit every setting. However the
installation should comply with the requirements of the
Building Regulations and be made using “best practice”
construction methods.
Remember that many fireplace openings will have a
supporting lintel. Do not remove this without making
provision to support the remaining structure of the building.
The Solid fuel cooker must not form any part of the
supporting structure.
1. INSTALLING THE COOKER
1.1 Remove all packing and temporary transportation
fixings from the Solid fuel cooker, check that no parts
have been left inside the cooker.
1.2 Take care handling the cooker as it is possible damage
the enamel finish. The hot plate area may be removed
to reduce the weight, but take care not to damage any
seals, and beware of any sharp edges when handling the
cooker or any parts.
1.3 If the cooker is to be placed between combustible work
surfaces and cupboards the optional, insulating, side
panels must be fitted.
Stovax Part No. Description
YM-CKSPWH Yeoman SF Cooker Insulation
Panel 5cm White
YM-CKSPBL Yeoman SF Cooker Insulation
Panel 5cm Blue
YM-CKSPGR Yeoman SF Cooker Insulation
Panel 5cm Green
YM-CKSPPB Yeoman SF Cooker Insulation
Panel 5cm Pebble
YM-CKSPINT Yeoman SF Cooker Integral
Insulation Panel
1.4 The clearance to any side wall and the firebox side of
the cooker should be a minimum of 50mm, to allow the
firedoor to open fully.
