ESSENTIALS
OUTDOOR
WA
LL
CYPRESS
MODEL
SIZE
NET WIDTH
PERFORMANCE*
Single Internal Blower - CBI-600B
Dual Internal Blower - PBI-1100A
External Blower - CBE-1000
In-Line Blower - PBN-1000A
COLOR
Stainless Steel
FEATURES
Controls
Speed Levels
Auto Delay-Off
Lighting
Dual-Level Lighting
Filters
Recirculating Option
Duct Cover Extension
High Quality Stainless Steel
DUCT SPECIFICATIONS
Vertical - Single/Dual
External /In-Line
AC INPUT
AC POWER**
Hood Only
OPTIONAL ACCESSORIES
Duct Cover (12”)
Protective Cover
AK7836ASX
36”
35 15/16”
240 - 600 CFM, 1.8 - 6 Sones
500 - 1100 CFM, 3.5 - 8 Sones
1000 CFM, Sones NA
1000 CFM, Sones NA
SS
Rocker switch
2
No
Halogen, 35W x 2
No
Baffle x 3
No
NA
304S
6” / 10”
10”
120V - 60Hz
Max. 70W, 0.58 Amps
AK0736AS
AK0636AB
42”
41 15/16”
240 - 600 CFM, 1.8 - 6 Sones
500 - 1100 CFM, 3.5 - 8 Sones
1000 CFM, Sones NA
1000 CFM, Sones NA
SS
Rocker switch
2
No
Halogen, 35W x 2
No
Baffle x 3
No
NA
304S
6” / 10”
10”
120V - 60Hz
Max. 70W, 0.58 Amps
AK0742AS
AK0642AB
48”
47 15/16”
240 - 600 CFM, 1.8 - 6 Sones
500 - 1100 CFM, 3.5 - 8 Sones
1000 CFM, Sones NA
1000 CFM, Sones NA
SS
Rocker switch
2
No
Halogen, 35W x 3
No
Baffle x 4
No
NA
304S
6” / 10”
10”
120V - 60Hz
Max. 105W, 0.87 Amps
AK0748AS
AK0648AB
AK7842ASX
AK7848ASX
Min. height 30” from cooking surface.
Mounting Heights
Max. height 36” from cooking surface.
*Requires purchase of Zephyr blower, sold separately. **AC power listed above is for hood with lights only. See blower specs on our website for more AC power details.

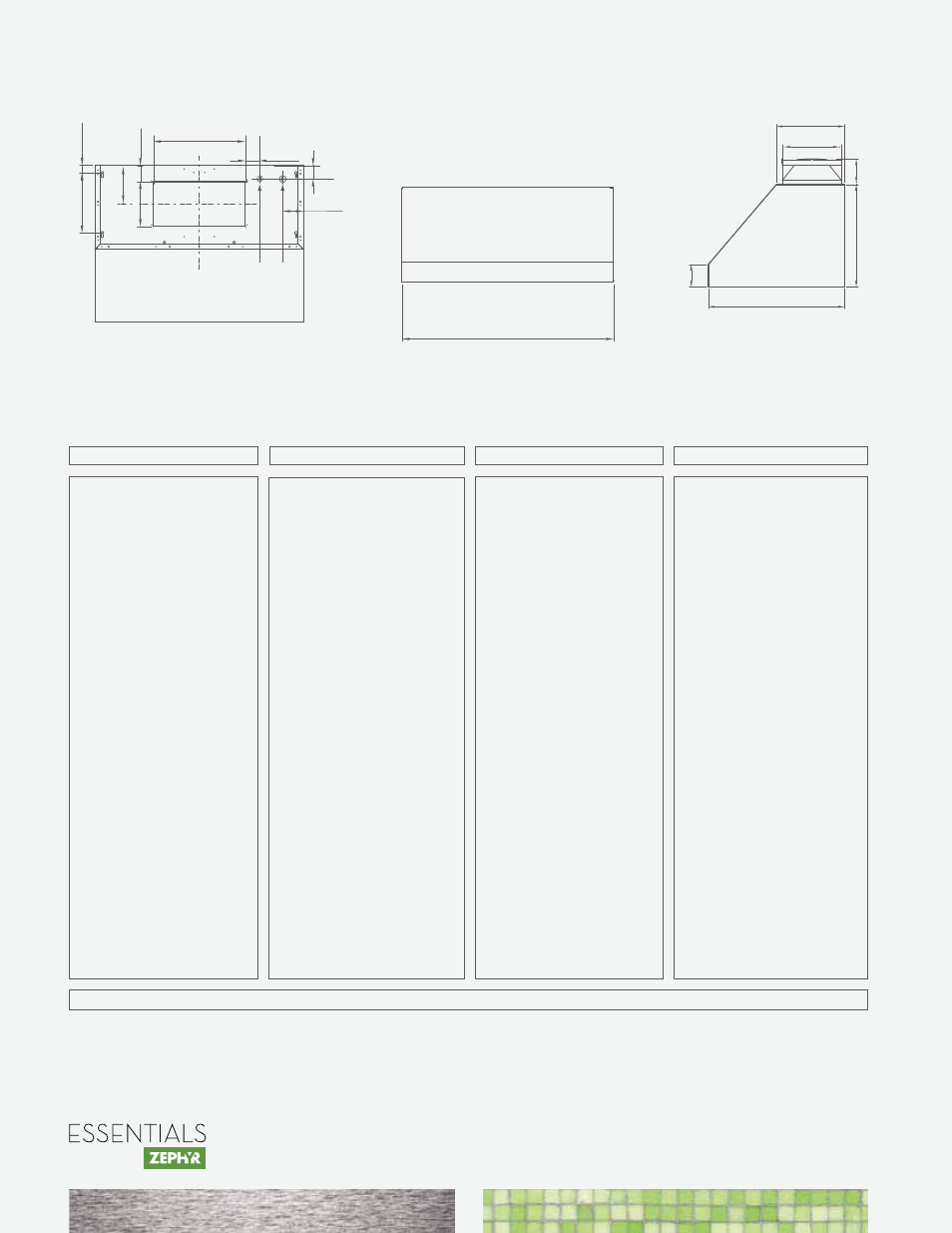

35 15/16” (36”)
41 15/16” (42”)
47 15/16” (48”)
1 1/8”
8 9/16”
13 3/16”
2 5/16”
6 7/16”
2”
2 1/16”
C L
5 9/16”
ext
blwr
k/o
elec
k/o
2 11/16”
Top
Front
12”
*10 ”
27”
4”
18”
Side
4 5/16”
*10” transition used with dual,
external and in-line blowers.
