Building in, Installation, Building over a cupboard or drawer – Zanussi ZBE 602 User Manual

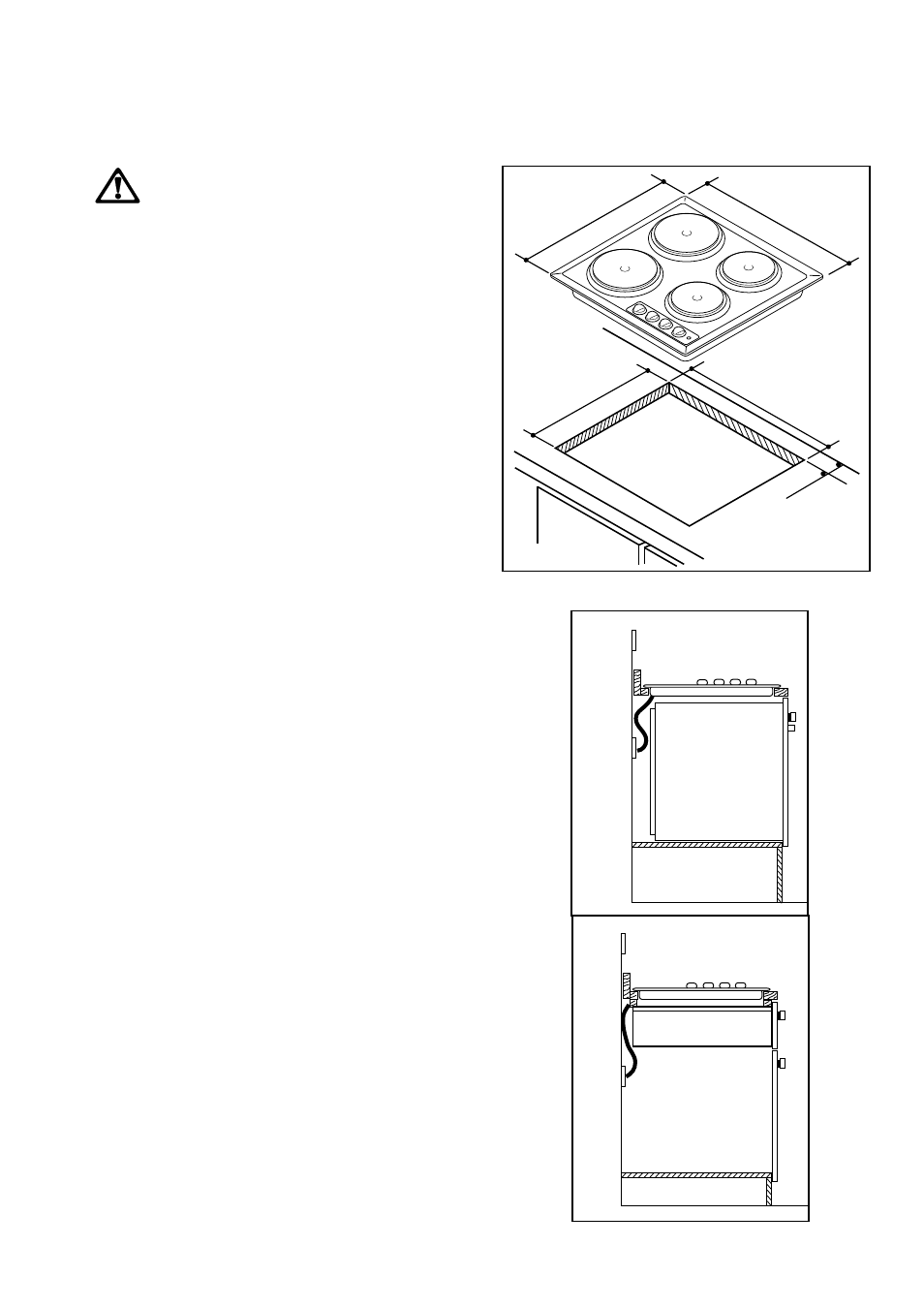

Page 11: Cut out size
12
560
480
580
510
55 min.
Building In
ON/OFF SWITCH
FLEX
OUTLET
ON/OFF SWITCH
FLEX
OUTLET
FO 0763
FO 0764
1
2
Building over a cupboard or drawer
If the hob is to be installed above a cupboard or
drawer it will be necessary to fit a heat resistant board
below the base of the hob on the underside of the
work surface.
It is also recommended to carry out the electrical
connection to the hob as shown in diagrams 1 and 2.
FO 2230
Rectangular cut-out size for hob
Installation
IMPORTANT
This hob must be installed by qualified
personnel to the relevant British Standards.
The manufacturer will not accept liability,
should the above instructions or any of the
other safety instructions incorporated in
this book be ignored.
Cut Out Size
The dimensions of the cut-out are given in the
diagram.
