GB-3
G
B
PSZ2600
2. Specification

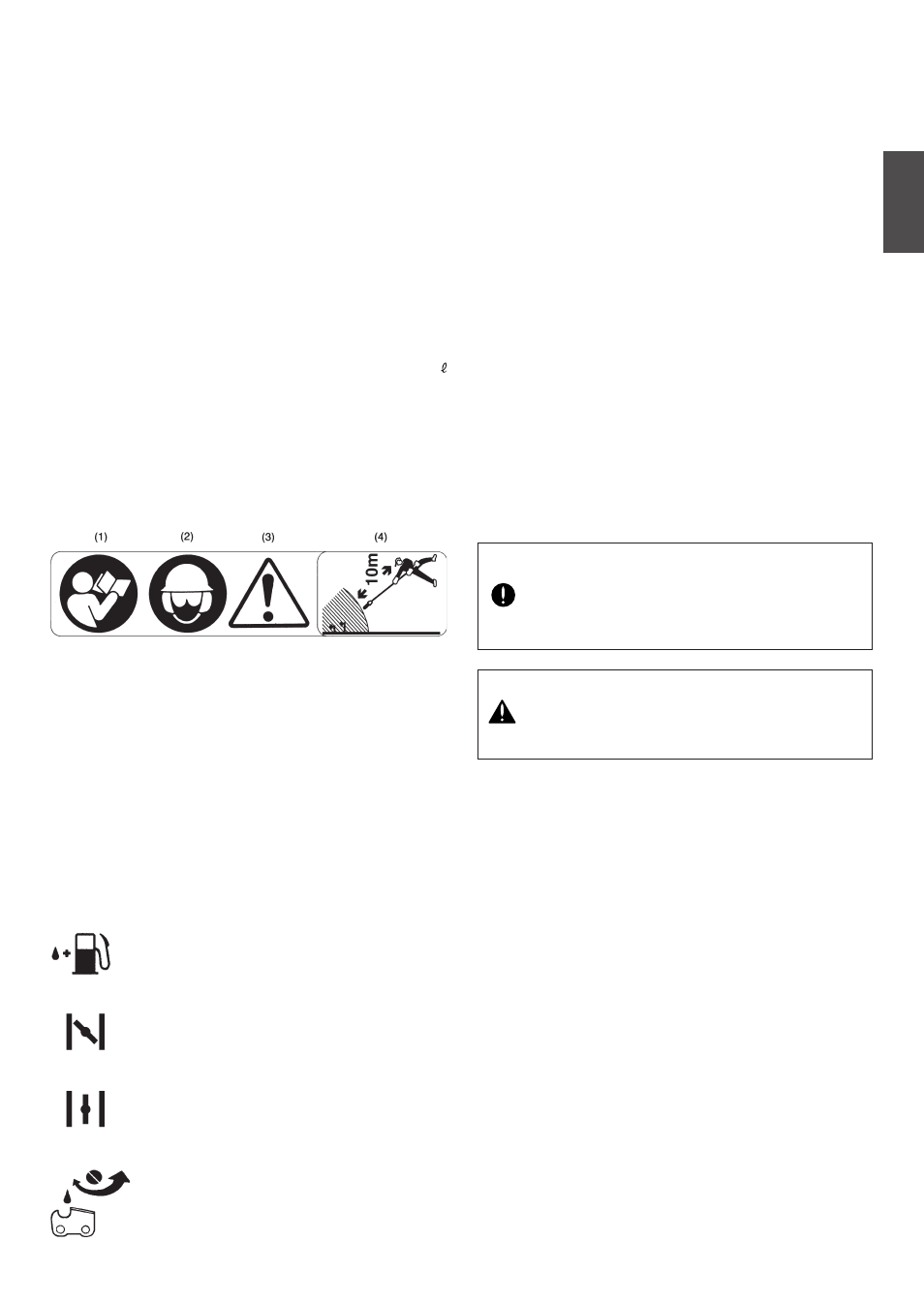

3. Warning labels on the machine
Never modify your machine.
We won’t warrant the machine, if you use the
remodeled pruner or if you don’t observe the
proper usage written in the manual.
If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the required
location(s).
(1) Read owner's manual before operating this
machine.
(2) Wear head, eye and ear protection.
(3) Warning/Attention
(4) The unit has not been designed to provide
protection from electric shock in the event of
contact with overhead electric lines.
MIN MAX
The port to refuel the “MIX GASOLINE”
Position: FUEL TANK CAP
The direction to close the choke
Position: AIR CLEANER COVER
The direction to open the choke
Position: AIR CLEANER COVER
If you turn the rod by screwdriver follow the arrow to the “MAX” position, the chain oil flow more, and
if you turn to the “MIN” position, less.
Position: Bottom of the TRANSMISSION
For safe operation and maintenance, symbols are carved in relief on the machine. According to these indications,
please be careful not to make a mistake.
4. Symbols on the machine
PSZ2610
Overall size (L x W x H) ................ 2085 x 250 x 310mm
Dry weight ........................................................... 5.40kg
Engine
Type ................... Air-cooled 2-stroke gasoline
Model .................................... Zenoah GZ25N
Displacement ................................... 25.4cm
3
Max. output .. 1.2Hp (0.9kW) at 7500min-1(rpm)
Idle speed .................... 3000±200min-1(rpm)
Fuel .................... Mixture (Gasoline 50 : Oil 1)
(when using ZENOAH genuine oil)
Carburetor ............... Walbro Diaphragm type
Spark plug ................................. NGK CMR7A
Fuel tank capacity ................................................. 0.65
Transmission ................................... Centrifugal clutch,
Rigid power transmission shaft
Reduction ratio ....................................................... 0.94
Cutting head
Guide bar
Type .............. OREGON DOUBLE GUARD
Size .................................... 10(25) in.(cm)
Saw chain Type ........................... OREGON 90SG39X
Pitch x Gauge . 3/8x0.043 (9.53 x 1.07) in.(cm)
Sprocket .................................................................... 7T
Oil pump ................................................... Plunger type
Standard Accessories
Harness ................................................................ 1 pc.
Tool Kit .................................................................. 1 pc.
Guide bar cover ................................................... 1 pc.
Specifications are subject to change without notice.
