Zenoah T3002-95911 - Manual (Page 2)

Waist Pad
Band
Switch Wires

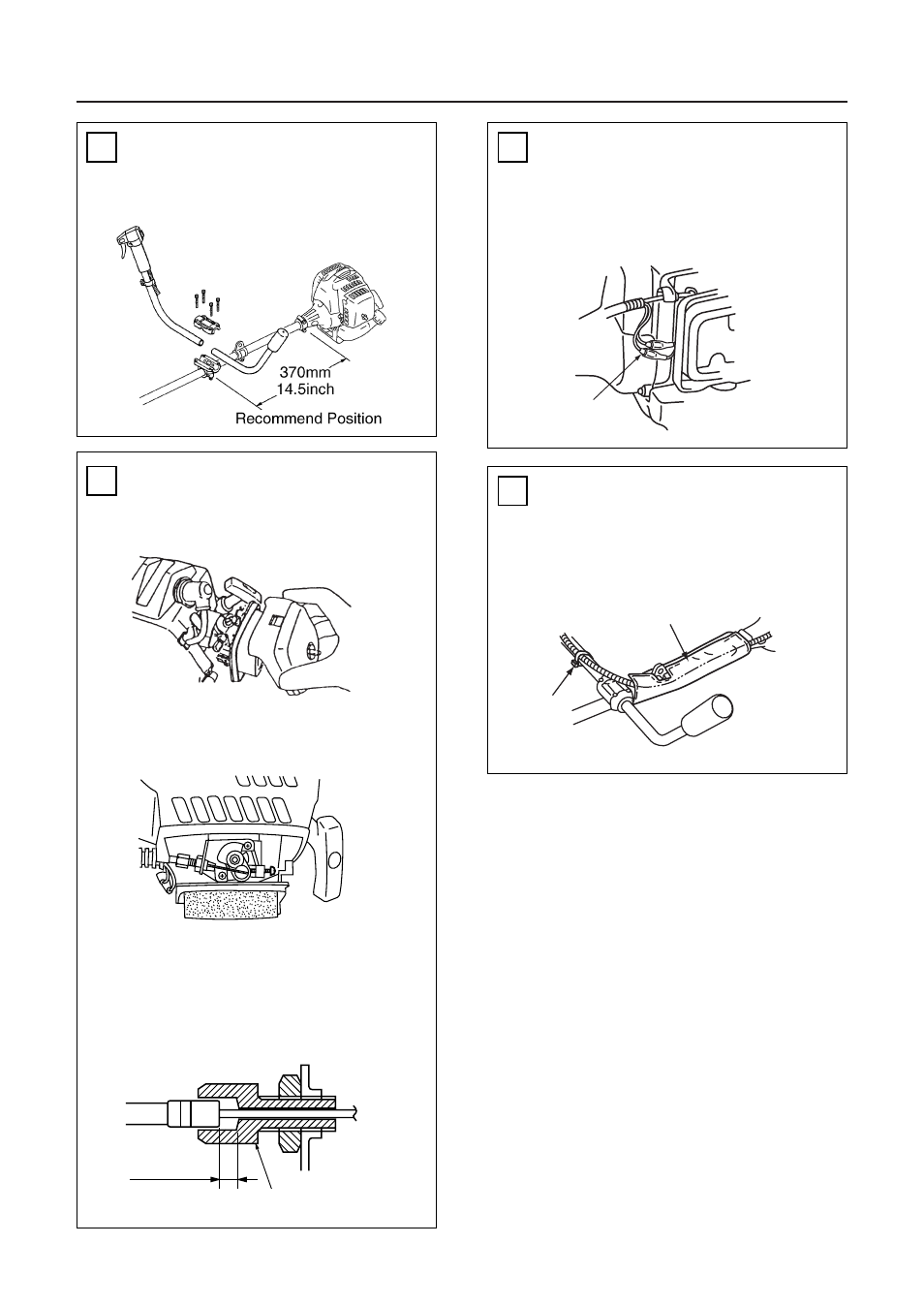

Manual For W-HANDLE Kit
• Wrap the waist pad around the shaft
tube and the throttle wire.
PUTTING ON WAIST PAD
• Connect the switch wires between the
engine and the main unit. Pair the
wires of the same color
CONNECTING SWITCH WIRES
CONNECTING THROTTLE WIRE
TO THE CARBURETOR
ADJUSTING THROTTLE CABLE
• The normal play is 1 or 2mm when
measured at the carburetor side end.
Readjust with the cable adjuster as
required.
2. Connect the end of the throttle wire to
the joint on the top of the carburetor.
1. Remove the air cleaner cover.
Mount the handle to the shaft tube and
clamp it at your best operating position.
.04 in
(1~2mm)
Cable Adjuster
1
2
3
4
