Converting To Side Discharge
If your unit is equipped with a side discharge chute, you
can convert to a side discharge mower as follows:
• Lift the rear discharge door and install the mulching
baffle. See Figure 11.
• On the side of the mower, lift the mulching plug.
See Figure 12.
• Slide the two hooks of the side discharge chute
under the hinge pin on the mulching plug assembly
as shown below. Lower the side mulching plug.
• Do not remove the side mulching plug at any time,
even when you are not mulching.

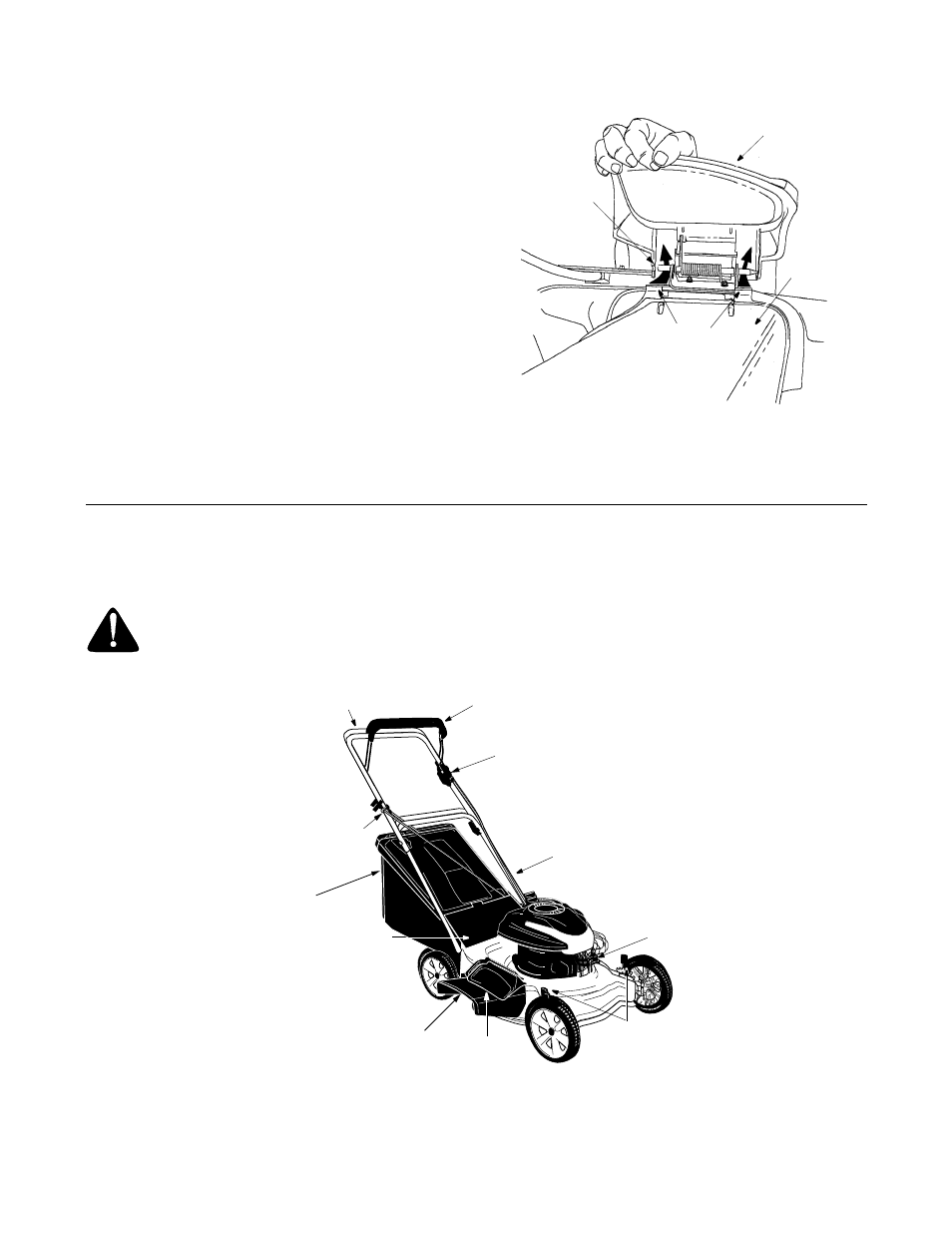

Figure 12
SECTION 4: KNOW YOUR LAWN MOWER
Compare the illustration in Figure 13 with your lawn mower to familiarize yourself with the location of various
controls and adjustments.
WARNING: The operation of any lawn mower can result in foreign objects being thrown into the
eyes, which can result in severe eye damage. Always wear safety glasses or eye shields. We
recommend wide vision safety mask for over spectacles or standard safety glasses.
Figure 13
Hinge Pin
Mulching Plug
Hook
Deflector
(Slide hooks under the two
sides of hinge pin)
Upper
Handle Blade Control Handle
Spark
Plug
Rope
Guide
Rear
Discharge
Door
Lower
Handle
Throttle Control
(If equipped)
Side Discharge
Chute
Mulching
Plug Adjustment Lever
Cutting Height
Grass
Catcher
