TECHNICAL SPECIFICATIONS
DIMENSIONS Height 85 cm
Width 60 cm
Depth 60 cm
ELECTRICAL CONNECTION Voltage/Frequency 220-230 V/50 Hz
Max. power absorbed 2200 W (10A)
DRYING CAPACITY Cotton, linen 5 kg
Synthetics 2 kg
ENERGY CONSUMPTION: Cotton, linen 3.8 kWh (5 kg store dry)
Cotton, linen 3.0 kWh (5 kg iron dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

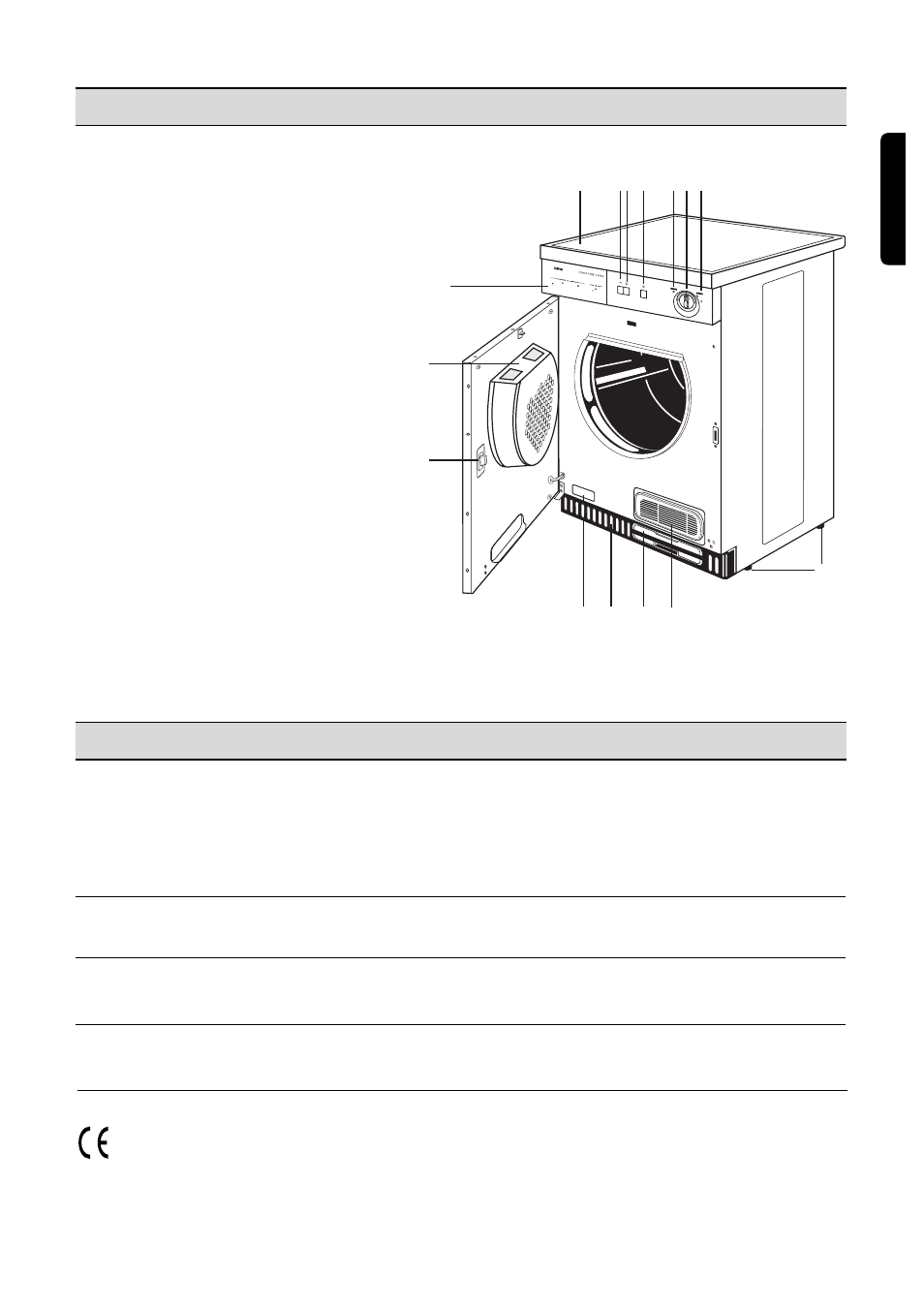

DESCRIPTION OF THE APPLIANCE
0 1 Top cover
0 2 Programme chart
0 3 Door opening button
0 4 Low temperature button
0 5 Start button
0 6 “Water container full” light
0 7 Drying time selector dial
0 8 Mains-on light
0 9 Fluff filter
10 Lock
11 Rating plate
12 Ventilation grid
13 Water container
14 Condenser
15 Adjustable feet
11 14
15
1 3 4 5
10
12
6 8 7
2
9
A U T O R E V E R S E
kg 2
kg 1 650
45' - 55'
25' - 35'
kg 5
kg 2,5 800 / 900 85' -105'
45' - 60' 1000 / 1200
75' - 100'
40' - 55' 800 / 900 110' - 130'
60' - 75' 1000 / 1200
100' - 125'
55' - 70'
