15
English
B
ASIC OPERA
TION
AD
V
ANCED OPERA
TION
APPENDIX
INTR
ODUCTION
PREP
ARA
TION

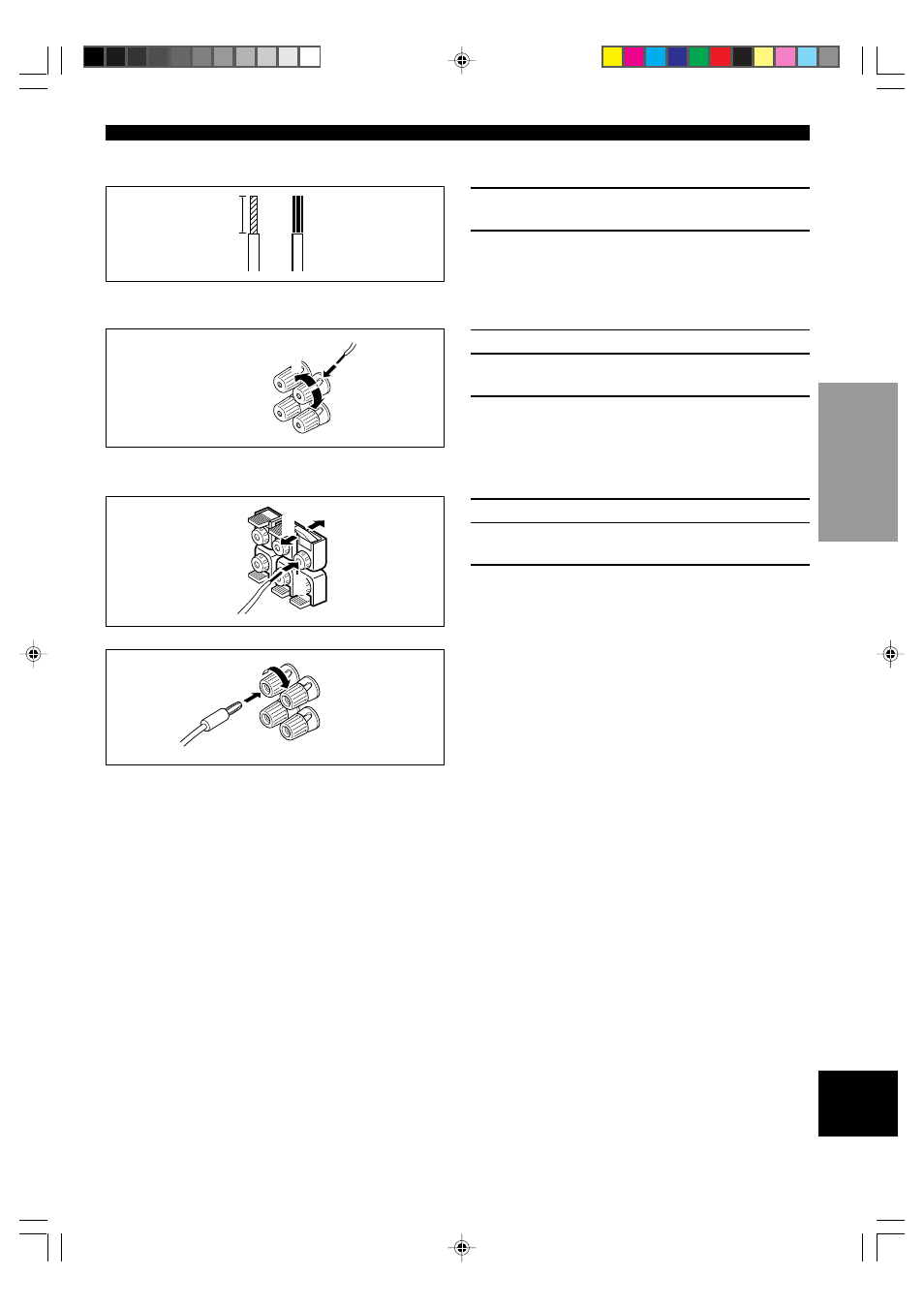

■ Speaker cables
1 Remove approx. 10 mm (3/8”) of insulation
from each of the speaker cable.
2 Twist the exposed wires of the cable together
to prevent short circuits.
■ Connecting to the MAIN SPEAKERS terminals
1 Unscrew the knob.
2 Insert one bare wire into the hole in the side of
each terminal.
3 Tighten the knob to secure the wire.
■ Connecting to the REAR and CENTER SPEAKERS terminals
1 Open the tab.
2 Insert one bare wire into the hole of each
terminal.
3 Return the tab to secure the wire.
y
Banana plug connections are also possible. Simply insert the
banana plug connector into the corresponding terminal.
CONNECTIONS
10 mm (3/8”)
2
1 3
Red: positive (+)
Black: negative (–)
2
3
1
Red: positive (+)
Black: negative (–)
