G415AVS
GB-6

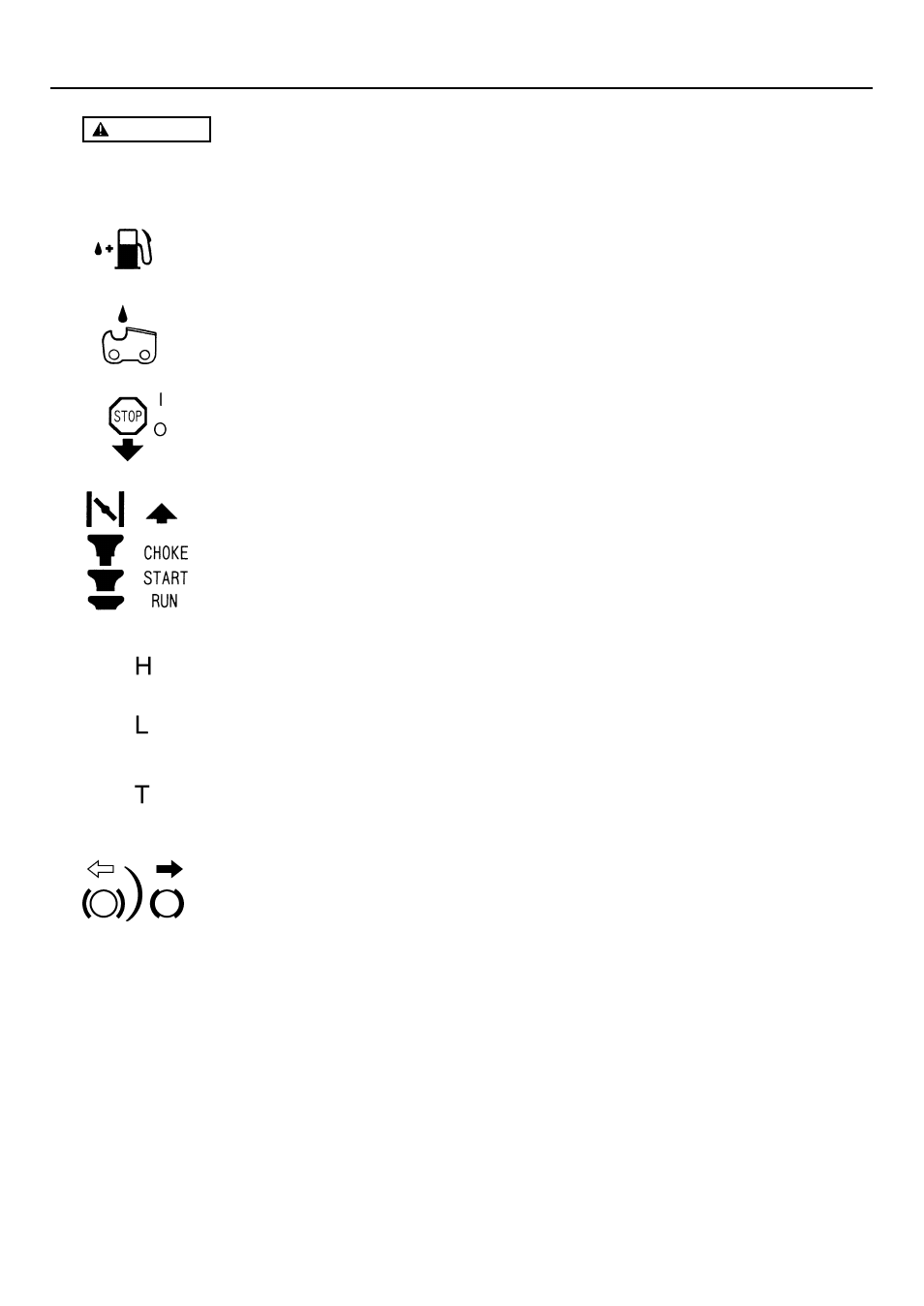

2. Explanation of Symbols on the Machine
WARNING
For safe operation and maintenance, symbols are carved in relief on the machine.
According to these indications, please be careful not to make any mistake.
The screw under the “H” stamp is The High-speed adjustment screw.
The port to refuel “MIX GASOLINE”
Position: Fuel cap
The port to top up chain oil
Position: Oil cap
Setting the switch to the “ | ” position, the engine starts.
Setting the switch to the “O” position, the engine stops immediately.
Position: Rear-left of the unit
Starting the engine. If you pull out the choke knob (at the back-right of the rear handle) to the
point of the arrow, you can set the starting mode as follows:
•
First-stage position – starting mode when the engine is warm. (warm start)
• Second-stage position – starting mode when the engine is cold. (cold start)
Position: Upper-right of the aircleaner cover
Shows the directions that the chain brake is released (white arrow) and activated (black ar-
row).
Position: Front of the chain cover
The screw at the left of the “T” stamp is the Idle adjustment screw.
Position: Left side of the rear handle
The screw under the “L” stamp is The Slow-speed adjustment screw.
