English
E- 7
SPEAKERS
MAIN
OUTPUT
SUB
WOOFER
CENTER REAR CENTER L R
L R L R
A
–
–
+
+
–
+
–
+
–
+
B
REAR
(SURROUND)
INPUT1 FROM AMPLIFIER
OUTPUT TO SPEAKERS
INPUT2 /MONO
AUTO STANDBY
OFF LOW HIGH LOW HIGH HIGH CUT
OFF
POWER ON
VOLUME
0 10
INPUT2 /MONO
INPUT1
FROM AMPLIFIER
OUTPUT
TO SPEAKERS
CENTER
CENTER
FRONT R
FRONT R
FRONT L
FRONT L
REAR C
REAR C REAR R REAR L
REAR L REAR R
CONNECTIONS
Caution: Plug in the subwoofer and other audio/video components after all connections are
completed.

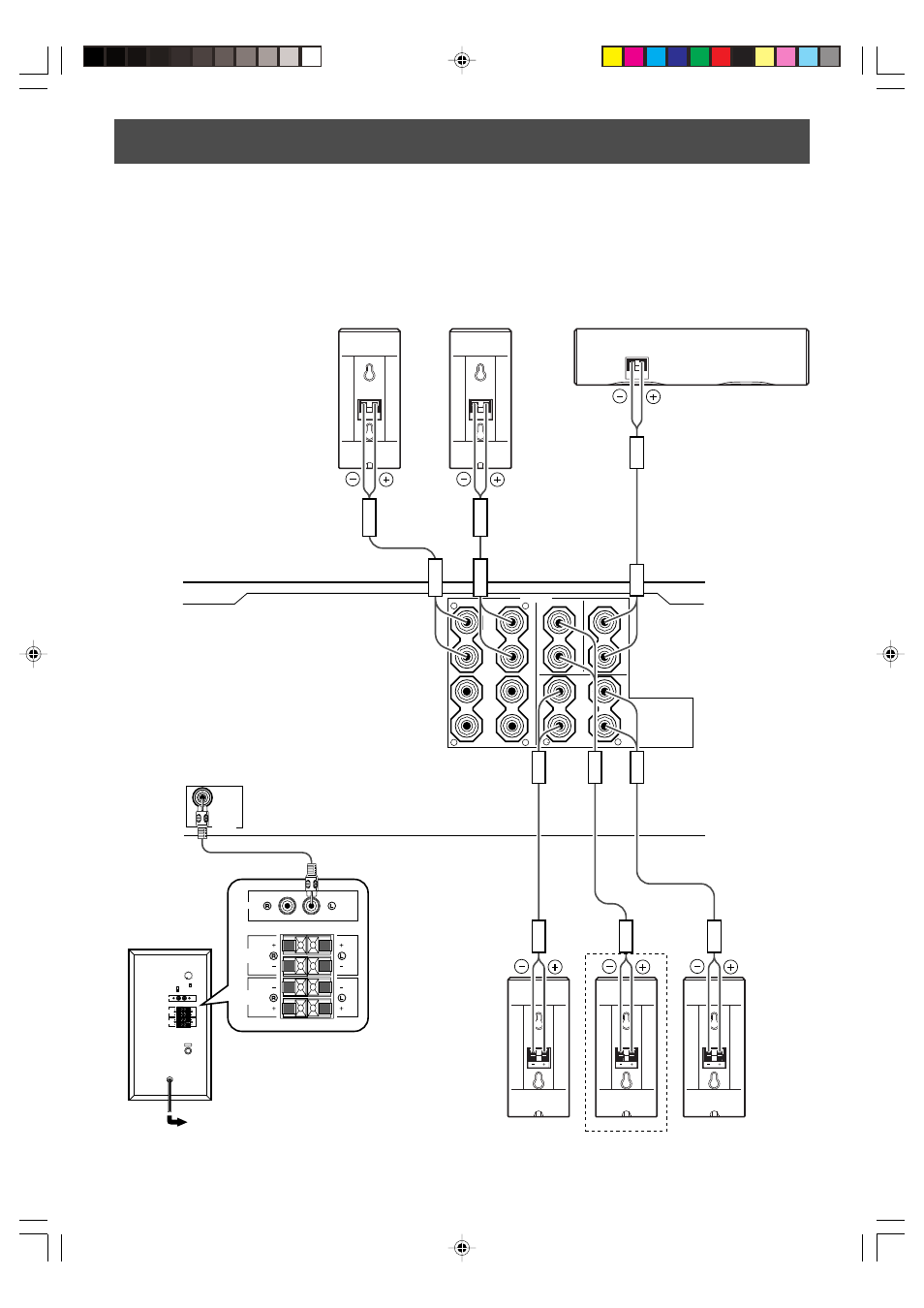

Ⅵ An example of basic connections
Subwoofer
Amplifier
To AC outlet
Center speaker
Rear speaker
Right
Left Right
Main speakers
Rear center speaker
(for NS-P236)
Rear speaker
Left
