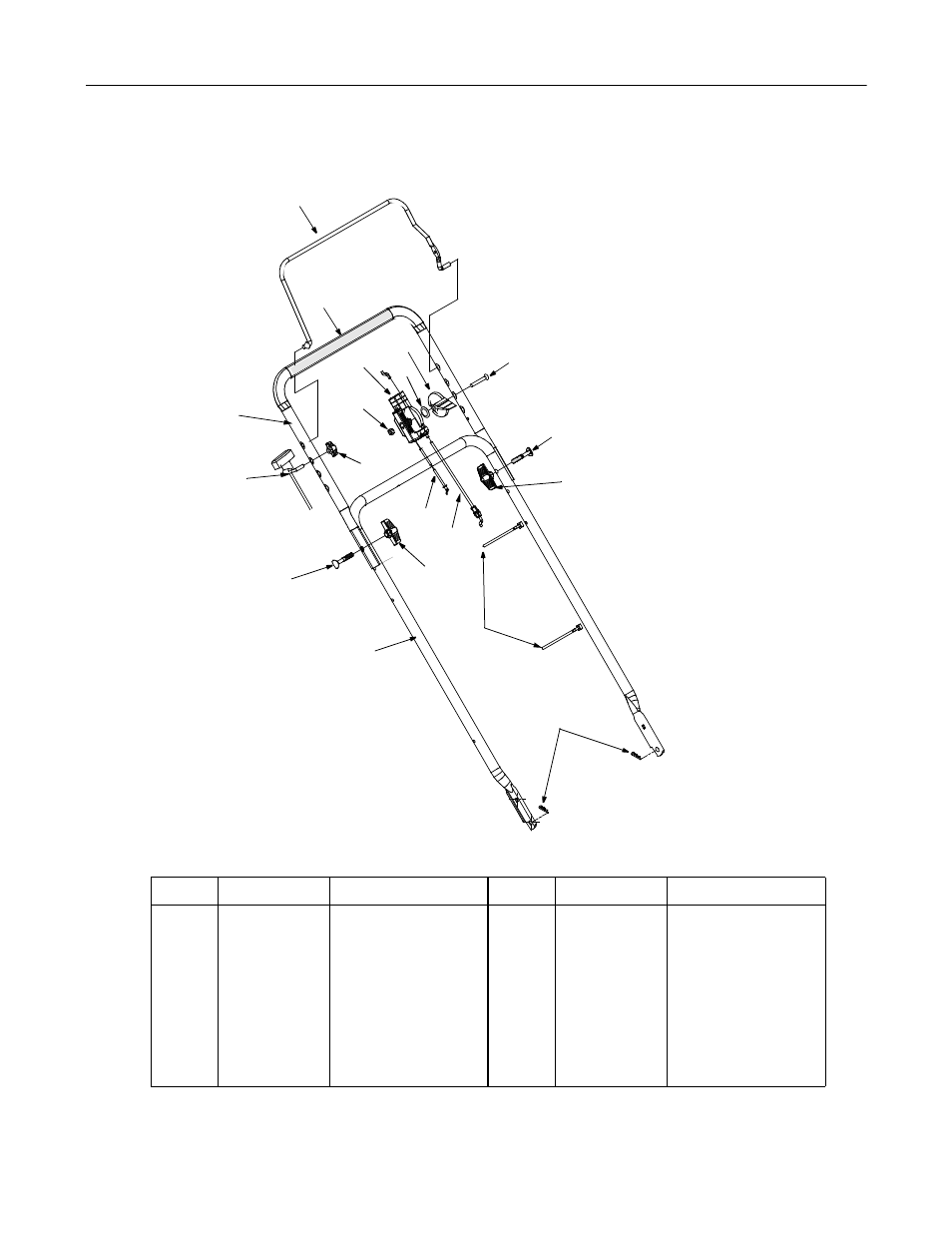

SECTION 12: PARTS LIST FOR MODEL 108Q
Ref. No. Part No. Description
1 747-0824 Control Handle Ass’y.
2 710-0605 Oval C-Sunk Screw
3 746-0876 Throttle Lever
4 736-0501 Curved Spring Washer
5 712-0324 Hex Lock Nut
6 746-0875 Throttle Housing w/ERS
7 720-0295 Foam Grip
8 749-0705 Upper Handle
9 710-1205 Rope Guide
10 720-0314 Hand Knob
11 710-1174 Carriage Bolt
12 726-0240 Cable Tie
13 749-0928-0637 Lower Handle
14 714-0104 Hairpin Clip
15 746-0550 Control Cable 39” Lg.
16 746-1110 Throttle Cable 42” Lg.
17 720-0279 Handle Knob
- 737-0343 Bottle of Oil (not shown)
