Yamaha TW125 (5RS1) - Manual (Page 18)

B
13

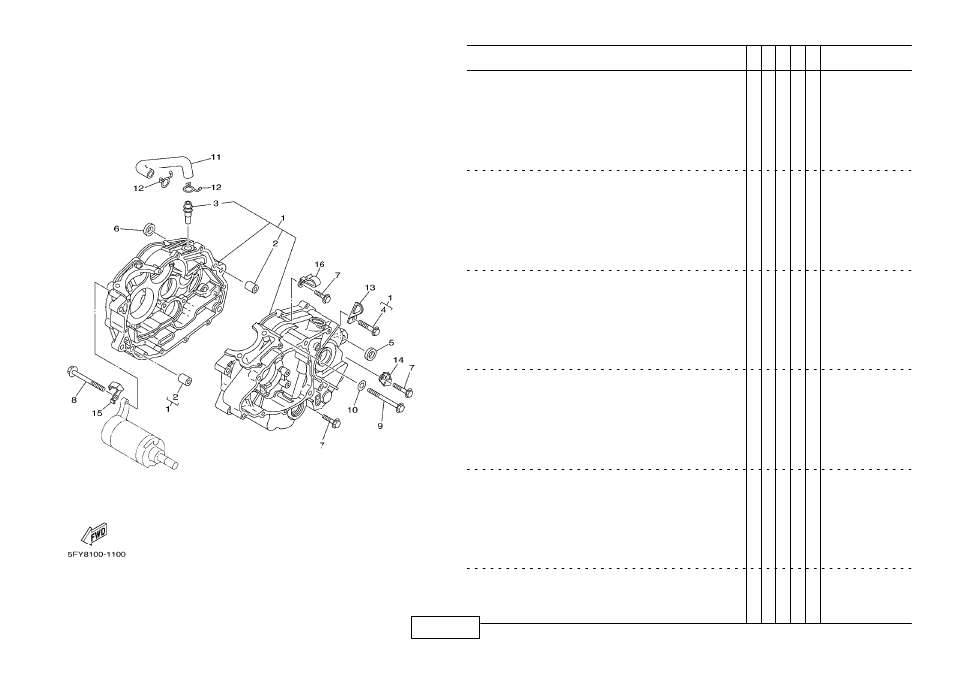

FIG. 10 CRANKCASE
1 5EK–15100–01 CRANKCASE ASSY 1
2 99530–12016 .PIN, DOWEL 2
3 371–11167–01 .PIPE, BREATHER 2 1
4 95027–06040 .BOLT, FLANGE 2
5 90387–125F1 COLLAR 1
6 90387–125F1 COLLAR 1
7 95027–06030 BOLT, FLANGE 7
8 95027–06090 BOLT, FLANGE 2
9 95027–06085 BOLT, FLANGE 1
10 90430–06014 GASKET 1
11 3Y1–11166–00 PIPE, BREATHER 1 1
12 90467–14015 CLIP 2
13 90465–08020 CLAMP 1
14 90462–08225 CLAMP 1
15 90462–08224 CLAMP 1
16 90465–08127 CLAMP 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5RS1
