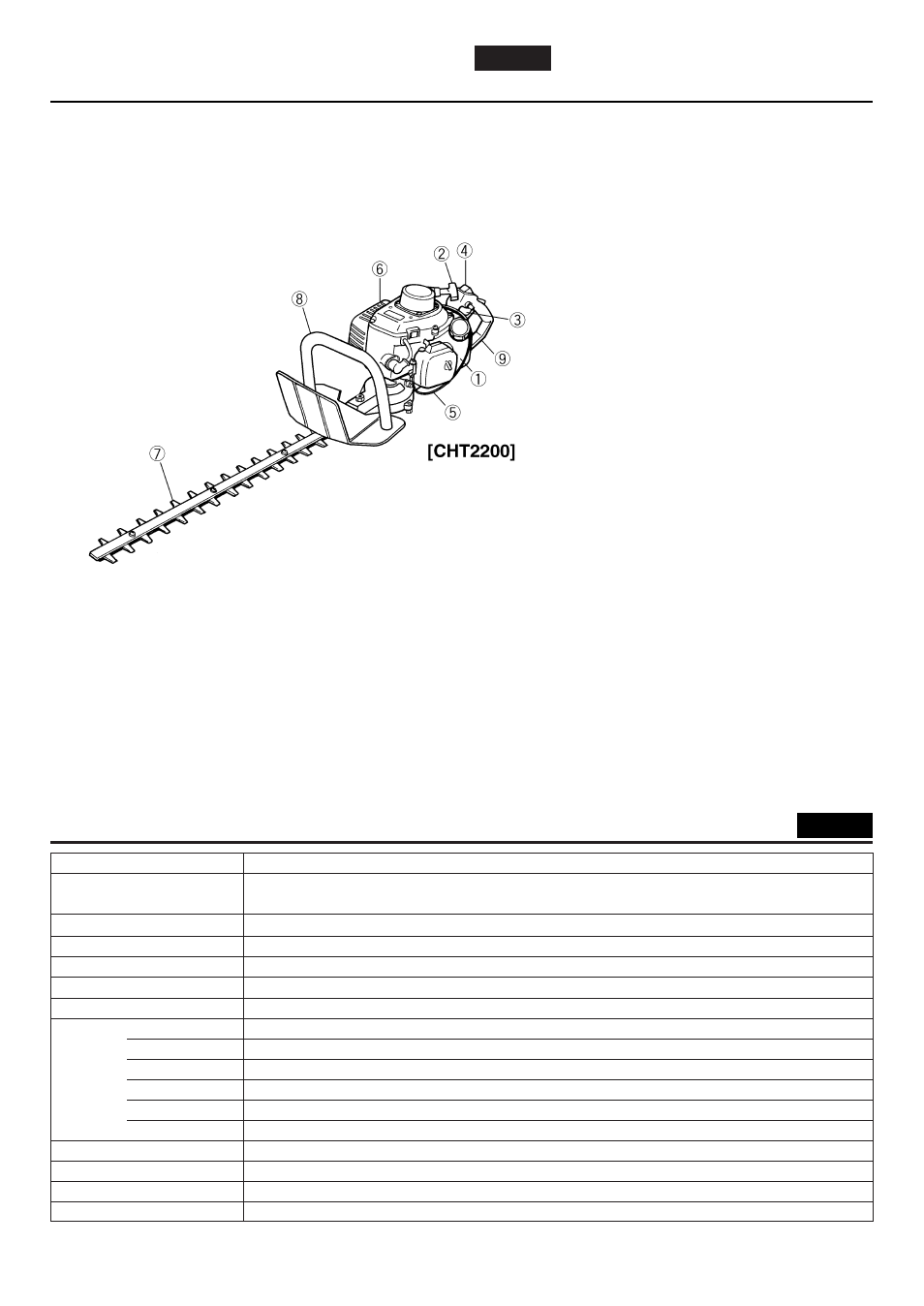

1. Parts location

English

English

1. Fuel tank
2. Starter
3. Throttle lever
4. Ignition switch
5. Throttle Cable
6. Muffler
7. Blade
8. Front handle
9. Rear handle

2. Specifications

Model

CHT2200

Type

Reciprocating

double-sided dual blades

Dry weight

4.7(kg)/ 10.4(lbs)

Blade size

550(mm)/ 22(in)

Blade pitch

35(mm)/ 1.38(in)

Transmission

Centrifugal clutch, Cam-crank

Reduction ratio

4.25

Engine

Type

Air-cooled 2-stroke gasoline

Mode

Zenoah G23LH

Displacement

22.5(cm

3

)/ 1.37(cu-in)

Max. output

0.68Hp(0.51kW)at 6500 / min

-1

(rpm)

Idle speed

2800±200 / min

-1

(rpm)

Fuel

mixture(Gasoline 50 : Oil 1)(when using ZENOAH genuine oil)

Carburetor

Walbro Diaphragm type

Spark plug

CHAMPION RCJ6Y

Fuel tank capacity

0.59(litter)/ 20.0(fl.oz)

Durability period

300(hrs.)

Specifications are subject to change without notice.
