GB-4
SGCZ2600DL/SGCZ2600DW
Model
SGCZ2600DL
SGCZ2600DW

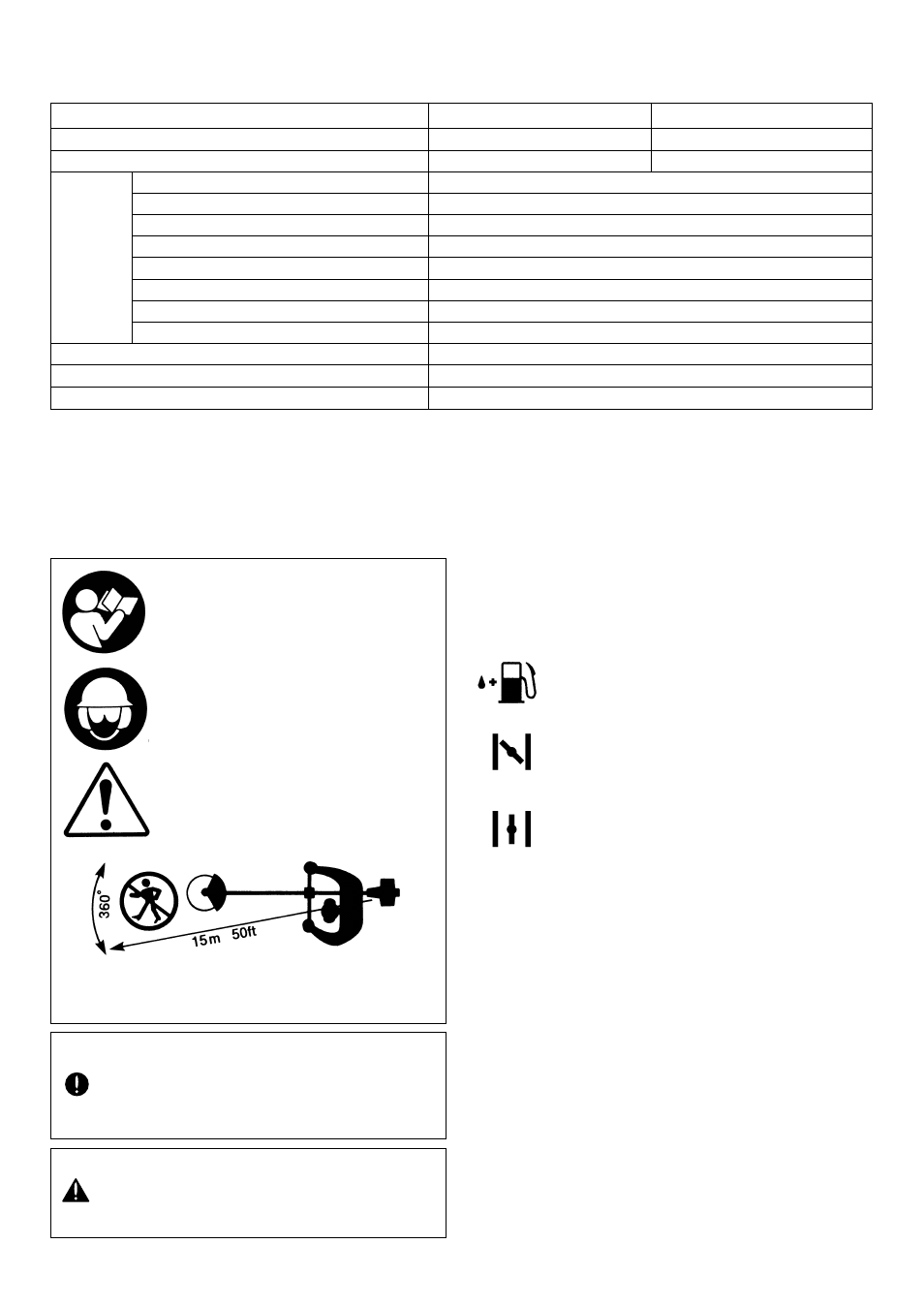

Overall size (LxWxH)
mm
1930 x 250 x 250
1930 x 610 x 415
Dry weight
kg
6.7
6.9
Engine
Type
Air-cooled 2-stroke gasoline
Model
Zenoah GZ25N
Max output
rpm
1.2Hp (0.9kW) at 7500min
-1
Idle speed
rpm
3000±200min
-1
Displacement
cm
3
25.4
Fuel
Mixture (Gasoline 50 : Oil 1) (when using ZENOAH genuine oil)
Carburetor
Walbro Diaphragm type
Spark plug
NGK CMR7A
Fuel tank capacity
L
0.65
Transmission
Centrifugal clutch, Rigid drive shaft
Reduction ratio
7.8
Specifications are subject to change without notice.
2. Specification
3. Warning labels on
the machine
4. Symbols on
the machine
For safe operation and maintenance, symbols are carved
in relief on the machine. According to these indications,
please be careful not to make a mistake.
The port to refuel the “MIX GASOLINE”
Read owner’s manual before oper-
ating this machine.
Wear head, eye and ear protec-
tion.
Warning / Attention
Keep all children, bystanders and helpers 15
meters away from the machine.
Never modify your machine.
We won’t warrant the machine, if you use the
remodeled reciprocation or if you don’t ob-
serve the proper usage written in the manual.
If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the required
location(s).
Position:
FUEL TANK CAP
The direction to close the choke
Position:
ENGINE COVER
The direction to open the choke
Position:
ENGINE COVER
