3
BCZ4500DL / BCZ4500DW / BCZ4500CL / BCZ5000DL / BCZ5000DW / BCZ5000CL
Model BCZ4500DL/DW BCZ5000DL/DW BCZ4500/5000CL
Overall size (LxWxH) mm DL: 1915x420x260 DW: 1915x655x450 1915x655x530
Dry weight kg 8.5 9.0
Engine Model Zenoah GZ45N Zenoah GZ50N Zenoah GZ45N/GZ50N
Displacement cm 3 45.2 50.6 45.2/50.6
Fuel Mixture (Gasoline 50 : Oil 1)*
Carburetor Diaphragm type
Ignition system Flywheel magneto (C.D.I.)
Spark plug NGK CMR7H
Fuel tank capacity L 0.8
Starter Recoil starter
Clutch Centrifugal type
Reduction ratio 1.4
Cutting head rotating direction Counter-clockwise (Operator view)
*When using Zenoah genuine oil
Specifications are subject to change without notice.

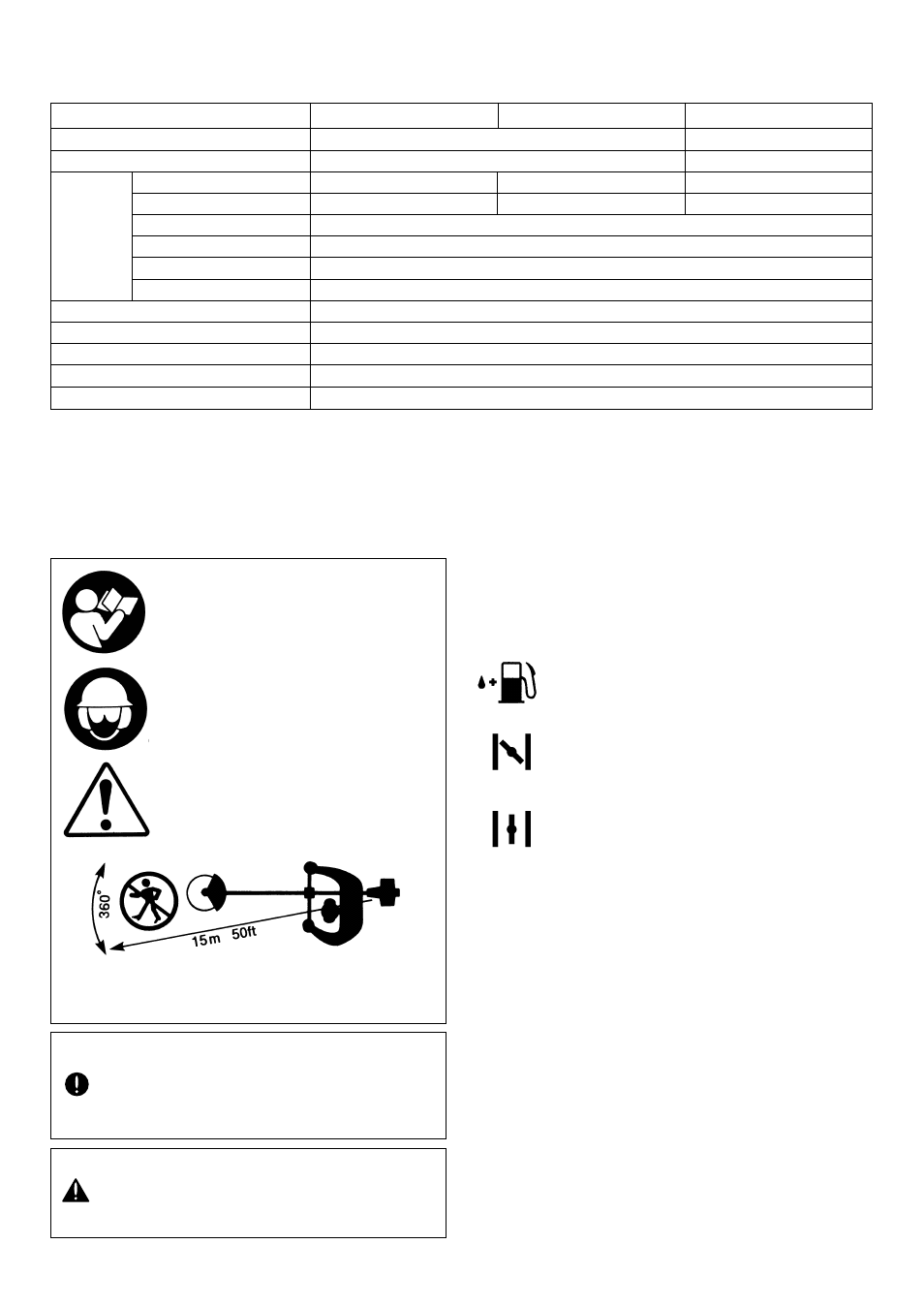

2. Specification
3. Warning labels on
the machine 4. Symbols on
the machine
For safe operation and maintenance, symbols are carved
in relief on the machine. According to these indications,
please be careful not to make a mistake.
The port to refuel the “MIX GASOLINE”
Read owner’s manual before oper-
ating this machine.
Wear head, eye and ear protec-
tion.
Warning / Attention
Keep all children, bystanders and helpers 15
meters away from the machine.
Never modify your machine.
We won’t warrant the machine, if you use the
remodeled brushcutter or if you don’t observe
the proper usage written in the manual.
If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the required
location(s).
Position: FUEL TANK CAP
The direction to close the choke
Position: ENGINE COVER
The direction to open the choke
Position: ENGINE COVER
