18
6. Set up
English
■ MOUNTING OTHER PARTS

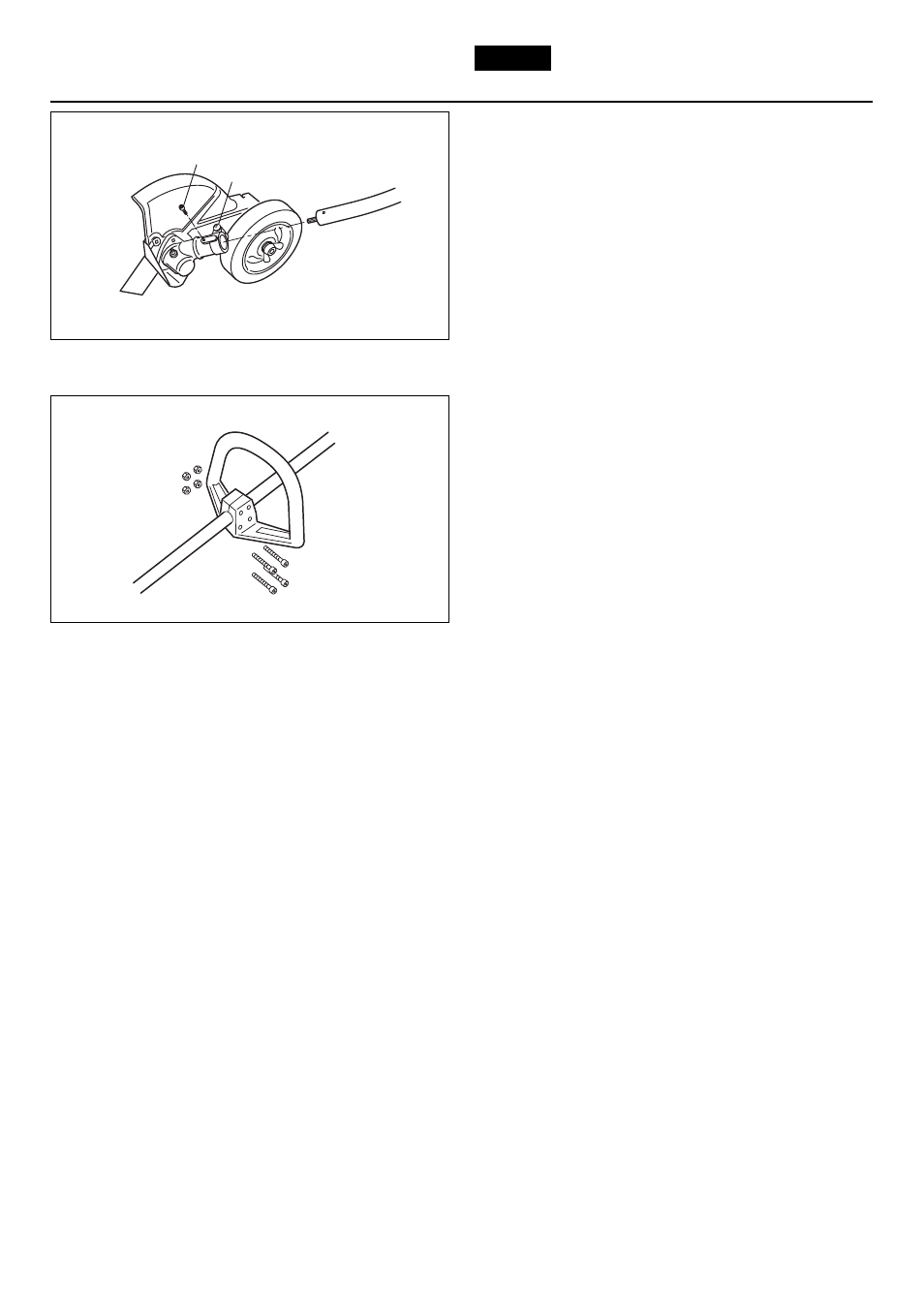

1. Insert the driveshaft into the clutch drum, then attach
the gearbox to the shaft tube as aligning the
positioning holes and fasten the screw (A). Fasten
the clamp bolt (B) firmly. (SE1)
(A) Screw
(B) Clamp bolt
(B) Tightning Torque: 52~69in-lbs (6~8N.m.)
2. Install the handle to the shaft tube and clamp at a
position best for your job. (SE2)
(A)
(B)
SE1
SE2
