REVERSE SPRING DETENT ADJUSTMENT
1. To check if your reverse spring detent adjustment is set right. Make sure your ground speed
lever is pulled back to the neutral position. Release the thumb latchs(both sides) and pull up
on the control levers at the same time. Then release the levers, it should return to neutral. If it
does not, the following adjustmtents need to be made.
2. Stop engine and remove key.
3. Ground speed lever should be in the neutral or stop postion and the thumb latchs unlocked.
4. Loosen the two 1/4” bolts holding the reverse detent bracket. Slide the bracket up or down
until it just touchs the “L” shape stop under the console. Holding the bracket against the stop
retighten the two 1/4” bolts. Repeat on other side if needed. (See Figure 3. )

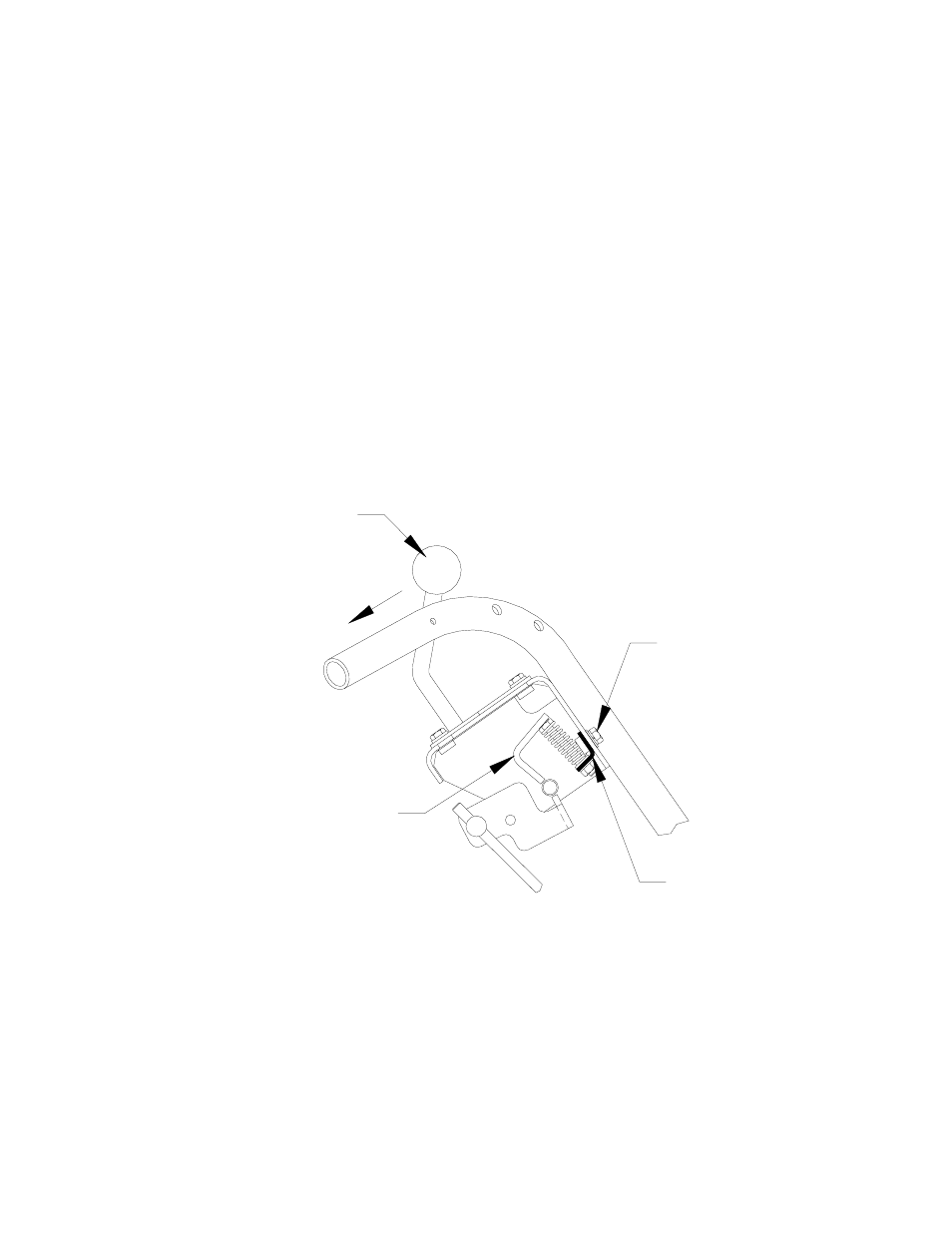

FIGURE 3
(Right side cut away view of console.)
GROUND SPEED
LEVER
REVERSE DETENT
BRACKET
1/4" BOLTS
"L" SHAPE
STOP
NEUTRAL OR STOP
POSITION
