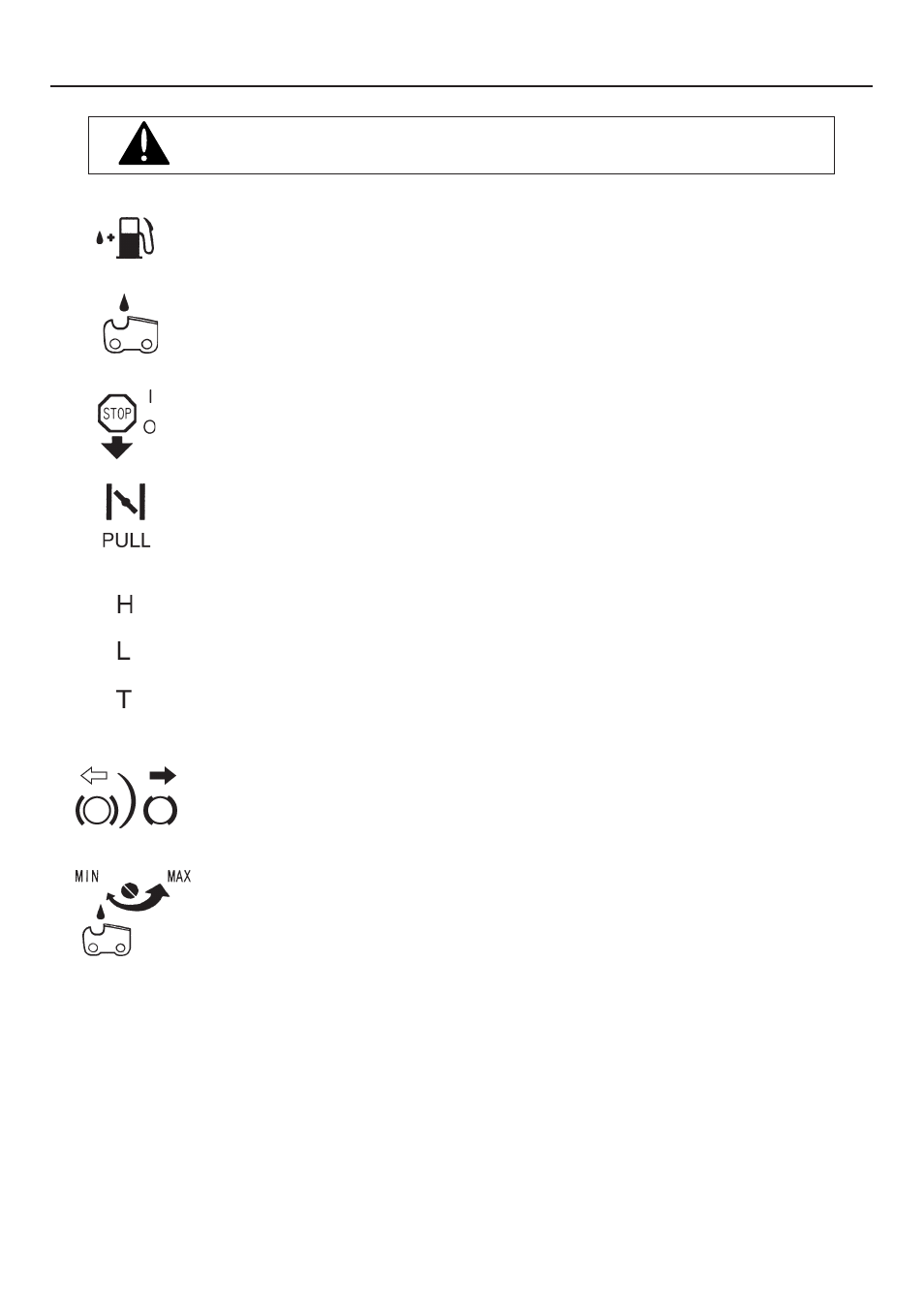

2. Explanation of Symbols on the Machine
The port to refuel “MIX GASOLINE”
Position: Fuel cap
The port to top up chain oil
Position: Oil cap
Setting the switch to the “O” position, the engine stops immediately.
Position: Rear-left of the unit
If you pull out the choke knob, you can set the choke as a cold start mode.
Position: Upper-right of the aircleaner cover
The screw under the “H” stamp is The High-speed adjustment screw.
The screw under the “L” stamp is The Slow-speed adjustment screw.
The screw at the left of the “T” stamp is the Idle adjustment screw.
Position: Left side of the rear handle
Shows the directions that the chain brake is released (white arrow) and activated (black
arrow).
Position: Front of the chain cover
If you turn the rod by screwdriver follow the arrow to the "MAX" position, the chain oil flow
more, and if you turn to the "MIN" position, less.
Position: Bottom of the power unit
For safe operation and maintenance, symbols are carved in relief on the machine.
According to these indications, please be careful not to make any mistake.
