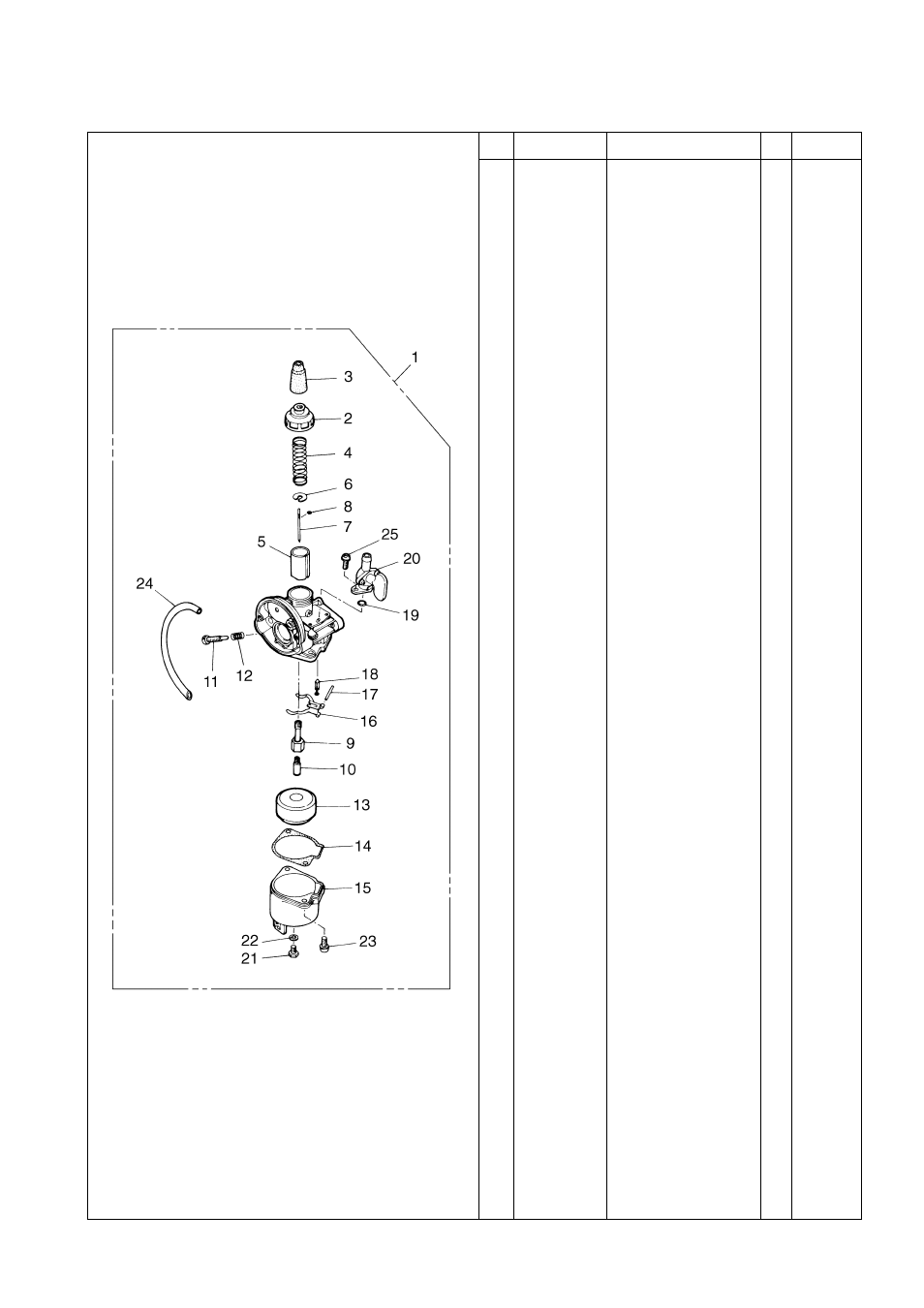

Fig.4 CARBURETOR [BC4302FW]
BC4302FW
Q’TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
1
4550-81000 CARBURETOR ASS'Y
1
BC4302FW
2
1650-81121 • CAP
1
3
1141-81120 • CAP
1
4
1335-81060 • SPRING
1
5
4550-81150 • VALVE
1
6
T1012-81070 • RECEIVE
1
7
T1012-81210 • NEEDLE
1
8
1030-81001 • CLIP
1
9
1620-81230 • JET NEEDLE
1
10
T1012-81240 • JET
1
11
2751-81250 • SCREW
1
12
1650-81260 • SPRING
1
13
1335-81180 • FLOAT
1
14
1400-81320 • PACKING
1
15
1400-81310 • CHAMBER
1
16
1400-81340 • HINGE
1
17
1400-81350 • PIN
1
18
1400-81361 • VALVE
1
19
1400-81540 • O RING
1
20
1403-81500 • COCK
1
21
1400-81650 • SCREW
1
22
1400-81660 • PACKING
1
23
0260-10410 • SCREW
2
24
4550-81710 • PIPE
1
25
0260-10412 • SCREW
2
