17
PR167
Ha
Hb
8mm

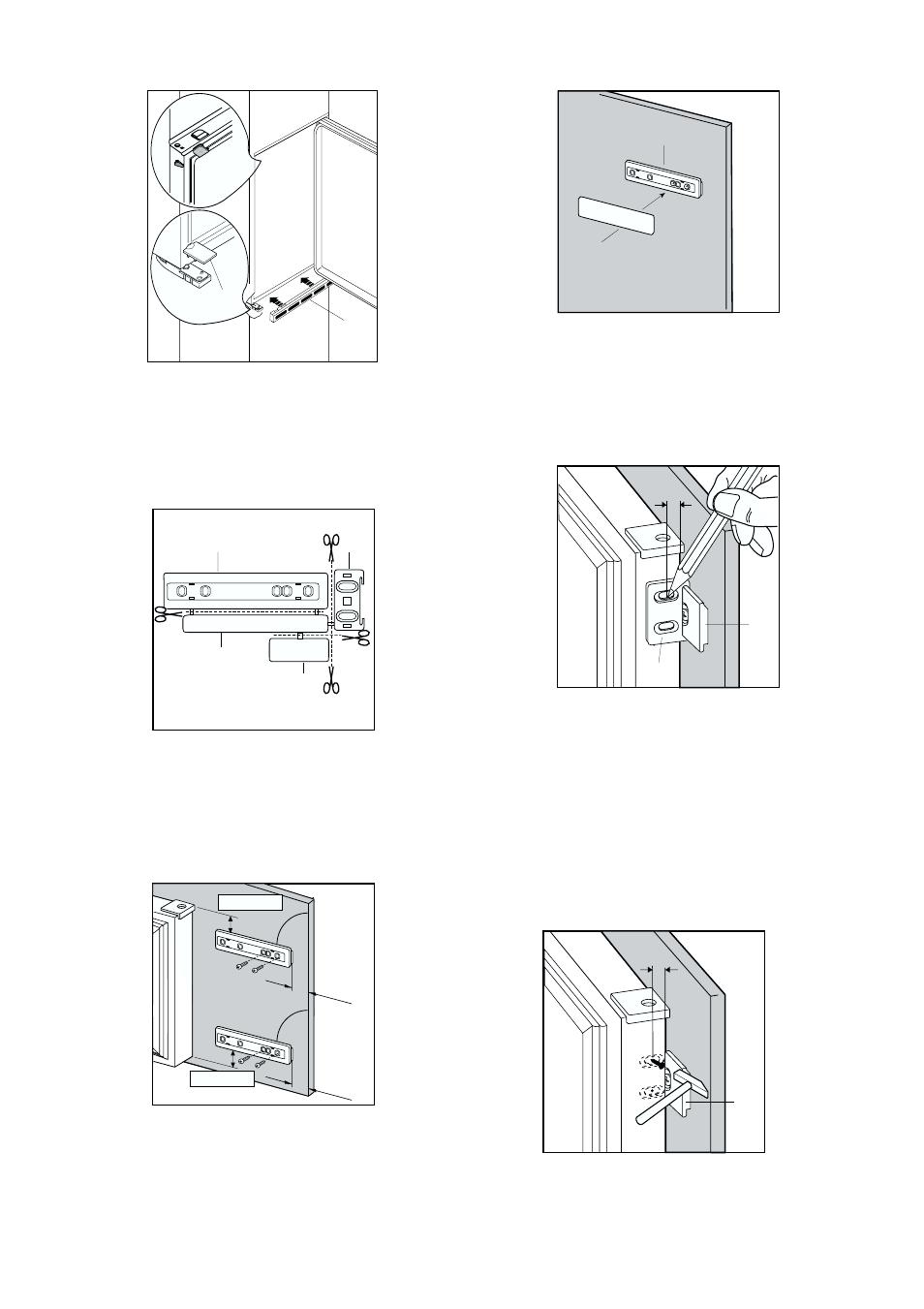

6. Place guide (Ha) on the inside part of the furniture
door, up and down as shown in the figure and
mark the position of external holes. After having
drilled holes, fix the guide with the screws
supplied.
8. Open the appliance door and the furniture door at
90°. Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the furniture
door and mark the holes as indicated in the figure.
5. Separate parts Ha, Hb, Hc, Hd as shown in the
figure.
7. Fix cover (Hc) on guide (Ha) until it clips into
place.
4. Snap vent grill (B) and hinge cover (E) into
position.
Apply blanking covers (C-D) as indicated.
B
E
C
D
PR266
Ha Hb
Hc
Hd
21 mm
21 mm
ca. 50 mm
90 °
90 °
ca. 50 mm
PR33
Hc
Ha
PR167
Ha
8mm
K
9. Remove the squares and mark a distance of
8 mm from the outer edge of the door where the
nail must be fitted (K).
