D I G I T A L P R O D U C T I O N C O N S O L E D M 2 0 0 0
EFFECT TYPE LIST
EFFECT TYPE Input Output DSP
1 Reverb Hall Hall simulation reverb with gate 1 2 1
2 Reverb Room Room simulation reverb with gate 1 2 1
3 Reverb Stage Reverb for vocals with gate 1 2 1
4 Reverb Plate Plate simulation reverb with gate 1 2 1
5 Early Ref. Early reflections 1 2 1
6 Gate Reverb Gate reverb setting of early reflections 1 2 1
7 Reverse Gate Reverse gate setting of early reflections 1 2 1
8 Mono Delay Very simple repeat delay 1 2 1
9 Stereo Delay Simple stereo delay 2 2 1
10 Mod.delay Simple repeat delay with modulation 1 2 1
11 Delay Lcr 3 taps ( left, center, right) delay 1 2 1
12 Echo Stereo delay with cross feedback loop 2 2 1
13 Chorus Chorus effect 2 2 1
14 Flange Flange effect 2 2 1
15 Symphonic Symphonic effect 2 2 1
16Phaser 16 stage phase sifter. 2 2 1
17 Auto Pan Auto-pan 2 2 1
18 Tremolo Tremolo effect 2 2 1
19 Hq.Pitch High quality pitch change effect 1 2 1
20 Dual Pitch 2 voice pitch change 2 2 1
21 Rotary Rotary speaker simulation 1 2 1
22 Ring Mod. Ring modulator 2 2 1
23 Mod.Filter LFO modulation type filter 2 2 1
24 Distortion Distortion 1 2 1
25 Amp Simulate Guitar amp simulator 1 2 1
26Dyna.Filter A filter controlled by input dynamics 2 2 1
27 Dyna.Flange Flange effect controlled by input dynamics 2 2 1
28 Dyna.Phaser Phase sifter controlled by input dynamics. 2 2 1
29 Rev+Chorus Parallel combination of reverb and chorus 1 2 1
30 Rev->Chorus Series combination of reverb and chorus 1 2 1
31 Rev+Flange Parallel combination of reverb and flange 1 2 1
32 Rev->Flange Series combination of reverb and flange 1 2 1
33 Rev+Sympho. Parallel combination of reverb and symphonic 1 2 1
34 Rev->Sympho Series combination of reverb and symphonic 1 2 1
35 Rev->Pan Series combination of reverb and auto-pan 1 2 1
36Delay+Er Parallel combination of delay and early reflections 1 2 1
EFFECT TYPE Input Output DSP
37 Delay->Er Series combination of delay and early reflections 1 2 1
38 Delay+Rev Parallel combination of delay and reverb 1 2 1
39 Delay->Rev Series combination of delay and reverb 1 2 1
40 Dist->Delay Series combination of distortion and modulation delay 1 2 1
41 Multi Filter Three-band parallel filter (24 dB/oct.) 2 2 1
42 Freeze A simple sampler. 1 2 1
43 St Reverb Stereo reverb. 2 2 1
44 Reverb 5.1* Reverb with surround positioning. 1 64
45 Octa Reverb* 8-channel reverb. 8 8 4
46Auto Pan 5.1* LFO-controlled 5.1 surround pan. 6 6 1
47 Chorus 5.1* 5.1 surround chorus. 661
48 Flange 5.1* 5.1 surround flange. 661
49 Sympho. 5.1* 5.1 surround symphonic. 661
50 M.Band Dyna. Multi-band dynamics processor. 2 2 1
51 Comp 5.1* 5.1 surround multi-band compressor. 664
52 Compand 5.1* 5.1 surround multi-band compander. 664
53 Comp276VCM technology compressor 2 2 1
54 Comp276S VCM technology compressor 2 2 1
55 Comp260 VCM technology compressor 2 2 1
56Comp26 0S VCM technology compressor 2 2 1
57 Equalizer601 VCM technology EQ 2 2 1
58 OpenDeck VCM technology open-reel tape recorder simulator 2 2 1
59 REV-X Hall REV-X algorithms reverb 2 2 1
60 REV-X Room REV-X algorithms reverb 2 2 1
61 REV-X Plate REV-X algorithms reverb 2 2 1
62 Room ER ISSP technology acoustic property simulator 1 5 1*
63 Auto Doppler ISSP technology Auto Doppler 1 5 1*
64 Field Rotation ISSP technology Field Rotation 6 6 1*
65 Max100 VCM technology modulation 1 1 1
66 Vintage Phaser VCM technology phaser 1 1 1
67 Dual Phaser VCM technology dual phaser 1 1 1
*Effects marked with an asterisk (*) can only be recalled for the EFFECT 1 and EFFECT 2 processors.
*If an effect which uses 4 DSP processors is used the total number of effects that can be used simultaneously is reduced by
three. For example, if REVERB 5.1 is selected for EFFECT 1 and DYNAMICS 5.1 is selected for EFFECT 2, EFFECT 3 through
EFFECT 8 cannot be used.
COMP LIBRARY
TITLE TYPE
1 Comp COMP
2 Expand EXPAND
3 Compander(H) COMPAND-H
4 Compander(S) COMPAND-S
5 A.Dr.BD COMP
6 A.Dr.BD COMPAND-H
7 A.Dr.SN COMP
8 A.Dr.SN EXPAND
9 A.Dr.SN COMPAND-S
10 A.Dr.Tom EXPAND
11 A.Dr.OverTop COMPAND-S
12 E.B.Finger COMP
13 E.B.Slap COMP
14 Syn.Bass COMP
15 Piano1 COMP
16Piano2 COMP
17 E.Guitar COMP
18 A.Guitar COMP
TITLE TYPE
19 Strings1 COMP
20 Strings2 COMP
21 Strings3 COMP
22 BrassSection COMP
23 Syn.Pad COMP24
24 SamplingPerc COMPAND-S
25 Sampling BD COMP
26Sampling SN COMP
27 Hip Comp COMPAND-S
28 Solo Vocal1 COMP
29 Solo Vocal2 COMP
30 Chorus COMP
31 Click Erase EXPAND
32 Announcer COMPAND-H
33 Limiter1 COMPAND-S
34 Limiter2 COMP
35 Total Comp1 COMP
36Total Comp2 COMP
EQ LIBRARY
TITLE
1 Bass Drum 1
2 Bass Drum 2
3 Snare Drum 1
4 Snare Drum 2
5 Tom-tom 1
6 Cymbal
7 High Hat
8 Percussion
9 E.Bass 1
10 E.Bass 2
11 Syn.Bass 1
12 Syn.Bass 2
13 Piano 1
14 Piano 2
15 E.G.Clean
16E.G.Crunch 1
17 E.G.Crunch 2
18 E.G.Dist. 1
19 E.G.Dist. 2
20 A.G.Stroke 1
TITLE
21 A.G.Stroke 2
22 A.G.Arpeg. 1
23 A.G.Arpeg. 2
24 Brass Sec.
25 Male Vocal 1
26Male Vocal 2
27 Female Vo. 1
28 Female Vo. 2
29 Chorus&Harmo
30 Total EQ 1
31 Total EQ 2
32 Total EQ 3
33 Bass Drum 3
34 Snare Drum 3
35 Tom-tom 2
36Piano 3
37 Piano Low
38 Piano High
39 Fine-EQ Cass
40 Narrator
GATE LIBRARY
TITLE TYPE
1 Gate GATE
2 Ducking DUCKING
3 A.Dr.BD GATE
4 A.Dr.SN GATE
The DM2000 effect library includes a total 67 superb effects.
All feature full 24 bit/96 kHz processing for unprecedented resolution and quality with any type of program material.
Effect List

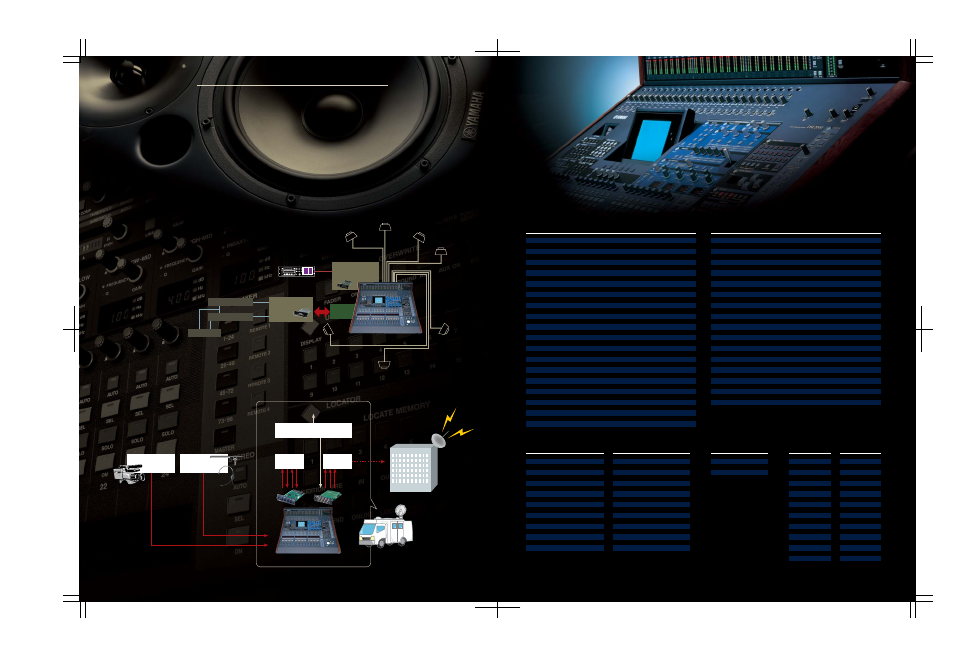

DVD Authoring
(6.1 Surround Monitoring)
Both the DM2000 and Yamaha’s MSP10 STUDIO powered monitor
speakers have been officially approved for use in THX pm3 ™ Certified
Studios, and are thus ideal choices for the most advanced DVD authoring
applications. In the system shown here the 6.1 program is monitored via
powered monitors and a subwoofer connected to the console’s OMNI
outputs (the DM2000 also includes bass management facilities for full-
range playback). At the same time surround encoders and decoders can
be inserted in the system to burn a stereo mix as well as the surround
mix to Lt/Rt Master.
Relay Broadcast
With the MY8-AEB 8-channel AES/EBU-format interface card
with “eXi-Clock” sync capability, the DM2000VCM becomes an
ideal platform for live broadcasting as well as video post
production, delivering the highest audio quality with reliable
synchronization to a wide range of video sources.
Mini-YGDAI Cards
MY8-AE (96)
(AES / EBU)
etc...
MSP10
STUDIO
(Powered SP)
SW10
(Sub Woofer)
MSP10
STUDIO
(Powered SP)
MSP10
STUDIO
(Powered SP)
MSP10
STUDIO
(Powered SP)
MSP10
STUDIO
(Powered SP)
MSP10
STUDIO
(Powered SP)
Surround Encorder
Surround Decoder
TASCAM DA Series etc...
Discrete Master Recording
Insert
OMNI Out
Lt/Rt Master LS
BS
RS
R
LFE
C
L
Mini-YGDAI Cards
MY8-TD
(TASCAM Signals)
Down
Mix
(MY16AT) MY8-AEB
DM2000VCM
Line
8ch x 2 (AES3id)
Broadcast Station
Reference Video
(Black Burst)
Mic
Camera Reporter (Mic) Recorder Encoder
Video Sync Generator
To VTR
DM2000VCM
