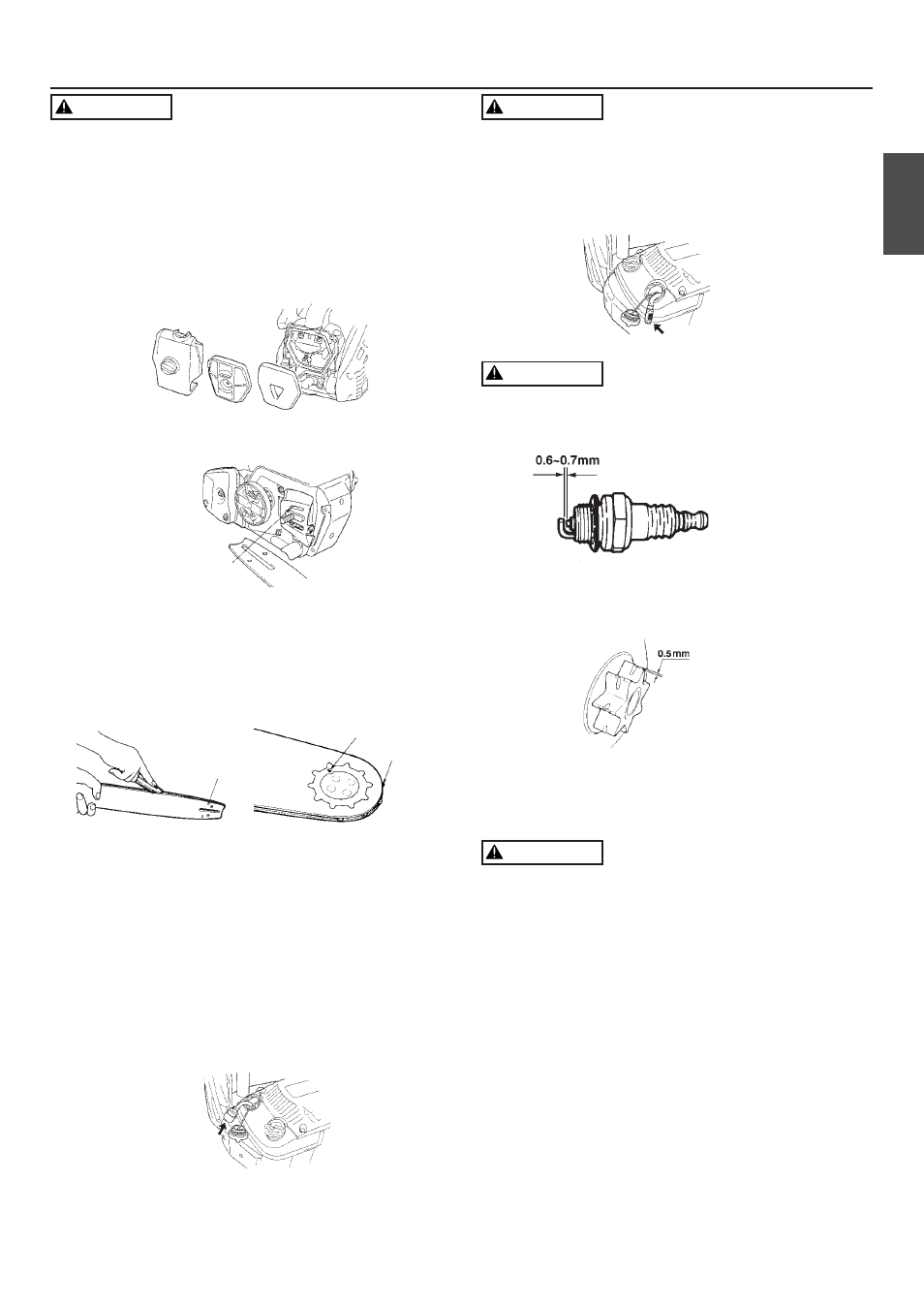

Maintenance – Zenoah CHAIN SAWS G2500 User Manual

Page 15

G2500

GB-15

When returning the filter, use a pinch not to be folded the suc-
tion pipe.

3. Oil filter

With a wire hook, take out the oil filter from the feeding
port.

Wash the filter with gasoline.

When returning the filter, use a pinch not to be folded the suc-
tion pipe.

4. Spark plug

Clean the electrodes with a wire brush and reset the gap to
0.6 mm as necessary.

5. Sprocket

Check for cracks and for excessive wear interfering with the
chain drive. If the wear is considerable, replace it with new
one. Never fit a new chain on a worn sprocket, or a worn chain
on a new sprocket.

2. Fuel filter

(a) Using a wire hook, take out the filter from the filler port.

(b) Wash the filter with gasoline.

Replace with new one if clogged with dirt completely.

Before cleaning, the inspecting or repairing the unit, make sure
that engine has stopped and is cool. Disconnect the spark
plug to prevent accidental starting.

■ MAINTENANCE AFTER EACH USE

1. Air filter

Loosen the knob and remove the air cleaner cover. Take off the
filter elements and tap off attached sawdust. When they are
extremely dirty, shakewash with gasoline. Dry them completely
before reinstalling.

2. Oiling port

Dismount the guide bar and check the oiling port for clogging.

3. Guide bar

When the guide bar is dismounted, remove sawdust in the bar
groove and the oiling port.

Grease the nose sprocket from the feeding port on the tip of
the bar.

4. Others

Check for fuel leakage and loose fastenings and damage to
major parts, especially handle joints and guide bar mounting.
If any defects are found, make sure to have them repaired
before operating the saw again.

Oil filter

7. Maintenance

Oiling port

Champion
RCJ-7Y

Oiling port

Grease port

Sprocket

■ PERIODICAL SERVICE POINTS
1. Cylinder fins

Reriodically check and clean the cylinder fins in the repair spe-
cialty store.

Fuel filter

Way of the cooling air

• The engine metal parts can burn your skin. Never touch the

cylinder, muffler or ignition plug etc. during operation or right
after stopping the engine.

• Before starting the engine, check around the muffler and

take off sawdust. If you do not, it will cause the overheating
and a fire. For preventing the trouble, please keep clean
around the muffler.

This engine is air-cooled. Dust clogging between the inlet port
of the cooling air and cylinder fins will cause overheating of
the engine. Periodically check and clean the cylinder fins in
the repair specialty store.

WARNING
