Zenoah G4100 - Manual (Page 4)

1-9 Minamidai, Kawagoe, Saitama, 350-1165 Japan

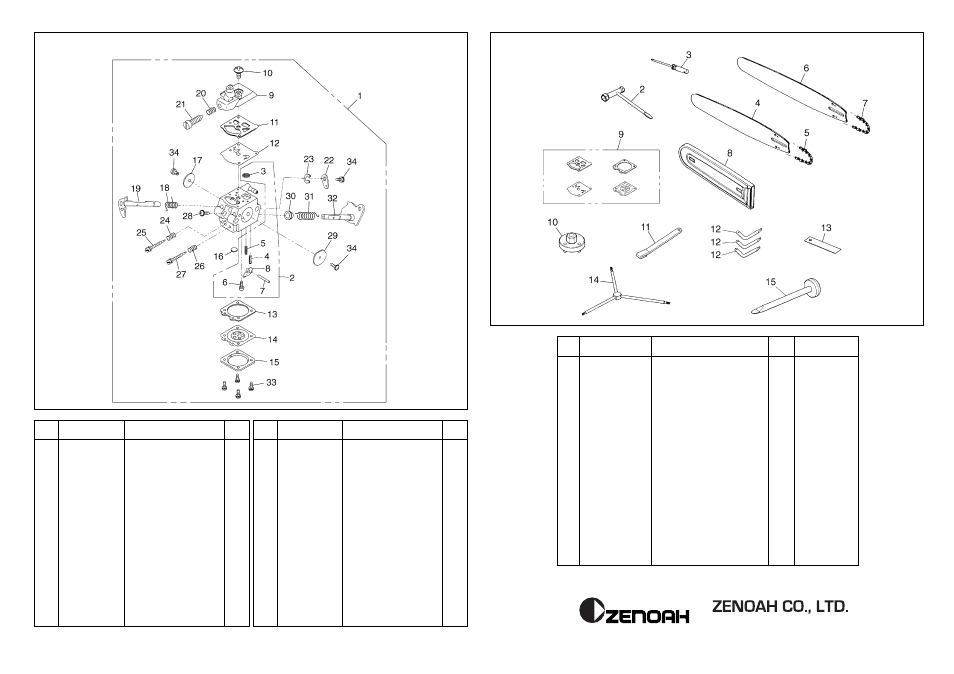

Fig. 3 CARBURETOR COMPONENTS Fig. 4 ACCESSORIES
1 2869-81000 Carburetor ass’y 1
2 T2100-06030 • R-Kit 1
3 3306-81380 • • Screen 1
4 3356-81310 • • Valve 1
5 2867-81270 • • Spring 1
6 3310-81240 • • Screw M lever pin 1
7 3310-81250 • • Pin, lever 1
8 3310-81230 • • Lever 1
9 2850-81120 • Pump cover 1
10 3310-81130 • Screw 1
11 3304-81140 • Gasket,pump 1
12 3304-81150 • Diaphragm,pump 1
13 2850-81290 • Gasket 1
14 3310-81260 • Diaphragm 1
15 3310-81280 • Cover 1
16 1480-81420 • Plug 1
17 3356-81340 • Throttle valve 1
18 2670-81410 • Throttle spring 1
Key# PART NUMBER DESCRIPTION
Q'TY
/UNIT
19 2850-81371 • Throttle shaft 1
20 3350-81380 • Idle spring 1
21 2630-81330 • Idle screw 1
22 2670-81440 • Throttle lever 1
23 1148-81390 • Ring 1
24 1491-81160 • L needle spring 1
25 2869-81170 • L needle 1
26 3080-81320 • H needle spring 1
27 2850-81330 • H needle 1
28 2850-81190 • Screw 1
29 2670-81450 • Choke valve 1
30 2850-81430 • Bush 1
31 2850-81350 • Choke spring 1
32 2850-81461 • Choke shaft 1
33 3310-81351 • Screw 4
34 2880-81470 • Screw, valve 3
Key# PART NUMBER DESCRIPTION
Q'TY
/UNIT
2 3320-91140 Plug 13x19 1
3 2670-91150 Driver 1
4 2939-52110-50 Sprocket nose bar ( ❈2) 1 16 inch
3608-52112 Sprocket nose bar ( ❈1) 1 16 inch
5 2939-52210-50 Chain ( ❈2) 1 95VP-66E
2932-52210-50 Chain ( ❈1) 1 91VG-57E
6 848CB48P10 Sprocket nose bar ( ❈2) 1 18 inch
7 T2015-52210-50 Chain ( ❈2) 1 95VP-72E
8 3356-97110 Protector ( ❈2) 1
3637-97110 Protector ( ❈1) 1
9 T2100-06020 Gasket kit 1 (OP)
10 2670-96210 Wrench (for clutch) 1 (OP)
11 2670-96220 Stopper (for piston) 1 (OP)
12 2670-96240 Wrench (for clutch ASS’Y) 3 (OP)
13 3330-97310 Gauge (for air gap) 1 (OP)
14 2850-96410 Wrench (T20xT25xT27) 1 (OP)
15 2670-96510 Guide (for break spring) 1 (OP)
Key# PART NUMBER DESCRIPTION NOTE
Q'TY
/UNIT
G4100
❈1: for China ❈2: for Asian countries except China
