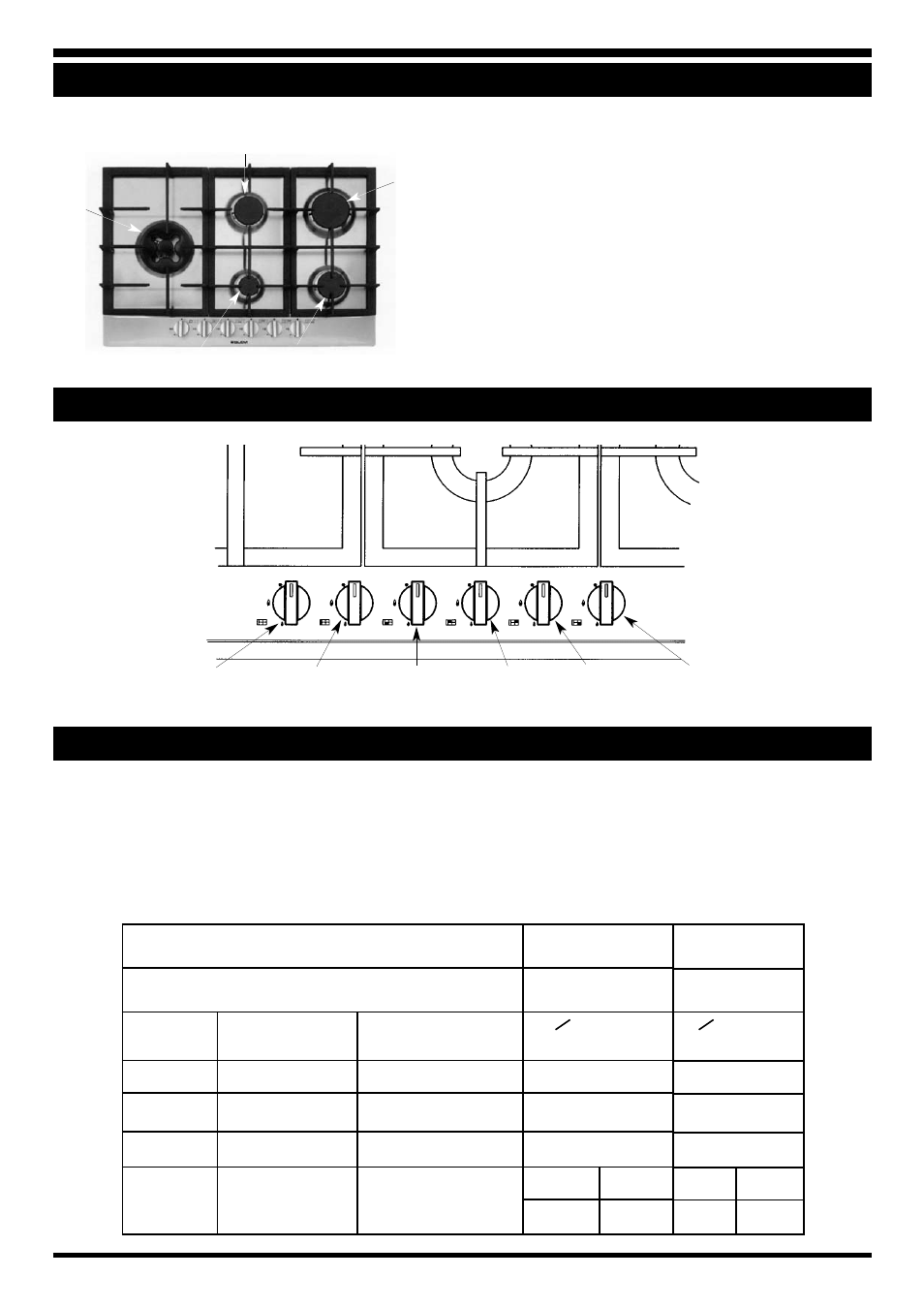

PRODUCT FEATURES
CONTROL PANEL
75cm Built-In Gas Hob with front commands:-
1. Auxiliary Burner (A)
2. Semi-Rapid back burner (SR)
3. Rapid Burner (R)
4. Semi-Rapid Front Burner (SR)
5. Dual Burner
Fig.1
4
Outer wok
burner
control knob
Inner wok
burner
control knob
Front left
burner
control knob
Back left
burner
control knob
Back right
burner
control knob
Front right
burner
control knob
Fig.2
TECHNICAL INFORMATION
Voltage : 230V ~ 50 Hz
Max Burner Power: 11.8 kW
Max Electrical Power: 0.6kW
Dimensions: 750mm x 500mm x 50mm
Gas Burner Technical Data
GAS TYPE G20 (NAT GAS)
GAS PRESSURE 20 mbar
Burners Power Inputs
Max (kW)
Power Inputs
Min (kW)
O Injectors
A 1.00 0.30 0.72
SR 1.75 0.44 0.97
R 3.00 0.75 1.15
Dual 4.30 0.30
Inner
0.66
Outer
1.00
G30/31 (LPG)
37 mbar
O Injectors
0.50
0.65
0.85
Inner Outer
0.46 0.64
