Installing Flat Panel Screen to Wall Plate
3

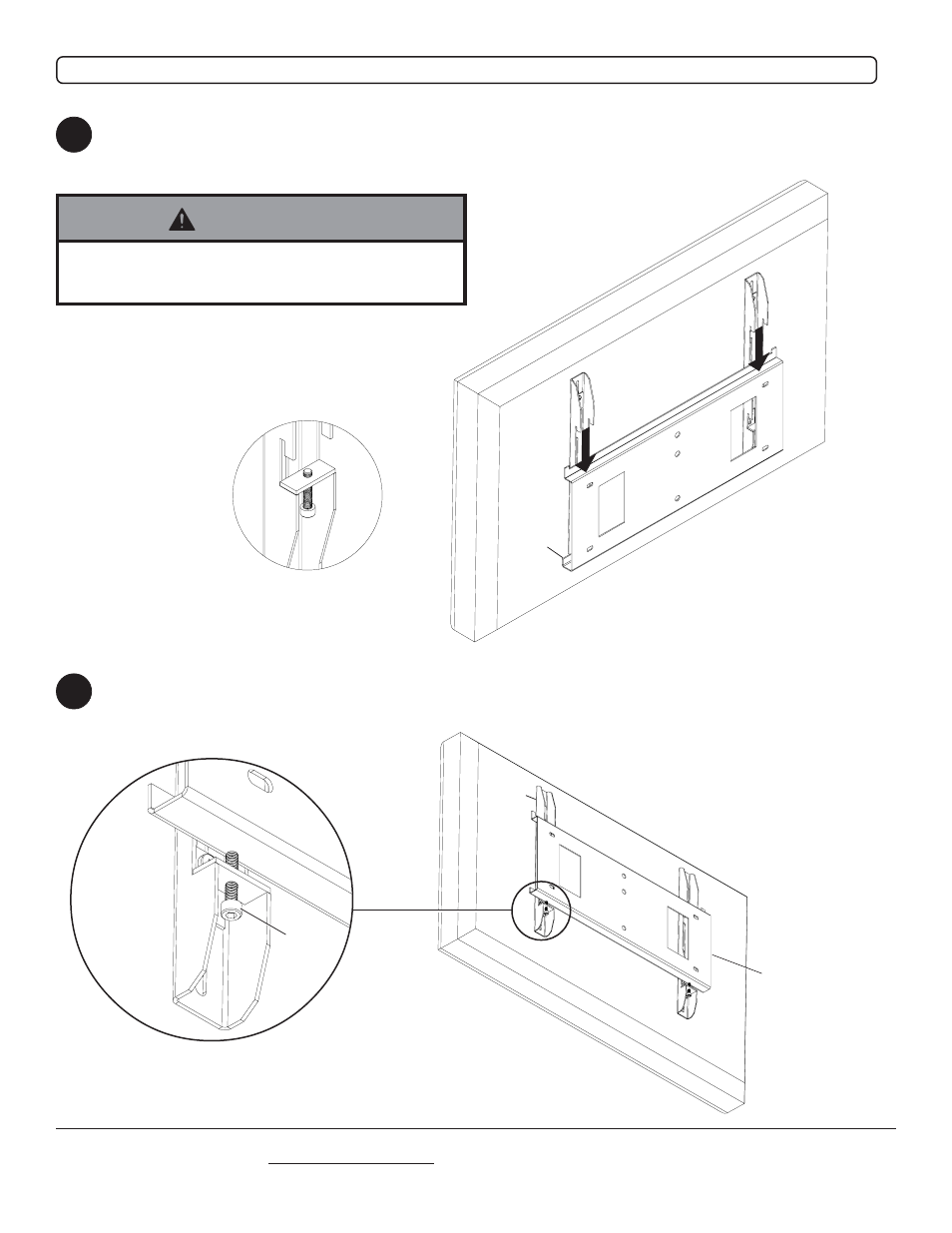

Insert two M5 x 25 mm socket head cap screws (DD) into mounting brackets (BB) and tighten a few turns to hold in
place as shown in detail 1. Hang screen by the mounting brackets (BB) on wall plate (AA) as shown below. Make
sure screen is safely hooked on mount before letting go. Screen can be adjusted horizontally if desired.
Secure mounting brackets to wall plate (AA) with socket head cap screws as shown below and in detail 1. Tighten
screws with 4 mm security allen wrench (FF).
2
Adding Safety to Mount
BB
AA
BB
Note: Before starting this step refer to accompanying instruction sheet to install adapter brackets to flat panel screen.
DD
AA
BB
DETAIL 1
• Always use an assistant or mechanical lifting equip-
ment to safely lift and position the plasma television.
WARNING
detail 1
