PART IDENTIFICATION CHART

M10 Nylon Locknut (32, 33)

M10 x 90mm Bolt (44)

M10 x 75mm Bolt (43)

M10 x 55mm Bolt (42)

M10 x 28mm Bolt (45)

M10 x 25mm Bolt (36)

M6 x 138mm Bolt (31)

M8 x 42mm Bolt (38)

M8 x 32mm Bolt (40)

M6 x 25mm Screw (48)

M6 Nylon Locknut (47)

M8 Washer (39)

M4.2 x 20mm Self-tapping Screw (46)

M8 Large Washer (41)

M6 x 16mm Screw (37)

M8 Nylon Locknut (12)

M10 Washer (34, 35)

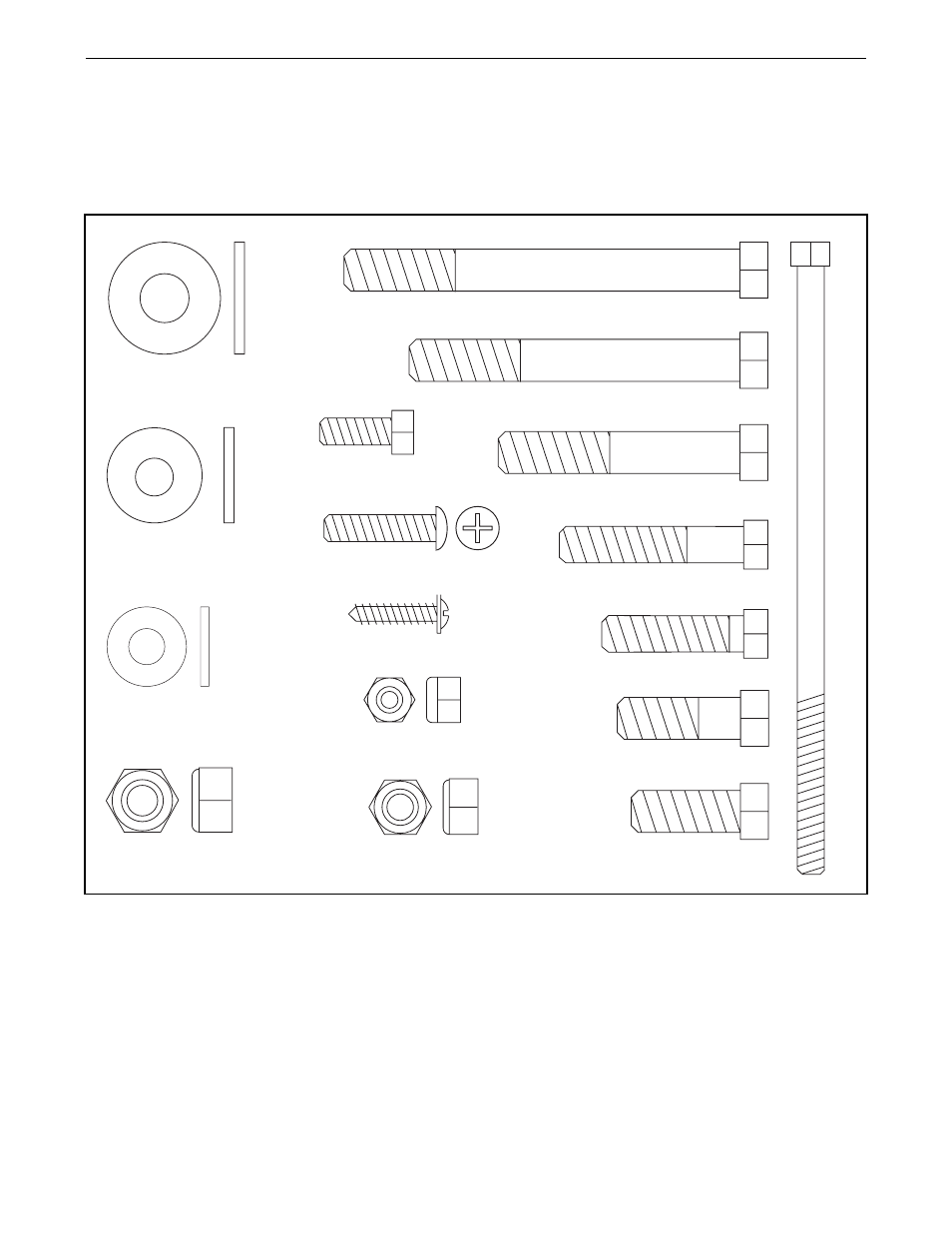

Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each
drawing is the key number of the part from the Part List on page 10.

Note: Some small parts may have been

pre-attached for shipping purposes. If a part is not in the parts bag, check to see if it has been pre-
attached.
