4
ASSEMBLY
WARNING: If received assembled, re-
peat all steps to ensure your unit is properly as-
sembled and all fasteners are secure.
Examine parts for damage. Do not use dam-
aged parts.
NOTE: If you need assistance or find that parts
are missing or damaged, call 1-800-554-6723.
TOOLS REQUIRED
S Hex wrench (provided)
HANDLEBAR ASSEMBLY
DANGER: RISK OF CUT. To avoid se-
rious injury, the barrier portion of the handle-
bar must be installed as shown on the upper
tube of the powerhead to provide a barrier be-
tween operator and the spinning blade. Attach
tube clamp above arrow on safety warning de-
cal on the upper tube (powerhead end of unit).
Ensure handlebar is positioned on handlebar
clamp between the arrows on the handlebar
decal.
NOTE: The tube clamp base has four spacer
tabs attached. These tabs are provided to
adapt this attachment for use with power-
heads that have a 1" diameter upper tube (the
tube clamp will not tighten down securely on
the 1" diameter upper tube without using these
spacer tabs). The tabs must be broken off
completely before use and placed over the
screw holes on the clamp base. These tabs
are not needed for powerheads with a 7/8" up-
per tube.

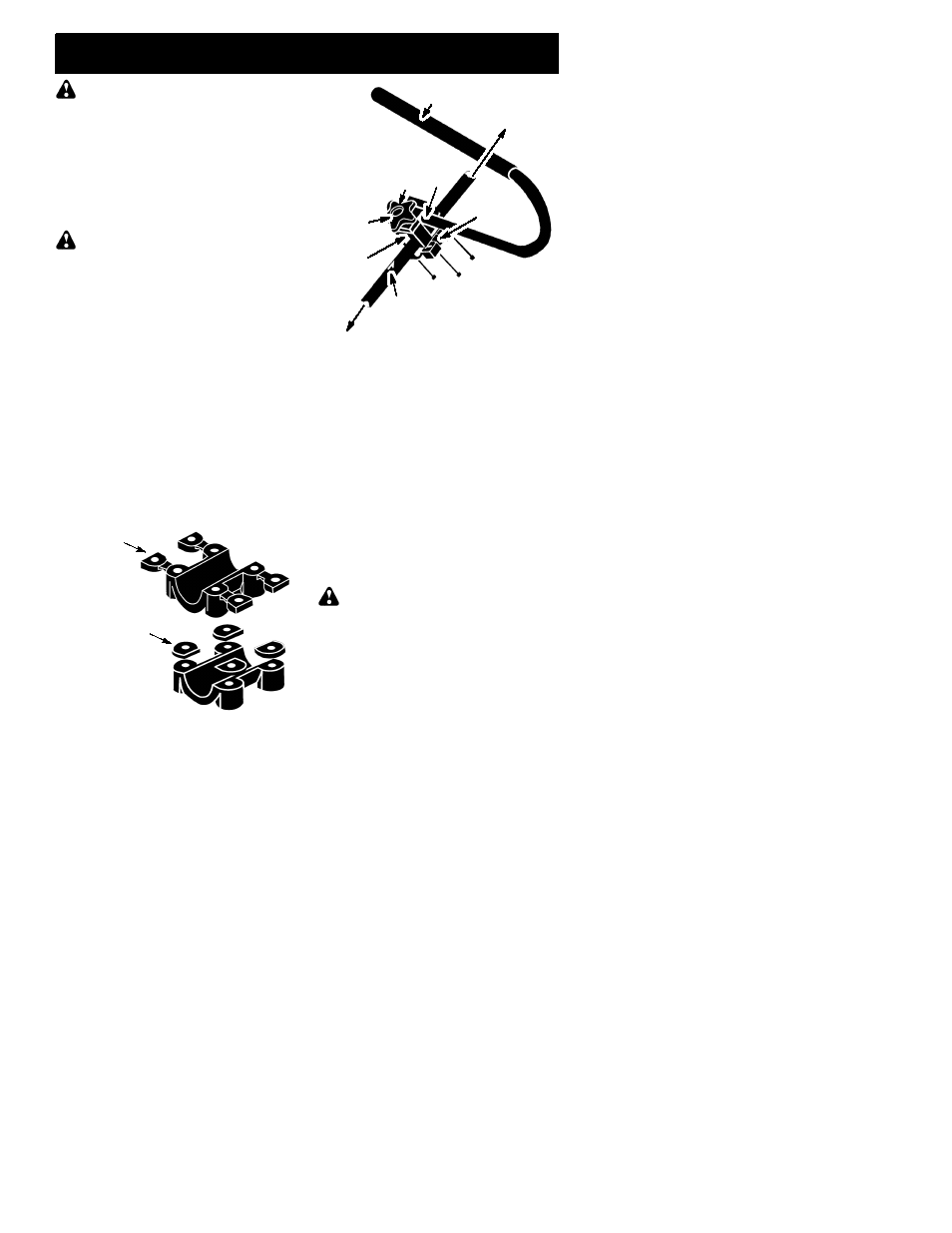

Spacer Tabs
HANDLEBAR CLAMP BASE
Spacer Tabs
positioned for use
on 1" diameter
upper tube
1. Place the tube clamp over the upper tube
above the arrow on the safety decal.
2. Position the clamp base under the upper
tube and align the tube clamp and clamp
base screw holes (use spacer tabs be-
tween tube clamp and clamp base if nec-
essary to secure clamp, i.e. for 1" diame-
ter upper tube).
POWERHEAD
END
ATTACHMENT
END
Screws
Clamp
Base
Handlebar Clamp
between arrows on
handlebar decal
Clamp
Knob
Tube
Clamp
Handlebar
Arrow on
Safety Decal
3. Insert four screws into the screw holes.
4. Secure tube clamp by tightening screws
with the hex wrench.
5. Position the handlebar as shown, ensur-
ing the handlebar is positioned on the
handlebar clamp between the two arrows
on the handlebar decal.
6. Retighten handlebar by turning clamp
knob clockwise until handlebar is secure
and stationary in clamp (clamp knob can-
not be overtightened).
SHOULDER STRAP ASSEMBLY
WARNING: Proper shoulder strap and
handlebar adjustments are required before use.
The shoulder strap clamp must be installed as
shown above the handlebar on the upper tube
(powerhead end of unit).
NOTE: The lower shoulder strap clamp has
two spacer tabs attached. These tabs are pro-
vided to adapt this attachment for use with
powerheads that have a 1" diameter upper
tube (the shoulder strap clamp will not tighten
down securely on the 1" diameter upper tube
without using these spacer tabs). The tabs
must be broken off completely before use and
placed over the screw holes on the lower
shoulder strap clamp. These tabs are not
needed for powerheads with a 7/8" upper
tube.
