7

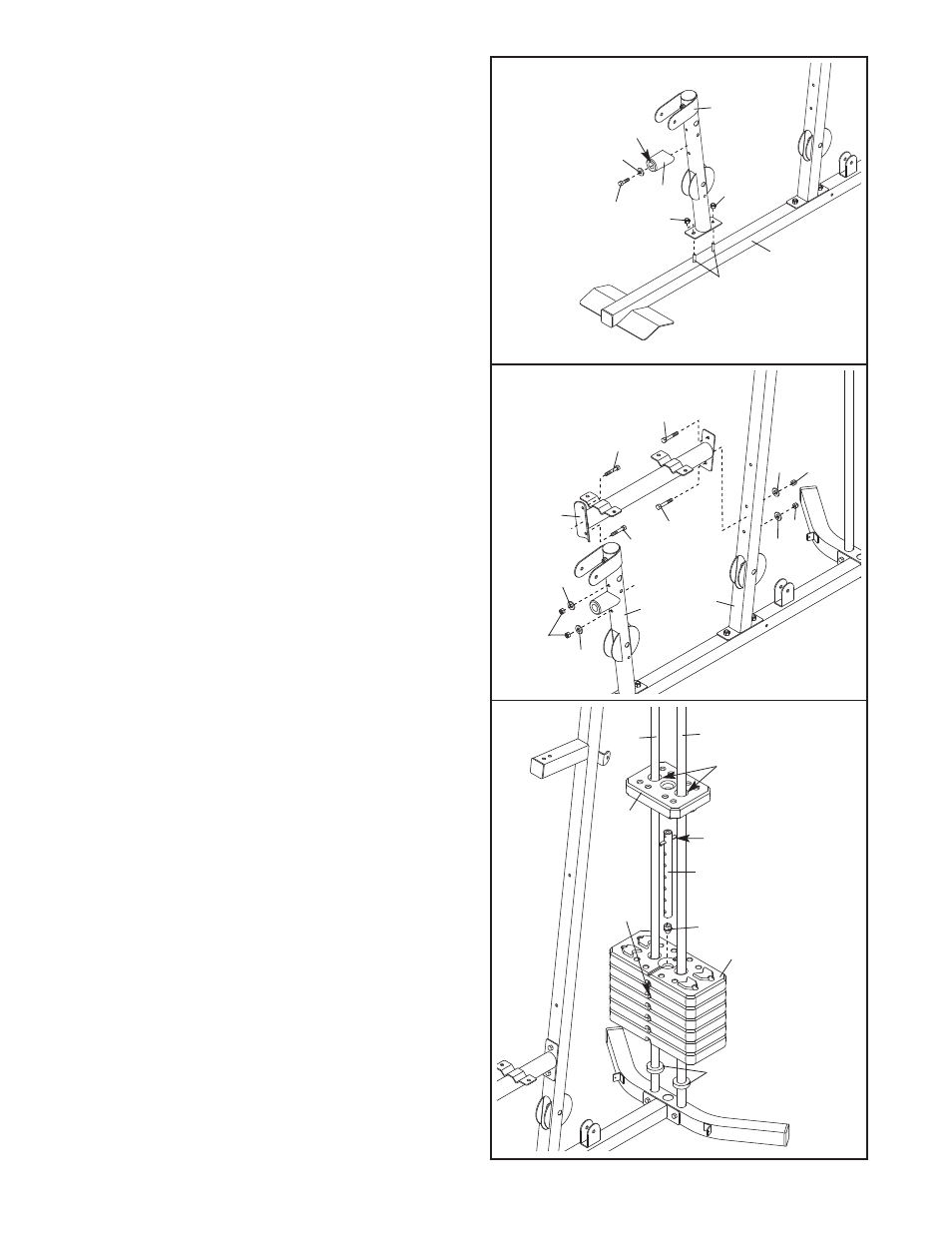

3. Attach the Front Leg (7) to the Base (1) with the
two M8 x 63mm Carriage Bolts (87) and two M8
Nylon Locknuts (58).
Do not tighten the
Locknut yet.
Attach the Leg Bumper (60) to the Front Leg (7)
with an M4 x 20mm Self-tapping Screw (69) and
an M4 Washer (33).
Make sure the end of the
Bumper is pointing up.
4. Attach the Seat Frame (6) to the Upright (3) with
two M8 x 65mm Bolts (68), two M8 Washers (59),
and two M8 Nylon Locknuts (58).
Do not tighten
the Locknuts yet.
Attach the Seat Frame (6) to the Front Leg (7)
in the same manner.
5. Slide the two Weight Bumpers (27) onto the
Weight Guides (21). Orient the six Weights (22)
with the pin holes on the bottom as shown. Slide
the Weights onto the Weight Guides.
Insert the Weight Tube Bumper (23) into the
Weight Tube (24). Insert the Weight Tube into the
six Weights (22).
Make sure the pin on the
Weight Tube is oriented as shown.
Lubricate the indicated holes in the Top Weight
(25) with the included grease packet. Slide the
Top Weight onto the Weight Guides (21).
3
4
87
58
58
69
33
Up
60
7
1
6
68
68
68
59
59
59
59
3
7
58
58
58
68
5
25
21
21
22
27
23
24
Pin
Pin
Hole
Grease
