Weider 831.159833 - Manual (Page 14)

14

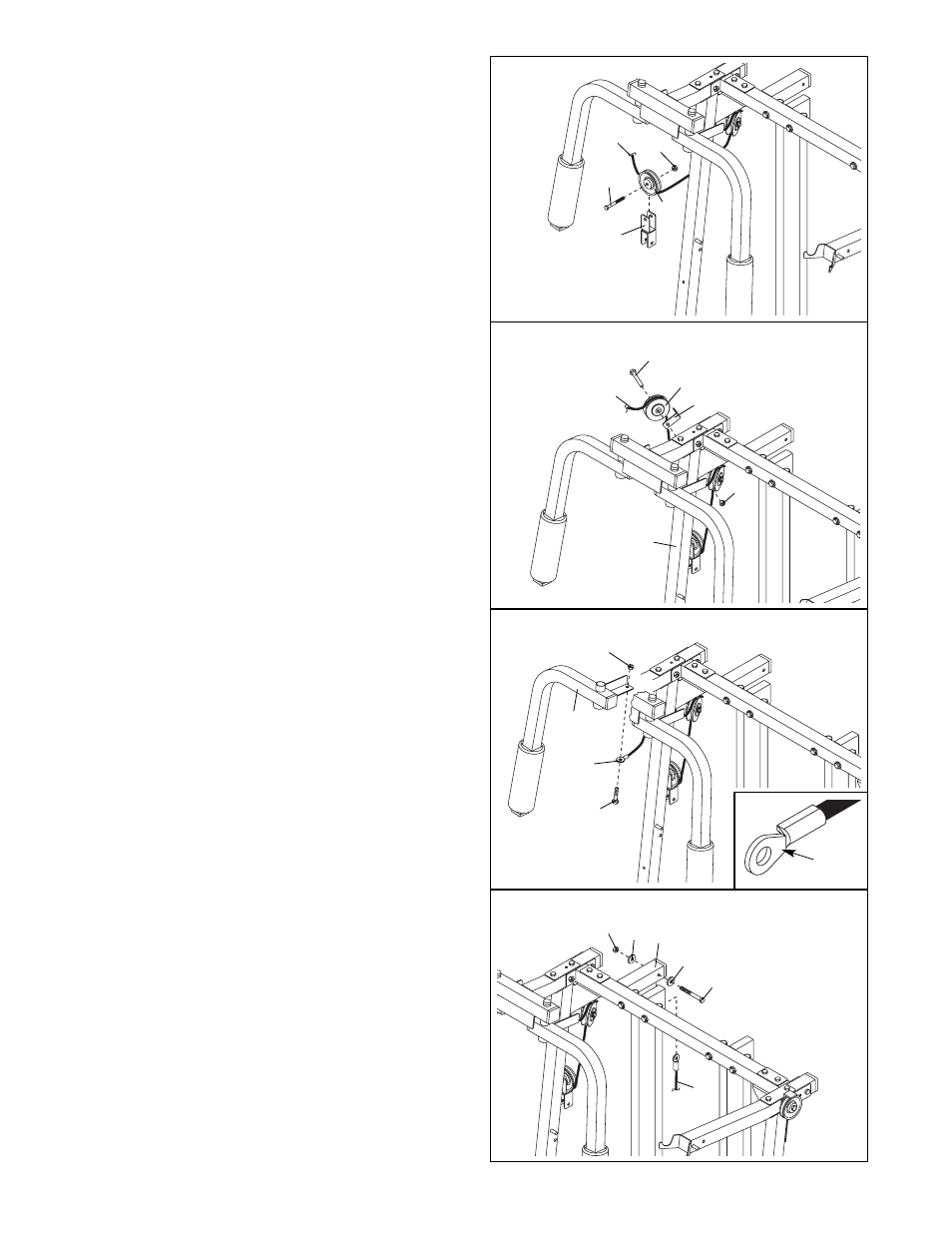

26. Remove another “V”-pulley (34) from the bag
labeled “PULLEY BAG 2.”
Wrap the Butterfly Cable (73) over the “V”-pulley
(34). Attach the “V”-pulley and a Long Cable Trap
(37) to the bracket on the back of the Butterfly
Upright (4) with an M10 x 58mm Bolt (114) and
an M10 Nylon Locknut (90). Make sure the Long
Cable Trap is oriented to hold the Cable in the
groove of the “V”-pulley.
26
25. Wrap the Butterfly Cable (73) under a 90mm
Pulley (35). Attach the Pulley to the Double “U”-
bracket (31) with an M10 x 45mm Bolt (94) and
an M10 Nylon Locknut (90).
25
35
73
31
94
90
4
114
73
34
37
27. Attach the Butterfly Cable (73) to the bracket on
the Right Butterfly Arm (19) with an M8 x 20mm
Shoulder Bolt (84) and an M8 Nylon Locknut (86).
Make sure that the flat side of the eyelet on
the cable (see the inset drawing) is against
theButterfly Arm.
28. Identify the Rear Cable (70). It is approximately
95 1/8” long, and it has an eyelet on one end and
a threaded shaft on the other.
Attach the eyelet on the Rear Cable (70) inside
the Center Top Frame (8) with an M10 x 67mm
Bolt (82), two M10 Washers (97), and an M10
Nylon Locknut (90).
27
28
90
90
8
84
73
86
19
70
82
97
97
Flat
Side
