Weider WEBE15100 User Manual
Page 10

10

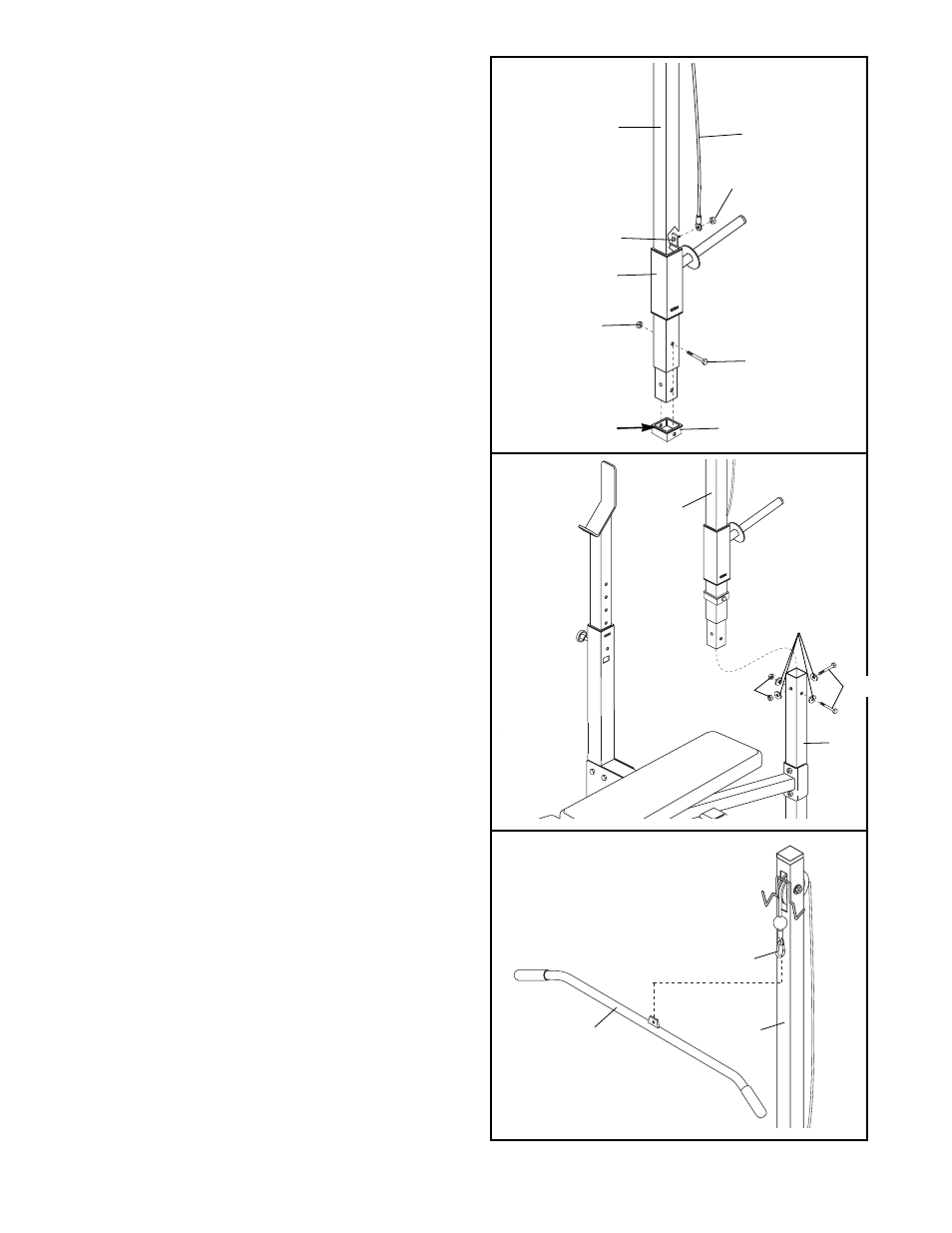

15. Secure the looped end of the Cable (34) to the
M19 x 19mm Bolt (46) in the bracket on the
Weight Carriage (32) with an M10 Nylon Locknut
(19).
Next, slide the Carriage Stop (39) onto the Lat
Tower (26). Make sure the Carriage Stop is
turned so that the lip is on top as shown.
Secure the Carriage Stop with an M8 x 70mm
Bolt (54) and an M8 Nylon Locknut (13).
16. Insert the Lat Tower (26) into the Lat Tower Base
(35). Make sure that the Lat Tower is turned as
shown. Secure the Lat Tower with two M10 x
65mm Bolts (18), four M10 Washers (24), and
two M10 Nylon Locknuts (19).
17. Attach the Lat Bar (36) to the Cable Clip (33) and
place it in the Lat Bar Rest on the Lat Tower (26).
18. Make sure that all parts are properly tightened
before you use the weight bench. The use of
all remaining parts will be explained in USING
THE WEIGHT BENCH on pages 11 and 12.
26
34
19
32
46
13
54
39
Lip
15
17
26
19
36
26
33
24
18
35
