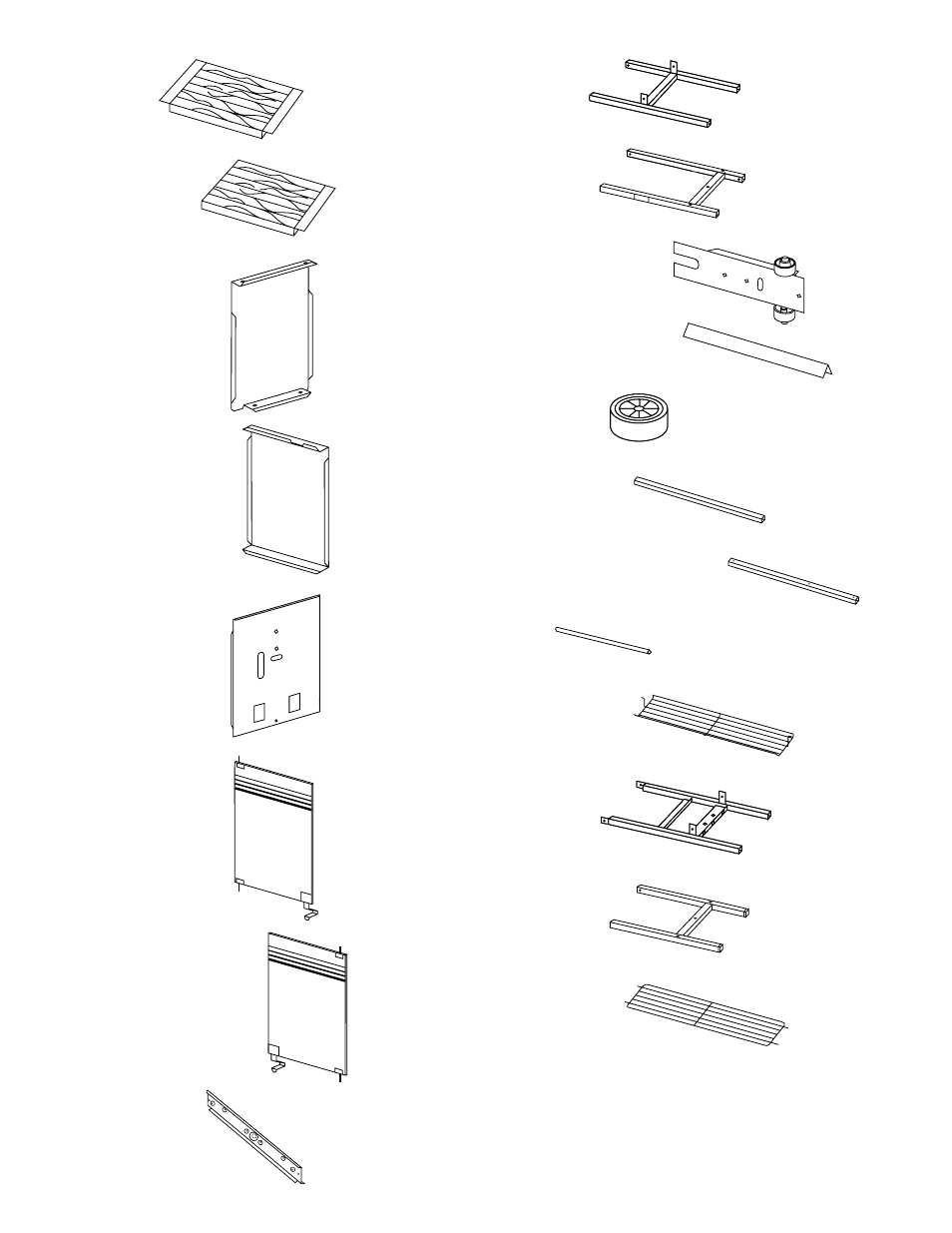

Left frame
Wheel frame
Tank panel assembly
Five long Flavorizer Bars
Two wheels
Frame connector
Frame connector with bushings
Axle
Warm-Up Basket
Right frame
Caster frame
Warming rack
8
Work table
Two swing tables
Left end panel (#1)
Panels and doors
are identified with
removable stickers.
Please leave on during
assembly.
Three back panels (#2)
Right end panel (#3)
Left hand glass door
assembly (LH)
Two right hand glass door
assemblies (RH)
Spacer bracket
W
EB
E
R
W
EB
E
R
W
EB
E
R
W
EB
E
R
1
2
3
LH
RH
