Planning Information
36" (914) Gas Cooktop
M O D E L C T 3 6 G
Dimensions in parentheses are in
millimeters unless otherwise specified.
4

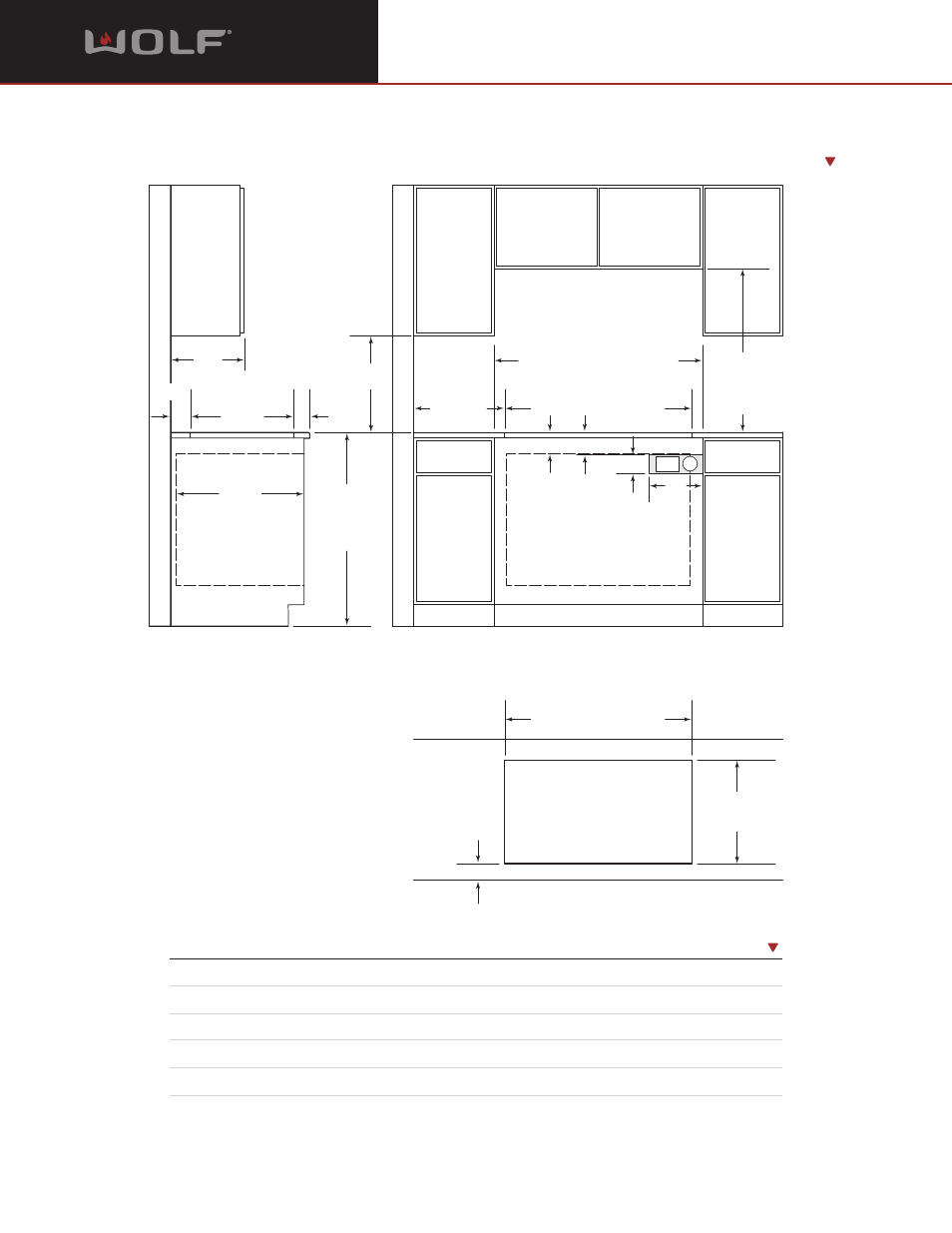

I N S T A L L A T I O N S P E C I F I C A T I O N S
9"* min (229)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
18"
(457)
19 1 / 4 " (489)
COOKTOP CUT-OUT
DEPTH
2 1 / 2 " min
(64)
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
13" max
(330) 30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
2 1 / 2 "**
(64)
24" min
(610)
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop.
**Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.
35" (889)
COOKTOP CUT-OUT WIDTH
35" (889)
COOKTOP CUT-OUT WIDTH
39" (991)
RECOMMENDED CABINET WIDTH
36" min (914)
4" (102)
10"
(254)
3 1 / 2 " (89) E G
36-INCH OVEN OPENING
3 3 / 4 " min (95)
2 1 / 2 " min
(64)
FRONT OF COUNTERTOP
19 1 / 4 " (489)
COOKTOP
CUT-OUT DEPTH
D I M E N S I O N S
Recommended Cabinet Width 39" (991)
Minimum Cabinet Depth 22 3 / 4 " (578)
Cooktop Cut-Out Width 35" (889)
Cooktop Cut-Out Depth 19 1 / 4 " (489)
Location of Electrical and Gas Supply Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
