38

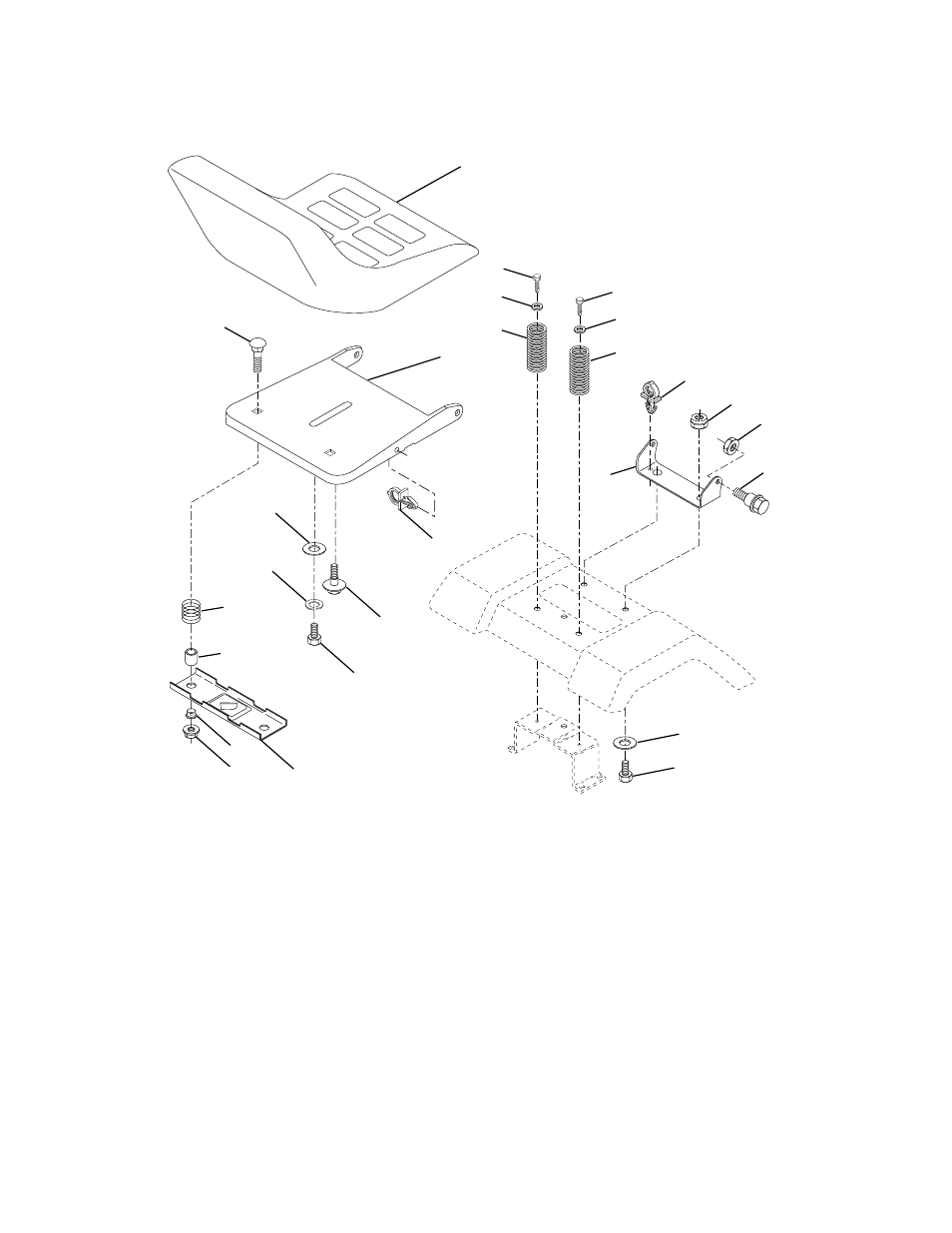

REPAIR PARTS
TRACTOR - - MODEL NUMBER WET1338B
SEAT
KEY PART
NO. NO. DESCRIPTION
1 127426X Seat
2 140551 Bracket Seat Pivot
3 71110616 Bolt Hex 3/8 - 16 x 1
4 19131610 Washer 13/32 x 1 x10Ga.
5 145006 Clip Push-In Hinged
6 73800600 Nut Lock Hex w/Ins 3/8 - 16
7 124181X Spring Seat Cprsn 2 250 Blk Zi
8 17000616 Screw 3/8-16 x 1.5
9 19131614 Washer 13/32 x 1 x 14 Ga
10 182493 Pan Pnt Seat (Blk)
12 121246X Bracket Pnt Mounting Switch
13 121248X Bushing Snap Blk Nyl
KEY PART
NO. NO. DESCRIPTION
14 72050412 Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2
15 134300 Spacer Split .28 x .96
16 121250X Spring Cprsn
17 123976X Nut Lock 1/4 Lge Flg
21 171852 Bolt Shoul der 5/16-18 Unc-2A
22 73800500 Nut Lock Hex w/Ins 5/16 - 18
23 71110814 Bolt Hex
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga
25 127018X Bolt Shoul der 5/16-18 x .62
26 10040800 Washer Lock Hvy Hlcl Spr 1/2
26
23
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
2
6
22
21
5
10
5
14
seat_lt.bolt_1
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
