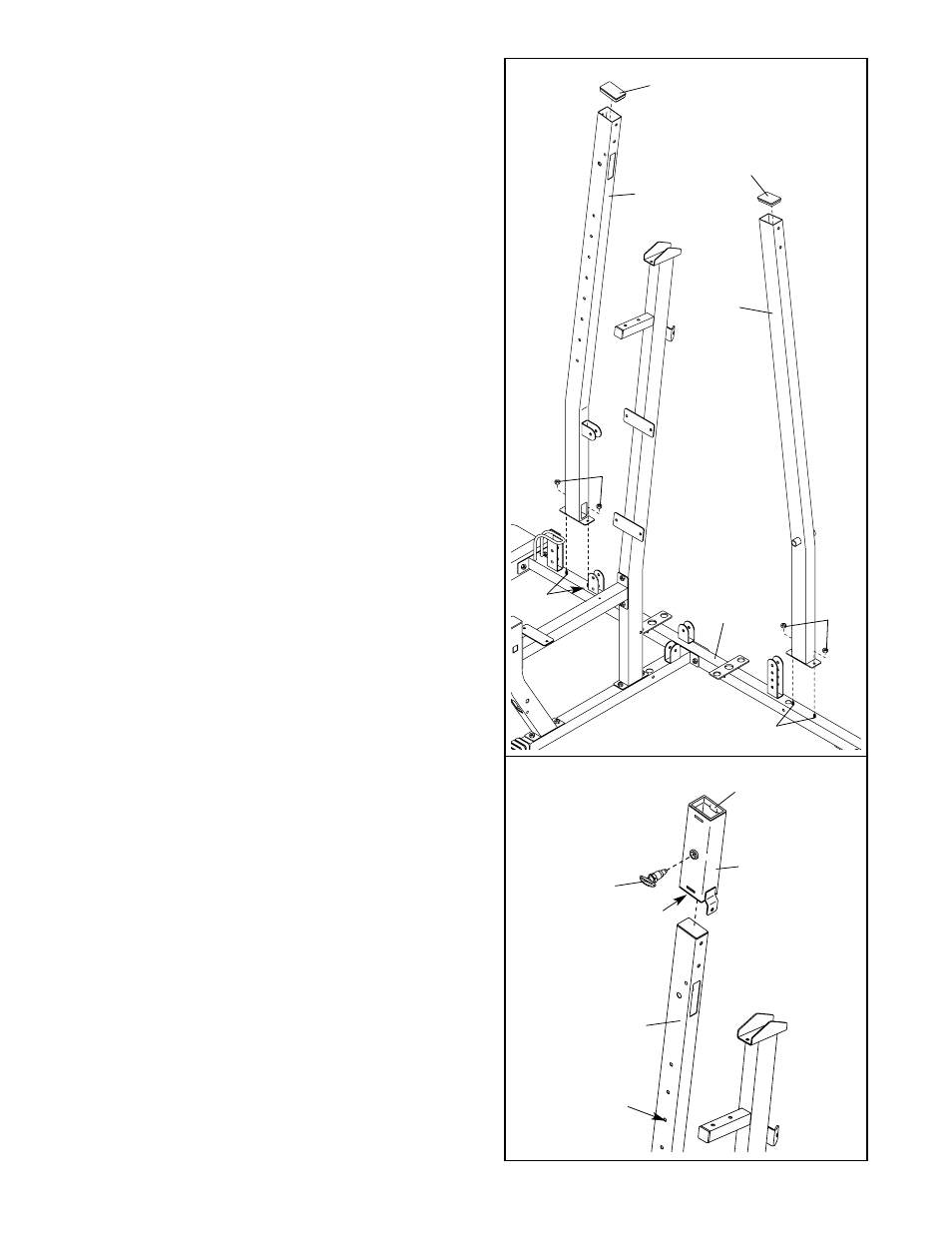

7. Press a 2” x 3” Inner Cap (58) into the top of the
Squat Upright (4). Slide the Squat Upright onto the
two indicated 5/16” x 2 1/2” Carriage Bolts (110) in
the Long Base (120). Finger tighten a 5/16” Nylon
Locknut (86) onto each Carriage Bolt. Do not tight-
en the Nylon Locknuts yet.
Press a 2” x 3” Inner Cap (58) into the top of the
Swivel Upright (5). Slide the Swivel Upright onto the
two indicated 5/16” x 2 1/2” Carriage Bolts (110) in
the Long Base (120). Finger tighten a 5/16” Nylon
Locknut (86) onto each Carriage Bolt. Do not tight-
en the Nylon Locknuts yet.
7
8
58
58
5
4
120 86
86
110
110
46
66
66
65
5
Adjustment
Hole
8. Press two Swivel Bushings (66) into the Swivel
Carriage (46).
Tighten an Adjustment Handle (65) into the Swivel
Carriage (46). Orient the Swivel Carriage as shown.
Slide the Carriage onto the Swivel Upright (5) and
engage the Adjustment Handle into an adjustment
hole in the Swivel Upright.
