Wolf Appliance Company PW302210R - Manual (Page 4)

4

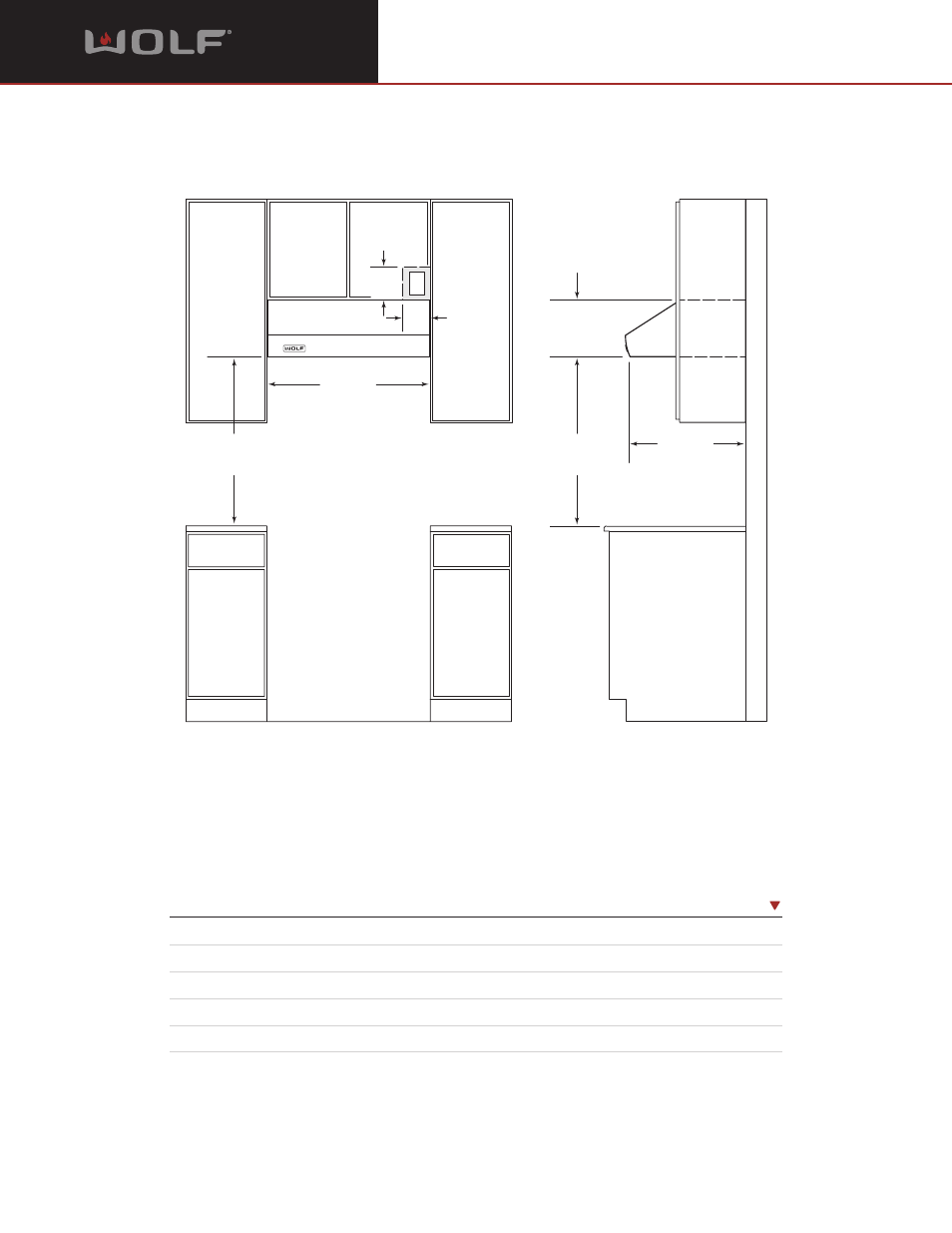

30" TO 36"
(762–914)
TO COUNTERTOP
22" (559)
DEPTH OF HOOD
30" (762)
WIDTH OF HOOD
30" TO 36"
(762–914)
TO COUNTERTOP
10" (254)
HEIGHT
OF HOOD
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL
NOTE: Pro low-profile hoods have an adjustable discharge.
D I M E N S I O N S
Overall Width of Hood 30" (762)
Overall Height of Hood 10" (254)
Overall Depth of Hood (excluding rail) 22" (559)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
I N S T A L L A T I O N S P E C I F I C A T I O N S
Dimensions in parentheses are in
millimeters unless otherwise specified.
Planning Information
Pro Low-Profile Wall Ventilation Hood
M O D E L P W 3 0 2 2 1 0 ( R )
