Weider WEBE1137.0 - Manual (Page 7)

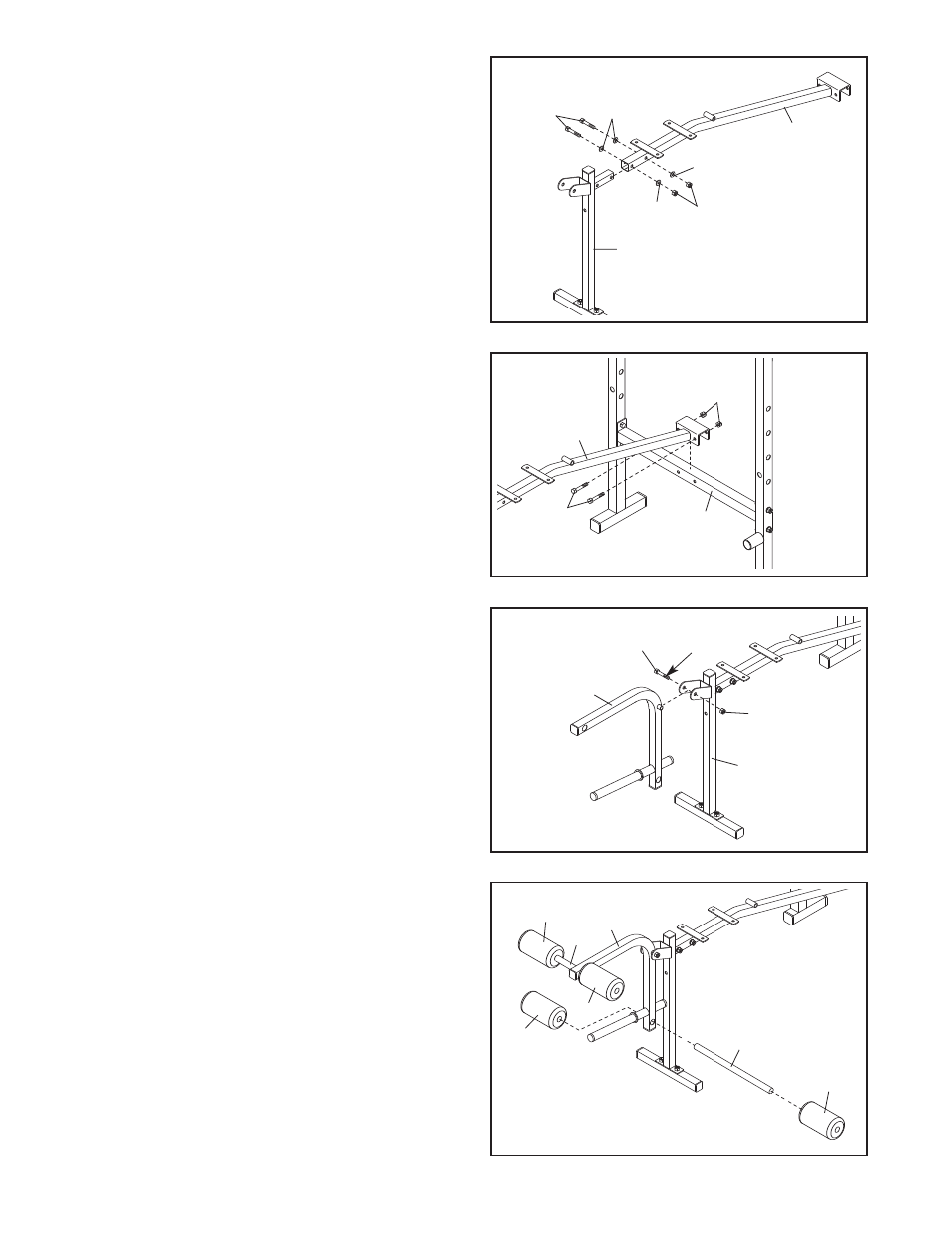

3. Attach the Front Leg (8) to the Frame (2) with two
M8 x 43mm Bolts (39), four M8 Washers (16),
and two M8 Nylon Locknuts (17). Do not tighten
the Nylon Locknuts yet.
4. Attach the Frame (2) to the Crossbar (3) with two
M8 x 55mm Bolts (18) and two M8 Nylon Locknuts
(17).
5. Apply some of the included grease to an M10 x
63mm Bolt (32). Attach the Leg Lever (4) to the
Front Leg (8) with the Bolt and an M10 Nylon
Locknut (33). Do not overtighten the Nylon
Locknut; the Leg Lever must pivot easily.
3
17
2
39 16
16
8
16
4
2
3
17
18
5
33
4
Grease 32
8
7
6. Insert a Long Pad Tube (10) into a hole in the
Leg Lever (4). Slide two Foam Pads (23) onto the
Long Pad Tube.
Attach the other Long Pad Tube (10) and
Foam Pads (23) in the same way.
10
10
4
23
23
23
23
6
