All products manufactured by the Wilbur Curtis Company are thoroughly inspected at the factory and
are warranted to be free of all defects and faulty workmanship. The C500AP unit is packaged for
maximum protection for shipping. Make sure the shipping carton is not damaged or punctured. Un-
pack the carton carefully, inspecting the contents for any damage that may have occurred in transit.
Report any damage immediately to the freight company.
C500AP Airpot Coffee Brewer
UNPACKING
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
123
12345678901234567890123456789012123456789012345678901234567890121234567890123456
12345678901234567890123456789012123456789012345678901234567890121234567890123456
12345678901234567890123456789012123456789012345678901234567890121234567890123456
12
12
16½"
1"
25¾" D500AP
29 " D500APT
4"
16½"
14 " - D500AP
18" D500APT
20½" D500AP
23¾" D500APT
9"
2"
2½"
1"
7
8
1¼"

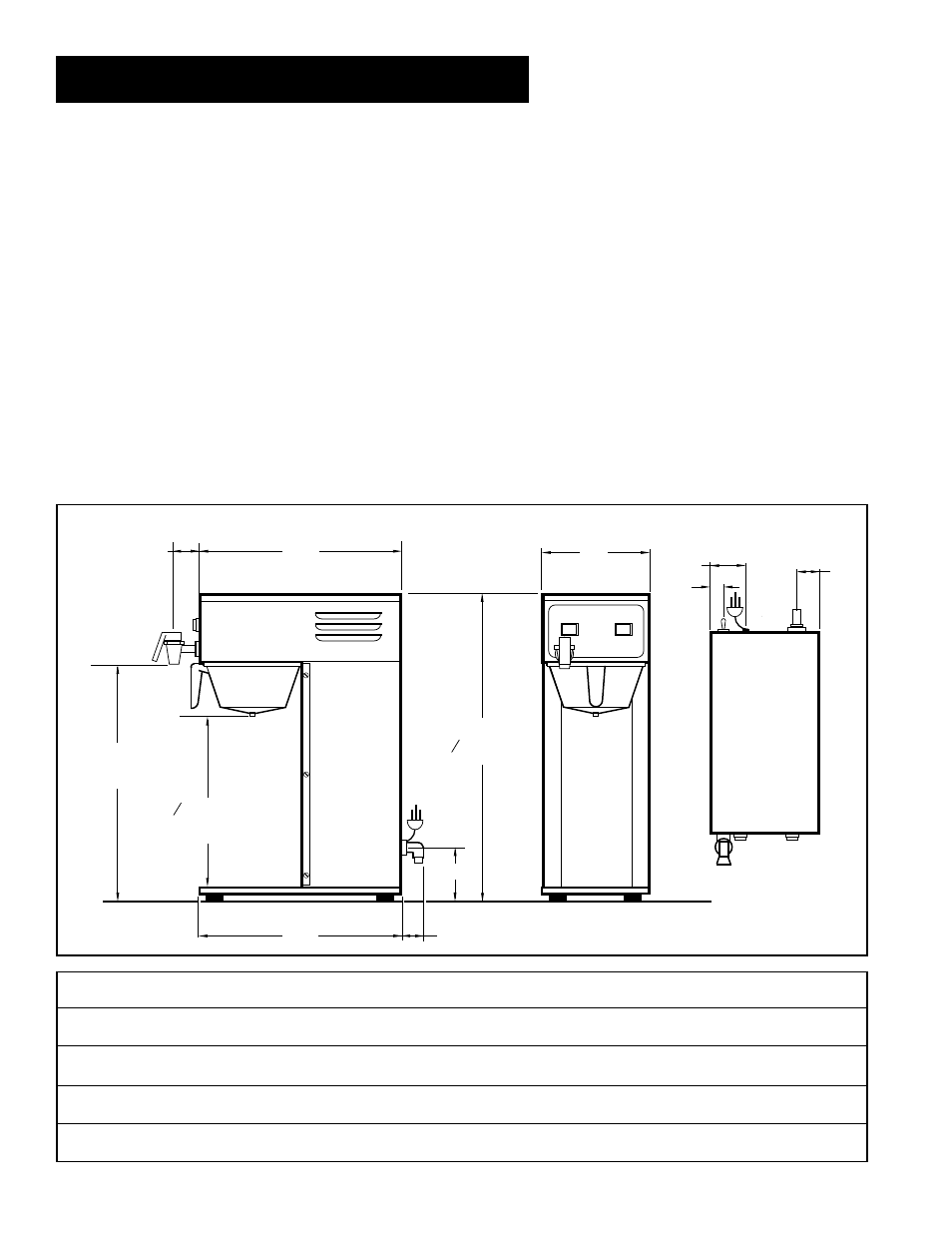

ROUGH-IN DRAWING - C500AP
BREW SETUP
2.2 LITERS
ELECTRICAL
120 Volts, 60 Hz
POWER REQUIREMENTS
1675 Watts, 14 Amps
CORD & PLUG
6 Ft./NEMA 5-15P
WATER HOOK-UP
¼" COMPRESSION FITTING FOR WATER CONNECTION
