4
1. Remove wing nut from shield.
2. Insert bracket into slot as shown.
3. Pivot shield until bolt passes through hole
in bracket.
4. Securely tighten wing nut onto bolt.
Wing Nut
Bracket
Slot
Shield
Gearbox
OPERATION

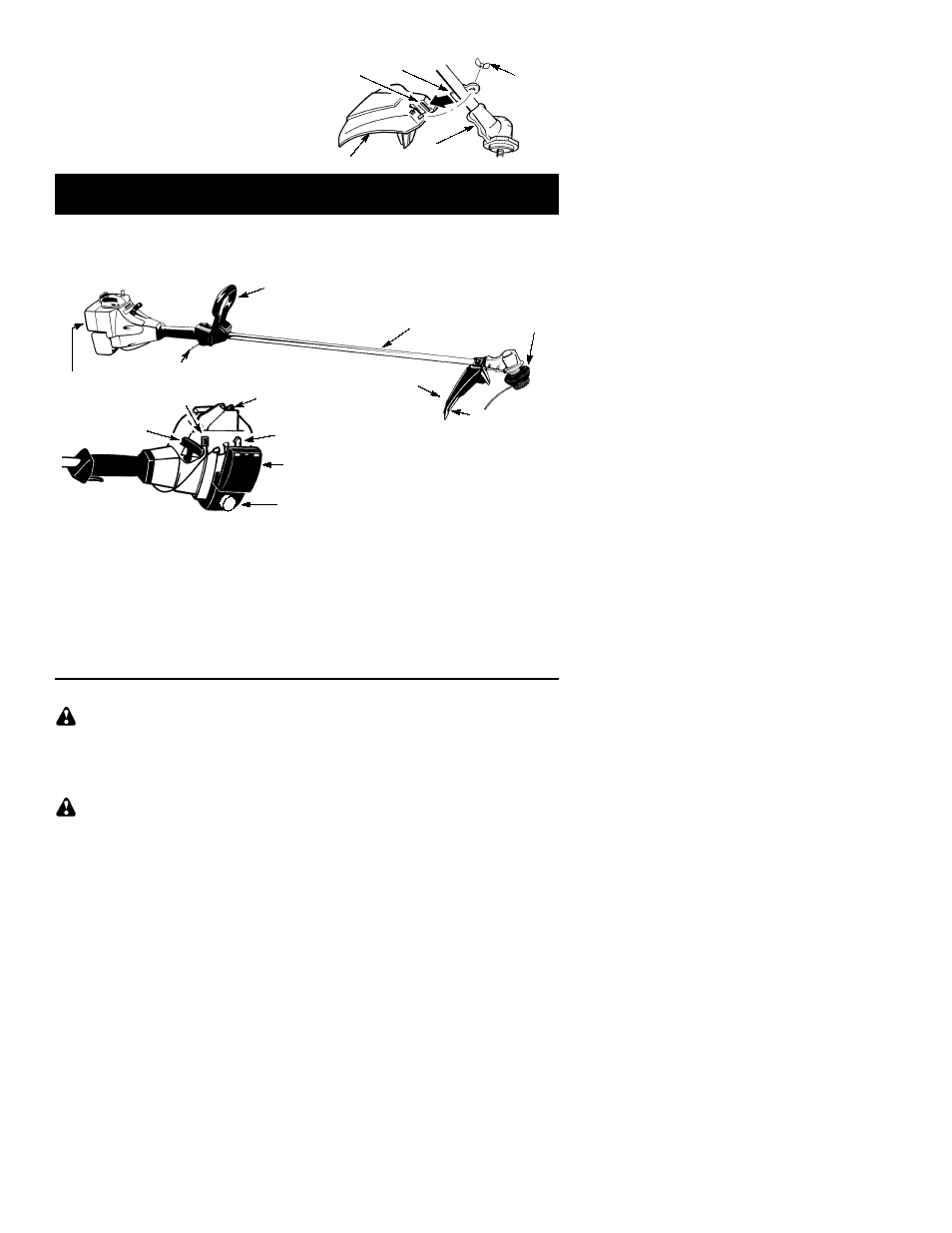

KNOW YOUR TRIMMER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
Primer Bulb
Line Limiter
Blade
Fuel Mix
Fill Cap
Assist Handle
Starter
Handle
ON/OFF Switch
Throttle Trigger
Choke Lever
Spark Plug
Shield
Trimmer
Head
Tube
Muffler
ON/OFF SWITCH
The ON/OFF switch is used to stop engine. To
stop the engine, move the switch to the OFF
position.
PRIMER BULB
The PRIMER BULB removes air from the car-
buretor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer
bulb by pressing it and allowing it to return to
its original form.
CHOKE
The CHOKE helps to supply fuel to the engine
to aid in cold starting. Activate the choke by
moving the choke lever to the FULL CHOKE
position. After the engine attempts to start, move
the choke lever to the HALF CHOKE position.
Once engine has started, move the choke lever
to the OFF CHOKE position.
BEFORE STARTING ENGINE
WARNING: Be sure to read the fuel
information in the safety rules before you be-
gin. If you do not understand the safety rules,
do not attempt to fuel your unit. Call
1-800-554--6723.
FUELING ENGINE
WARNING: Remove fuel cap slowly
when refueling.
This engine is certified to operate on unleaded
gasoline. Before operation, gasoline must be
mixed with a good quality synthetic 2-cycle
air-cooled engine oil designed to be mixed at a
ratio of 40:1. Poulan/Weed Eater brand
synthetic oil is recommended. Mix gasoline and
oil at a ratio of 40:1. A 40:1 ratio is obtained by
mixing 3.2 ounces (95 ml) of oil with 1 gallon (4
liters) of unleaded gasoline. DO NOT USE
automotive oil or boat oil. These oils will cause
engine damage. When mixing fuel, follow
instructions printed on container. Once oil is
added to gasoline, shake container momentarily
to assure that the fuel is thoroughly mixed.
Always read and follow the safety rules relating
to fuel before fueling your unit.
IMPORTANT
Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads to
separation and formation of acids during stor-
age. Acidic gas can damage the fuel system
of an engine while in storage.
