8
CLEAN AIR FILTER
A dirty air filter decreases the life and perfor-
mance of the engine and increases fuel con-
sumption and harmful emissions.
Always clean your air filter after 5 tanks of fuel
or 5 hours of operation, whichever comes
first. Clean more frequently in dusty condi-
tions. It is advisable to replace your air filter
with a new one after every 50 hours of opera-
tion, or annually, whichever comes first.
To clean filter:

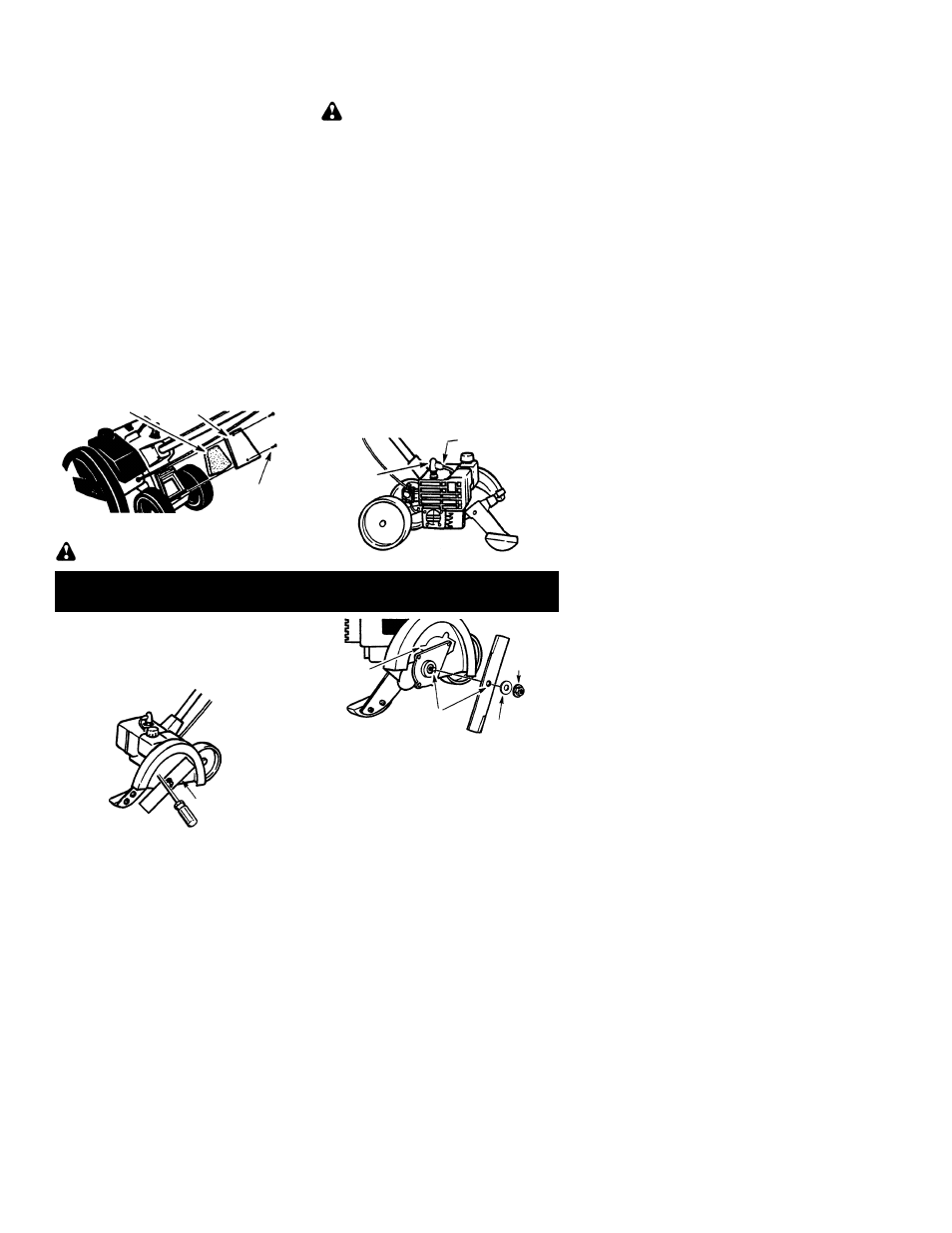

1. Remove the two screws and the air filter
cover from the engine.
2. Remove air filter.
NOTE: Do not clean the air filter with gaso-
line or other flammable solvent to avoid creat-
ing a fire hazard or producing harmful evapo-
rative emissions.
3. Wash the filter in soap and water.
4. Allow filter to dry.
5. Add 4 or 5 drops of oil to the filter.
NOTE: Do not soak air filter with oil.
6. Squeeze the air filter to distribute oil.
7. Reinstall air filter in housing.
8. Reinstall air filter cover.
CAUTION: Make sure air filter is fitted into
the corners of the housing to keep dust from
entering engine and causing engine damage.
Air Filter Cover
Cover
Screws
BLADE MAINTENANCE
WARNING: The blade will continue
to spin after the engine stops or after the
throttle trigger has been released. Make sure
the blade has stopped coasting and discon-
nect the spark plug before performing work on
the blade.
WARNING: Wear protective gloves
when handling or performing maintenance on
the blade to help avoid injury.
Always replace a blade that is bent, warped,
cracked, broken, or damaged in any other
way. Never attempt to straighten and reuse a
damaged blade. Use only specified replace-
ment blade.
S
The blade is reversible. When the cutting
edge on one side becomes worn, turn the
blade over.
S Check blade for flatness periodically. Lay
the blade on a flat surface to inspect for flat-
ness. Throw away a blade that is not flat .
REPLACE SPARK PLUG
The spark plug should be replaced each year
to ensure the engine starts easier and runs
better. Set spark plug gap at 0.025 inches.
Ignition timing is fixed, nonadjustable.
1. Twist then pull off the spark plug boot.
2. Remove and discard the spark plug.
3. Replace with Champion RCJ--6Y spark
plug and tighten securely with a wrench.
4. Reinstall the spark plug boot.
Spark Plug Boot
Spark Plug
SERVICE AND ADJUSTMENTS
BLADE REPLACEMENT
1. To remove the blade, insert a screwdriver
into the hole in the gearbox; then, remove
the nut, washer, and blade from the blade
shaft.
Blade
2. Align the flat area of the blade opening with
the flat side of the shaft. Place the new
blade on the shaft.
Nut
Washer
Flat sides
Hole
3. Install the washer and nut; turn nut coun-
terclockwise on the blade shaft.
4. Bind blade by inserting a screwdriver in to
the hole in the gearbox; then, firmly tighten
nut with a wrench.
CARBURETOR ADJUSTMENTS
Your carburetor is equipped with limiter caps.
Damage will occur if you turn the needles be-
yond the limiter caps. Carburetor adjustment
is a complicated task. We recommend that
you take your unit to an authorized authorized
service dealer.
