Secure side burner
Stand to the right side of the barbecue. Slightly pull back
both side burner locks. Slide the side burner toward the
control panel. The locks will snap into the slots in the front
and back of the side burner. Figure 29.
ƽ
CAUTION: Make sure both locks have snapped
into place.
Step 24
Install swing table
You will need: swing table end bracket, two 10-24 hex
nuts, two 10-24 x 1 3/4 inch machine screws, slide bar
assembly, swing table, four nylon washers, screwdriver
and pliers.
Allow the slide bar to hang down. Push the support rod
into the lower support bracket. Figure 30 (a). Swing the
rod up so you can slide the rod all the way inside the
locking tab. Figure 30 (b). The rod should swing freely
inside the locking tab. Figure 30 (c).

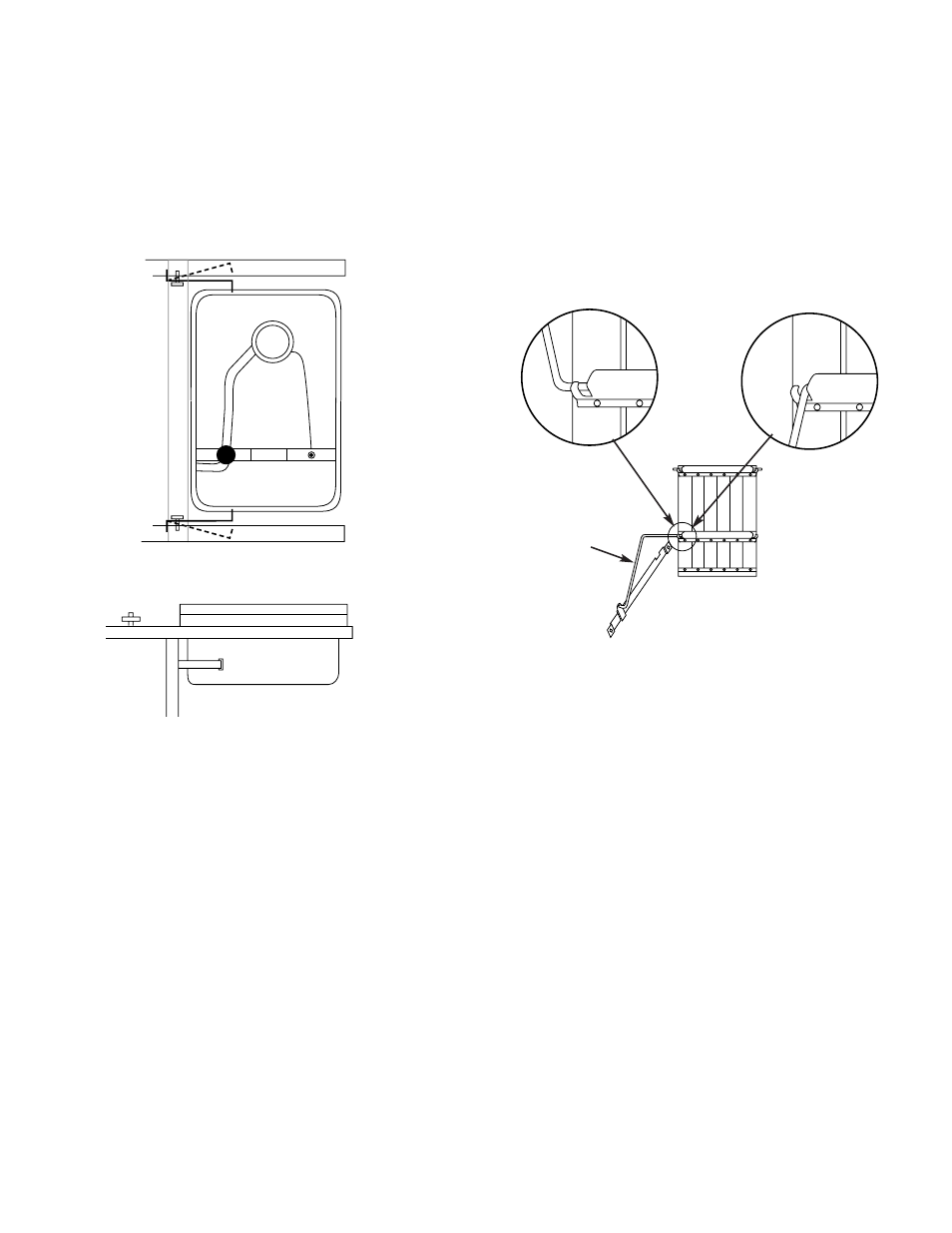

Figure 30
(a)
(b)
(c)
Figure 29
View from top
Side view
Support rod
