SERVICE AND ADJUSTMENTS

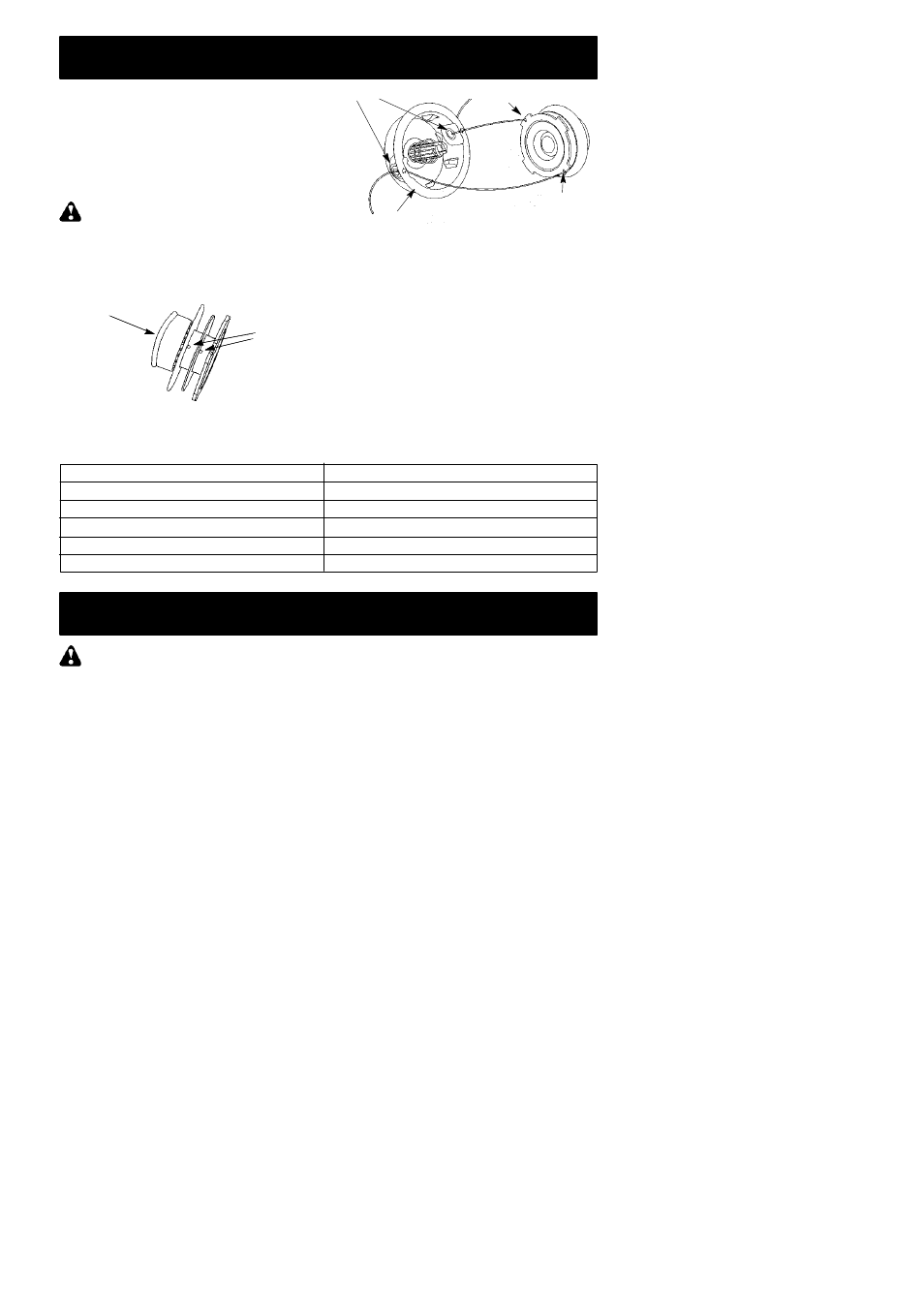

REPLACING THE LINE
1. Remove spool by firmly pulling on tap
button.
2. Clean entire surface of hub and spool.
3. Replace with a pre-wound spool, or cut
two lengths of 12-1/2 feet (3,8 meters) of
0.080″ (2 mm) diameter WEED EATER
brand line.
WARNING:
Never use wire, rope,
string, etc., which can break off and become a
dangerous missile.
4. Insert ends of the lines about 1/2 inch
(1 cm) into the small holes on the inside
of spool.
Small
Holes
Spool
Hub
Line in Notch
Line in Notch
Line exit holes
5. Wind the line evenly and tightly onto the
spool. Wind in the direction of the ar-
rows found on the spool.
6. Push the lines into the notches, leaving
3 to 5 inches (7 -- 12 cm) unwound.
7. Insert the lines into the the exit holes in
the hub as shown in the illustration.
8. Align the notches with the line exit
holes.
9. Push spool into hub until it snaps into
place.
10. Pull the lines extending outside of the
hub to release the lines from the notch-
es.
USER REPLACEABLE SERVICE PARTS
Assist Handle 530057546
Bolt Carriage, 1/4-20 530015786
Wing Nut 530016152
Spool with 0.080″ Trimmer Line 530095846
Shield Assembly 545014101
REPLACEMENT PART PART NUMBER
STORAGE
WARNING:
Perform the following
steps after each use.
S
Stop the unit and disconnect the power
source when not in use.
S Carry the unit with motor stopped.
S Allow motor to cool before storing or trans-
porting.
S Store unit and extension cord indoors in a
high, dry place out of the reach of children.
Store unit unplugged.
S Store unit with all guards in place and position
unit so that any sharp object cannot acciden-
tally cause injury.
SEASONAL STORAGE
Prepare your unit for storage at the end of the
season or if it will not be used for 30 days or
more.
If your unit is to be stored for a period of time:
S
Clean it thoroughly before lengthy storage.
S Store in a clean dry area.
S Lightly oil external metal surfaces and guide
bar.
S Oil the chain and wrap it in heavy paper or
cloth.
