PART LIST and
R0996A

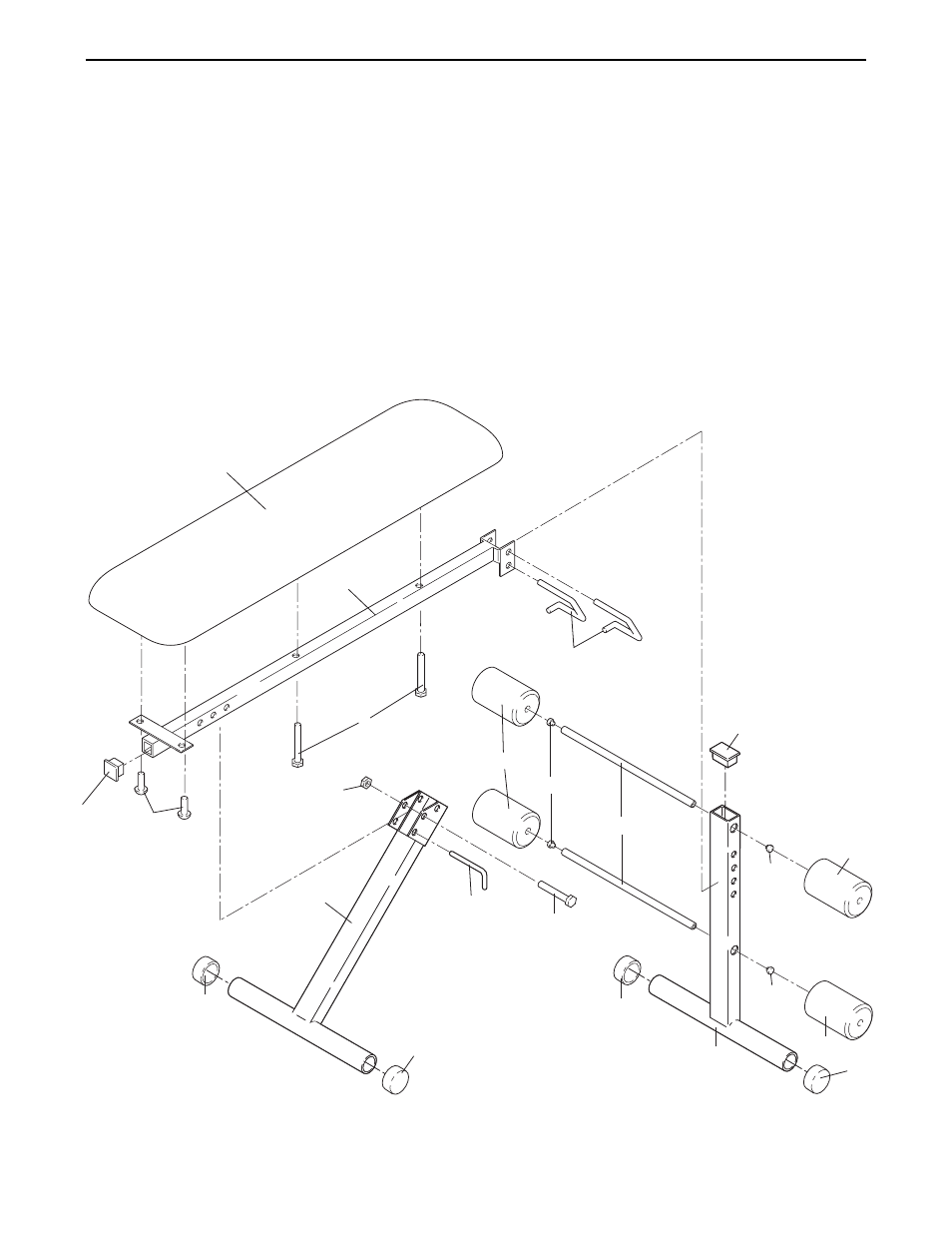

EXPLODED DRAWING—Model No. 831.150460
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
Key Part
No. Qty. No. Description
1 1 132209 Frame
2 1 132504 Pivot Leg
3 1 132506 Adjustment Leg
4 2 111855 M6 x 48mm Bolt
5 2 132137 M6 x 16mm Bolt
6 4 103805 Foam Pad
7 4 112402 3/4” Round Inner Cap
8 2 132142 38mm x 50mm Inner Cap
9 4 100290 50mm Round Outer Cap
Key Part
No. Qty. No. Description
10 2 132148 Pad Tube
11 2 132505 Lock Pin
12 1 132210 Bench
13 1 012033 M10 Nylon Locknut
14 1 111084 M10 x 68mm Bolt
15 1 105977 “L” Pin
16 1 103833 38mm x 38mm Inner Cap
# 1 132207 User’s Manual
# 1 132208 Exercise Poster
