11. To reinstall the burners, reverse steps 3 through 10.
ƽ
CAUTION: The burner openings must be positioned
properly over the valve orifices. Figure 15(a).
Check proper assembly before fastening manifold in
place. Figure 15 (b).

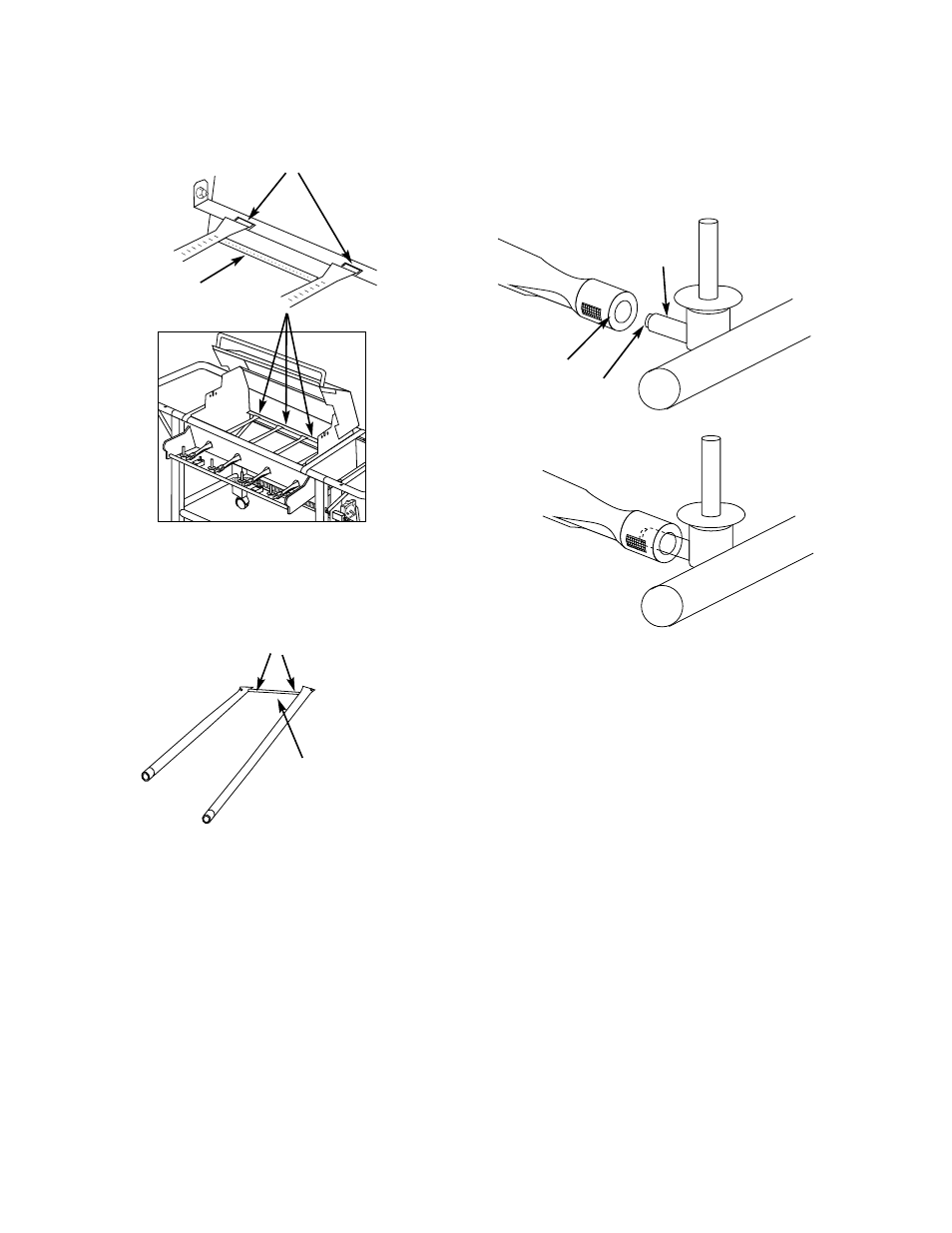

Figure 15
(a)
(b)
Valve
Burner
MAINTENANCE
9. Slide the burner assembly from each Heat Zone. The
left and right burners are connected by the Crossover
tube. Figure 13 (a).
Figure 13
Crossover tube
Pull out of here
10. Lift and twist the burner assembly slightly to separate
the crossover tube from the burners. Remove the
burners from the cooking box. Figure 14.
Figure 14
Separate here
Crossover tube
Orifice
(a)
