MAINTENANCE
ENSIGN 98635 03/26/04
4-3
Only qualified
maintenance
personnel are to
perform the following repairs.
SOLUTION PUMP REPLACEMENT
1. Turn off all switches and unplug the
machine.
2. Remove recovery tank.
3. Remove solution hoses from fittings in pump.
4. Remove the screws that fasten the pump to
the frame.
5. Reverse process to install pump.
Valve Asm
84162
Diaphragm
29207
Pump Head
65188

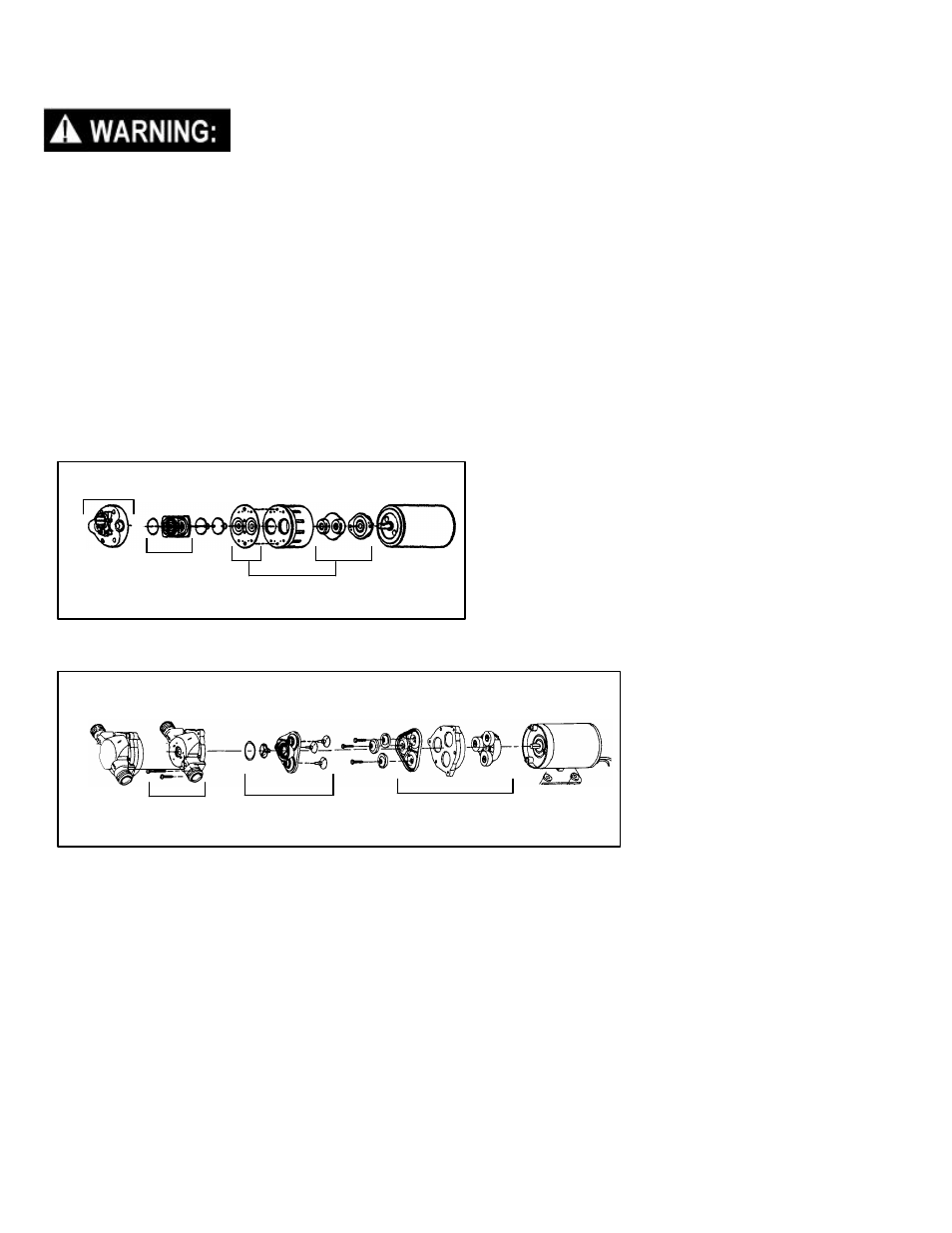

PUMP (250-63) REPLACEMENT KIT
Pump Head
65235
Valve Asm
84191
Diaphragm
29263
PUMP (65233) REPLACEMENT KIT
