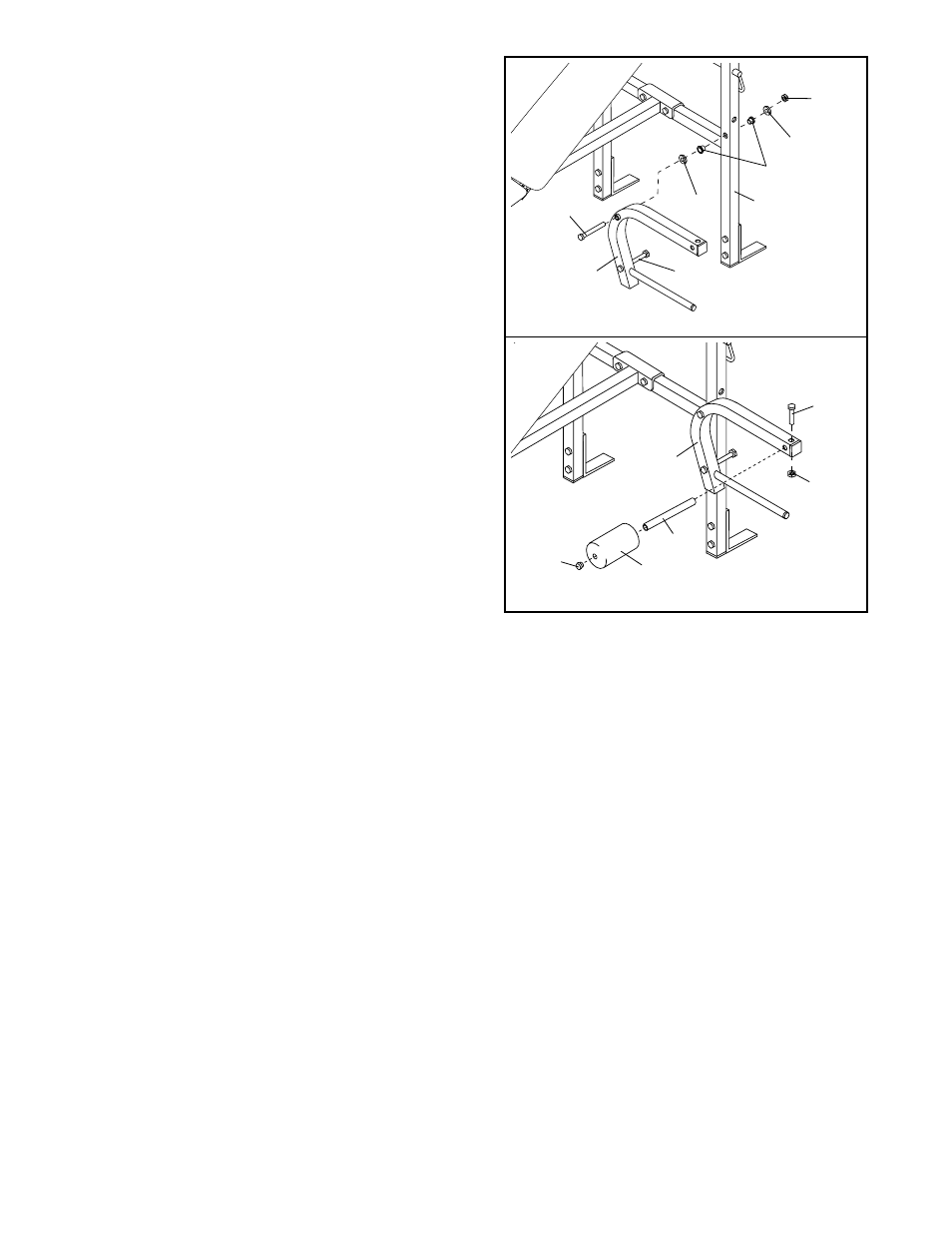

11. Press two 3/8” Plastic Sleeves (37) into the “H”-
Frame (1) as shown.
Lubricate a 3/8” x 5” Bolt (8). Insert the Bolt through
the hole in the indicated Fly Arm (42). Slide a 3/8”
Washer (9) onto the Bolt. Insert the Bolt through the
“H”-Frame and the Plastic Sleeves (37). Make sure
that the 1/2” x 3” Plastic Spacer (36) is resting
against the outside of the “H”-Frame. Slide
another 3/8” Washer onto the Bolt and tighten a
3/8” Nylon Locknut (43) onto it.
Repeat this step to assemble the other Fly Arm (not
shown).
12. Attach a 9” Pad Tube (40) to one of the Fly Arms
(42) with a 1/4” x 2” Screw (33) and a 1/4” Nylon
Locknut (28). Slide a Foam Pad (23) onto the Pad
Tube.
Press a 3/4” Round Inner Cap (26) into the indicat-
ed end of the 9” Pad Tube (40).
Repeat this step to assemble the other Fly Arm (not
shown).
