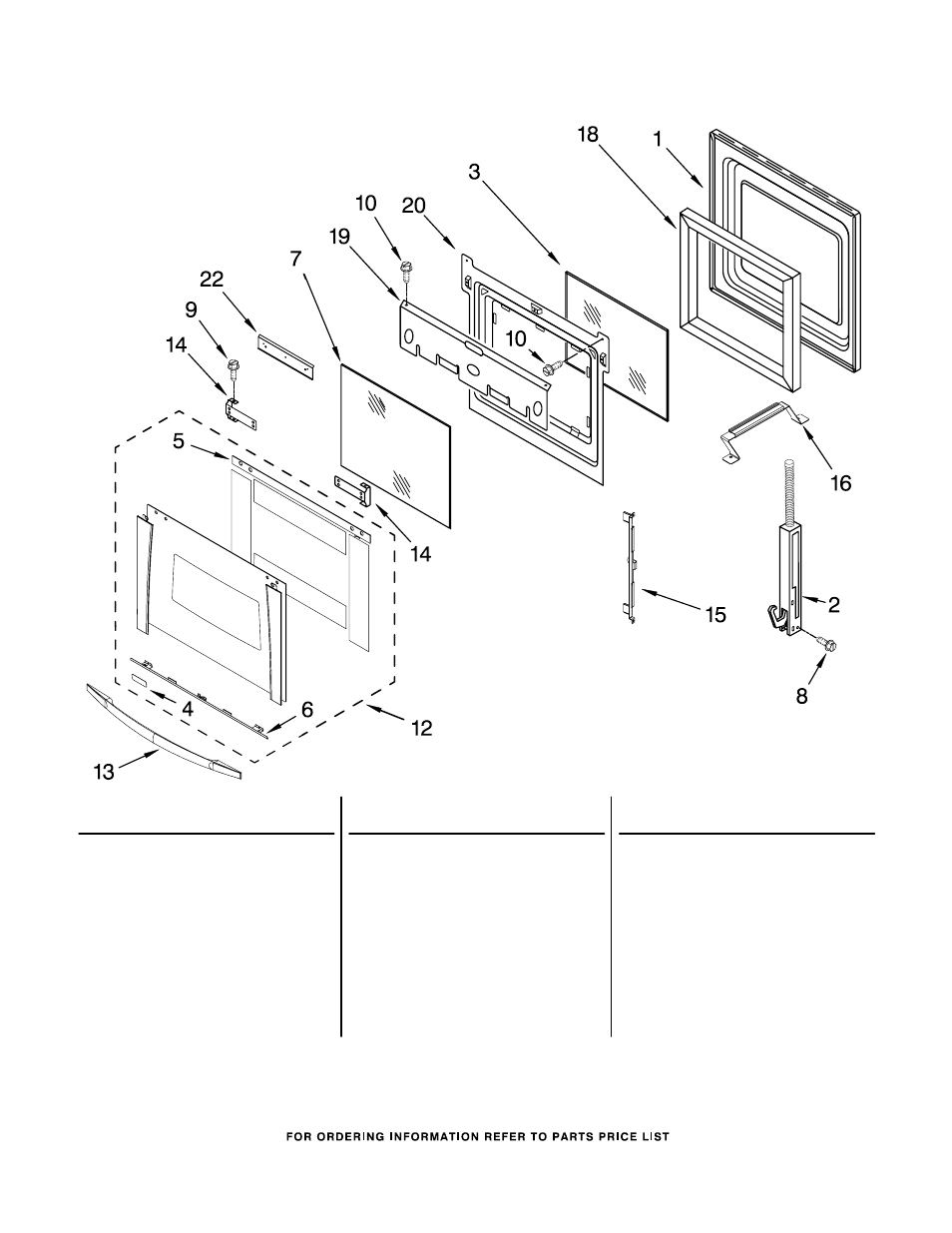

OVEN DOOR PARTS
5
For Models:GBD307PRQ01, GBD307PRB01, GBD307PRS01, GBD307PRY01
(Designer White) (Black) (S.Steel) (U. Silver)
8186424
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
8303700 Door Liner
2
Hinge, Door
9760577 R.Hand (Yellow)
9760578 L.Hand (Yellow)
3
4449259 Glass, Inner
4
8303810 Nameplate
5
8303878 Seal − Door
6
8302947 Trim, Bottom
7
9759225 Glass, Inner
8
4449743 Screw
9
4451040 Screw
10
4449809 Screw
12
Door Glass Assy
(Upper)
8303306 White
8303300 Black
8303288 S.Steel
8304177 Silver
(Lower)
8303307 White
8303301 Black
8303289 S.Steel
8304178 Silver
13
Door Handle
8302814 White
8302813 Black
8303164 S.Steel
14
8303167 Bracket, Handle
15
9759229 Bracket(2nd Glass)
16
9759230 Bracket(3rd Glass)
18
4451722 Insulation, door
19
4457103 Shield, Heat
20
4457132 Retainer, Glass
22
4457114 Shield, Heat
